ASSEMBLE THE WALL SLEEVE:

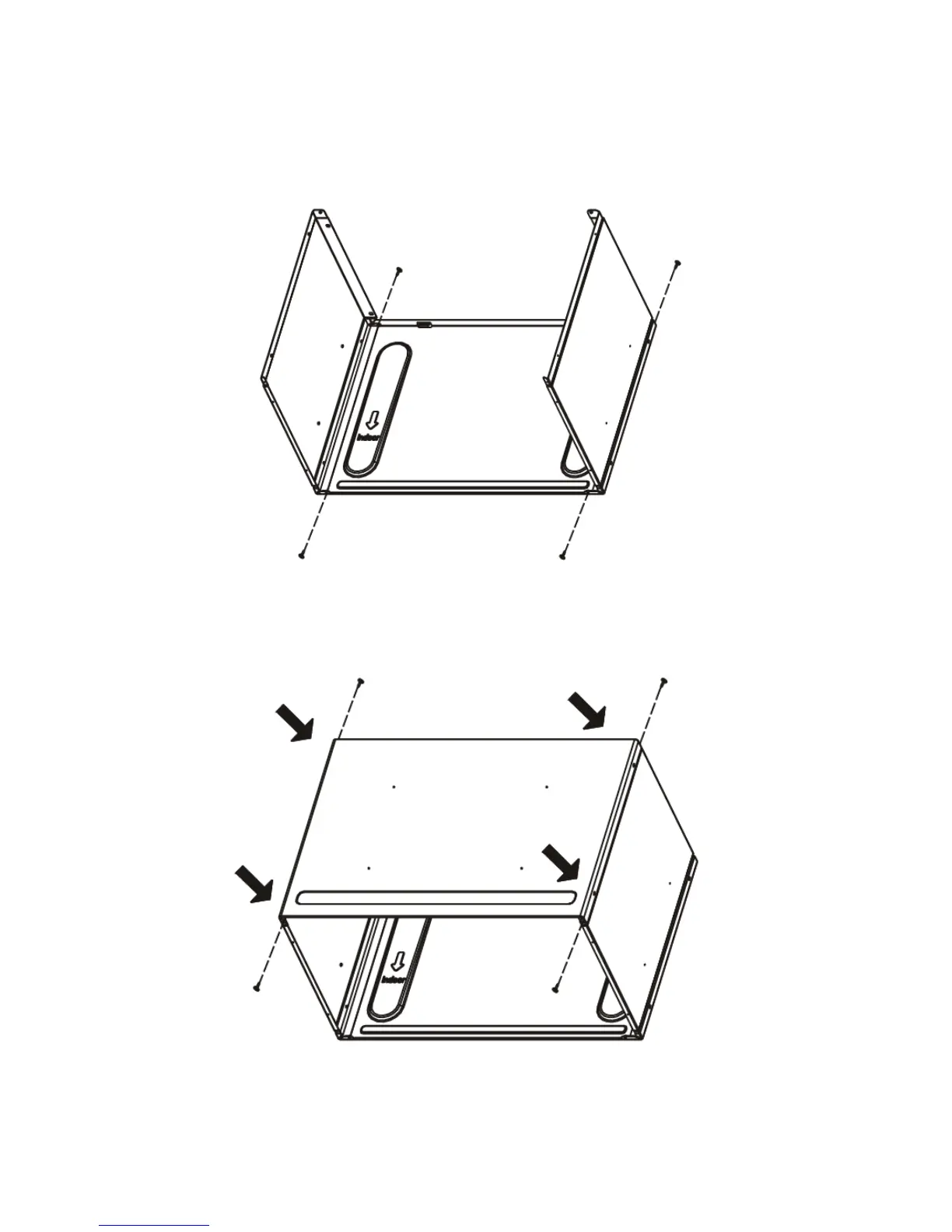

1. Use four (4) screws to fasten the side panels to the bottom panel as shown below.

NOTE: The arrows on the bottom panel point to the interior side of the wall sleeve.

2. Fasten the top panel with four (4) screws as shown below.
