S748-772 Instructions Manual | 9 Electrical Installation
9.12.17 SSI absolute Encoder (X1)

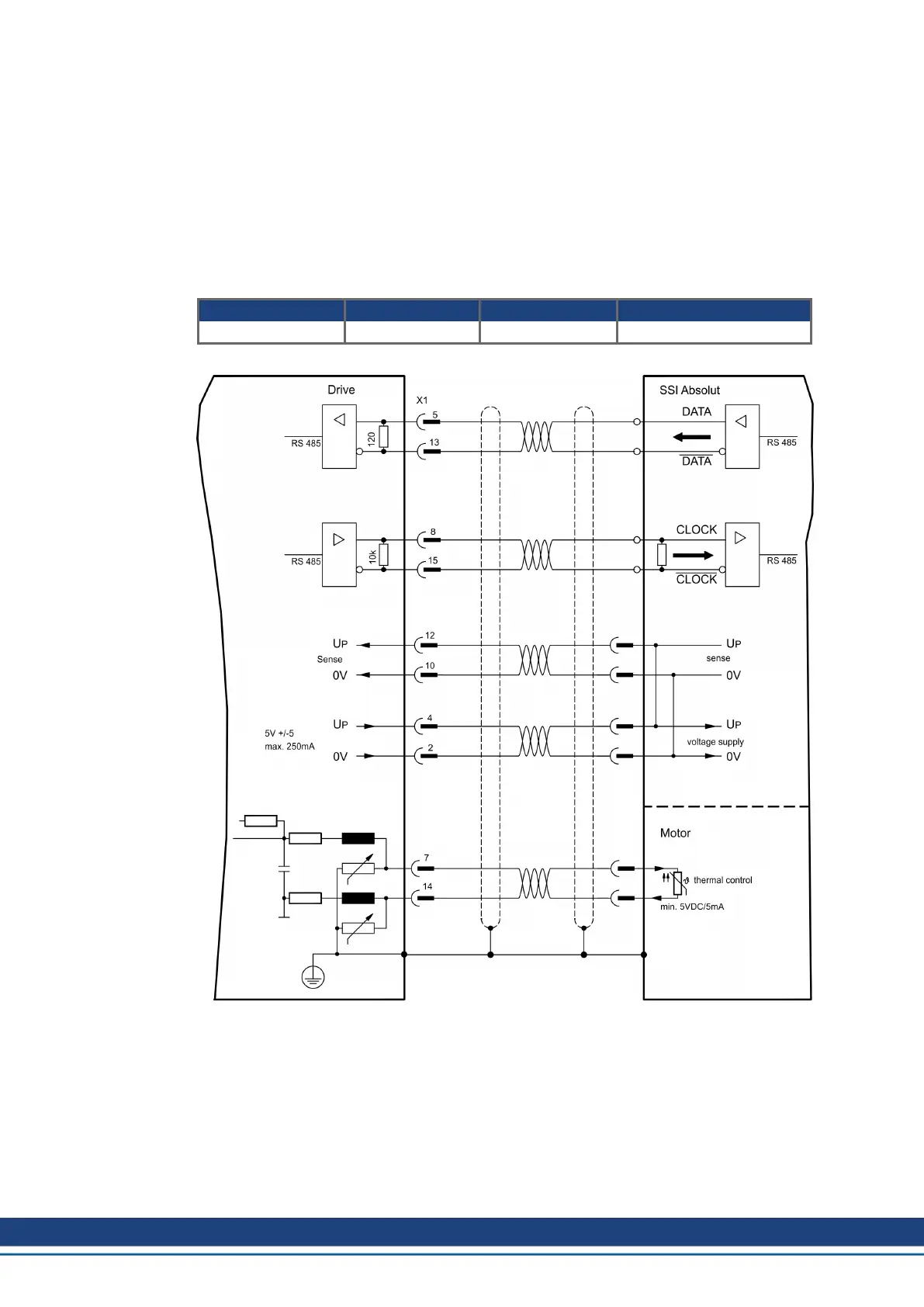

Wiring of a synchronous serial absolute-encoder as a feedback system (primary or sec-
ondary, (➜ # 74)). The signal sequence can be read in Gray code or in Binary (standard)
code. The thermal control in the motor is connected to X1 and evaluated there. If cable
lengths of more than 50 m are planned, please consult our customer service.
Frequency limit: 1.5MHz
Resolution/turn: max. 16 Bit
Turns: max. 16 Bit
Anschluss eines synchron seriellen Multiturn-Absolutgebers als Rückführeinheit (primär oder
Gebertyp FBTYPE EXTPOS GEARMODE
SSI 25 25 25
Versorgungsspannung des Gebers auf X1 einschalten: ENCVON auf 1 setzen.
