Kolver 130206/A - Page 27

Vers. 190521
PL..CA/FN2

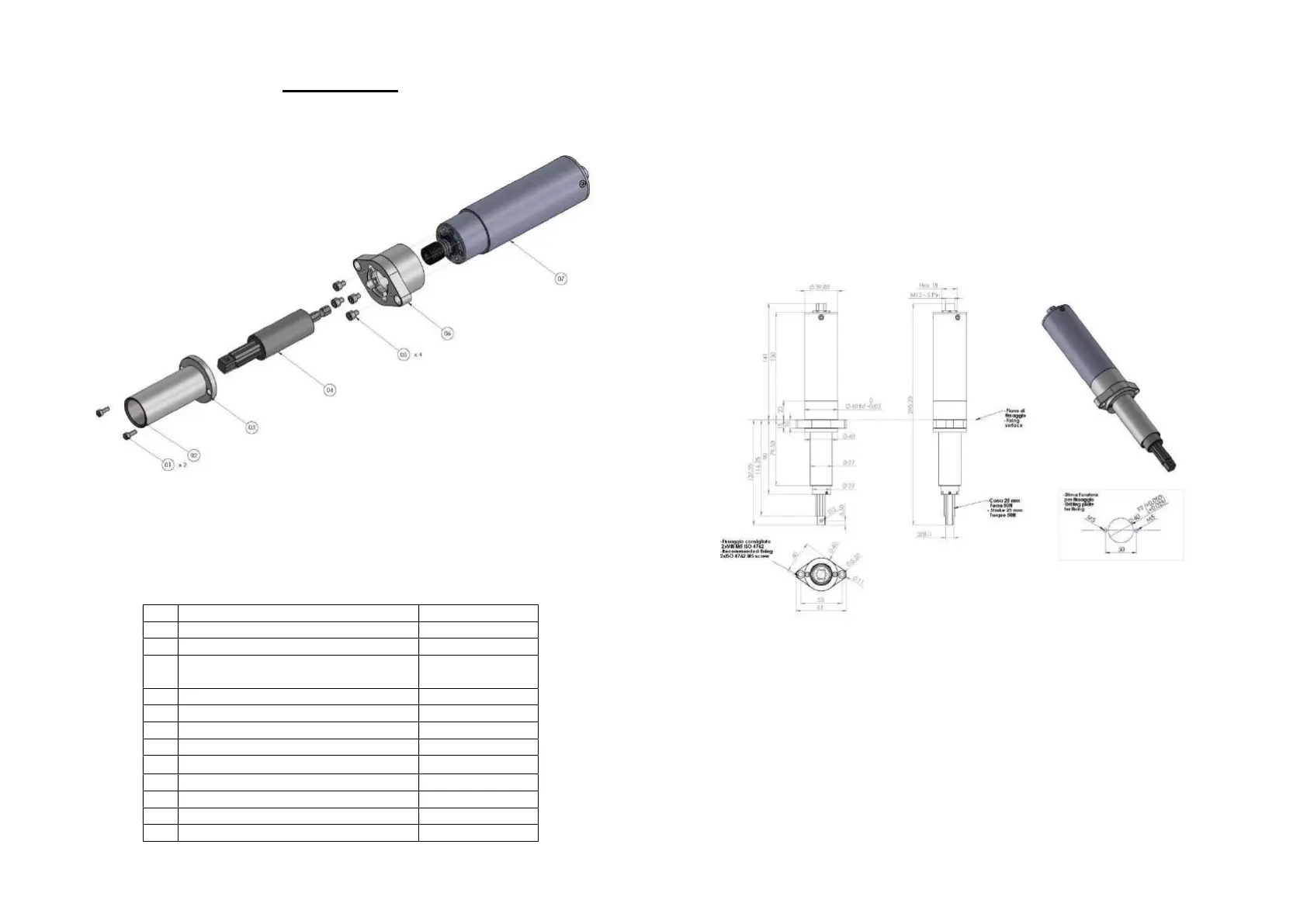

ESPLOSO/ EXPLODED VIEW
PARTI DI RICAMBIO/ SPARE PARTS
RIF DESCRIZIONE/ DESCRIPTION COD.
1
Vite/
Screw
M3x8 (2)
231508/ZN
2
Permaglide
800317/1
3
Bussola guida telescopica/ Telescopic
drive bush
234548
4
Compensatore/
Axial
compensator
800320
5
Vite/
Screw
M4x5 (4)
231502
6
Flangia supporto/
Support plate
234547
Cavo/
Cable
5 pin 2,5 mt.
200063
7
Avvitatore/
Screwdriver
:
PLUTO3CA
130303
PLUTO6CA
133206
PLUTO10CA/N
133211/N
PLUTO15CA/N
133216/N
Vers. 190521
INGOMBRO/ DRAWING
