Kolver 130206/A - Page 29

Vers. 190521
PL35CA/FN

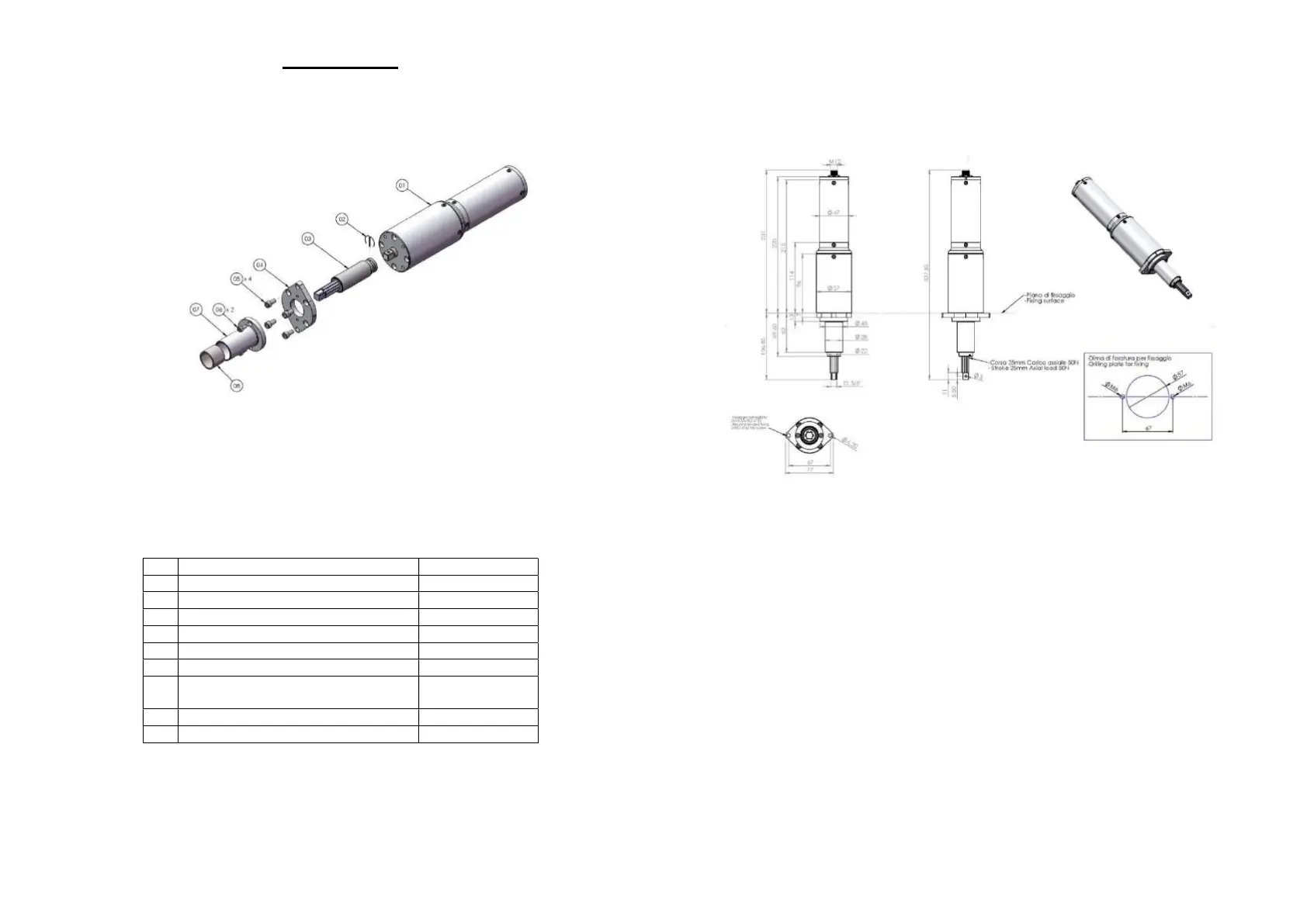

ESPLOSO/ EXPLODED VIEW
PARTI DI RICAMBIO/ SPARE PARTS
RIF DESCRIZIONE/ DESCRIPTION COD.
1
PLUTO35
CA
133236
2
Molla di sicurezza/
Safety spring
FE
-
1301C
3
Compensatore/
Axial compensator
800321
4
Flangia supporto/
Support plate
234510/
3
0/3
5
Vite/
Screw
M5x10 (4
)
231503
6
Vite/
Screw
M4x8 (2
)
231505
7
Bussola guida telescopica/ Telescopic
drive bush
800302/20
8
Permaglide
800317/1
Cavo/
Cable
5 pin 2,5 mt.
200063
Vers. 190521
INGOMBRO/ DRAWING
