PLUTO35CA:

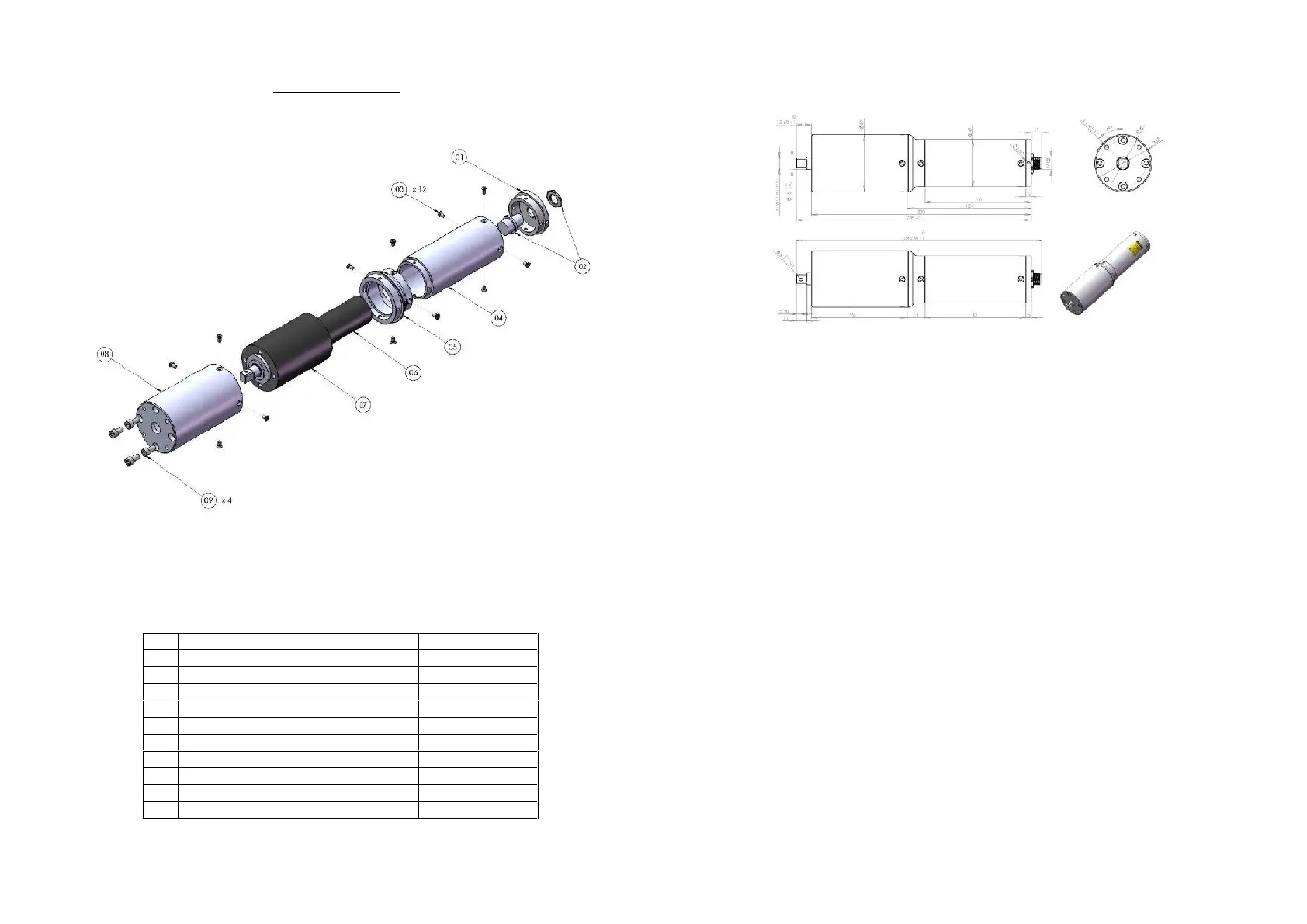

ESPLOSO/ EXPLODED VIEW
PARTI DI RICAMBIO/ SPARE PARTS
RIF
DESCRIZIONE/ DESCRIPTION
COD.
1
Coperchio/ Cap
234605
2
Connettore/ Connector M 5 pin
201666
3
Vite/ Screw M3x6 Torx (12)
801002
4
Cannotto alluminio/ Aluminium body
234603
5
Raccordo/ Junction
234702
6
Motore/ Motor
231609/30
7
Riduttore/ Reduction gears
231610/30
8
Cannotto alluminio/ Aluminium body
234701
9
Vite/ Screw M5x10 (4)
231503
Cavo/ Cable 5 pin 2,5 mt.
200063
INGOMBRO/ DRAWING
