PLUTO50CA/SR:

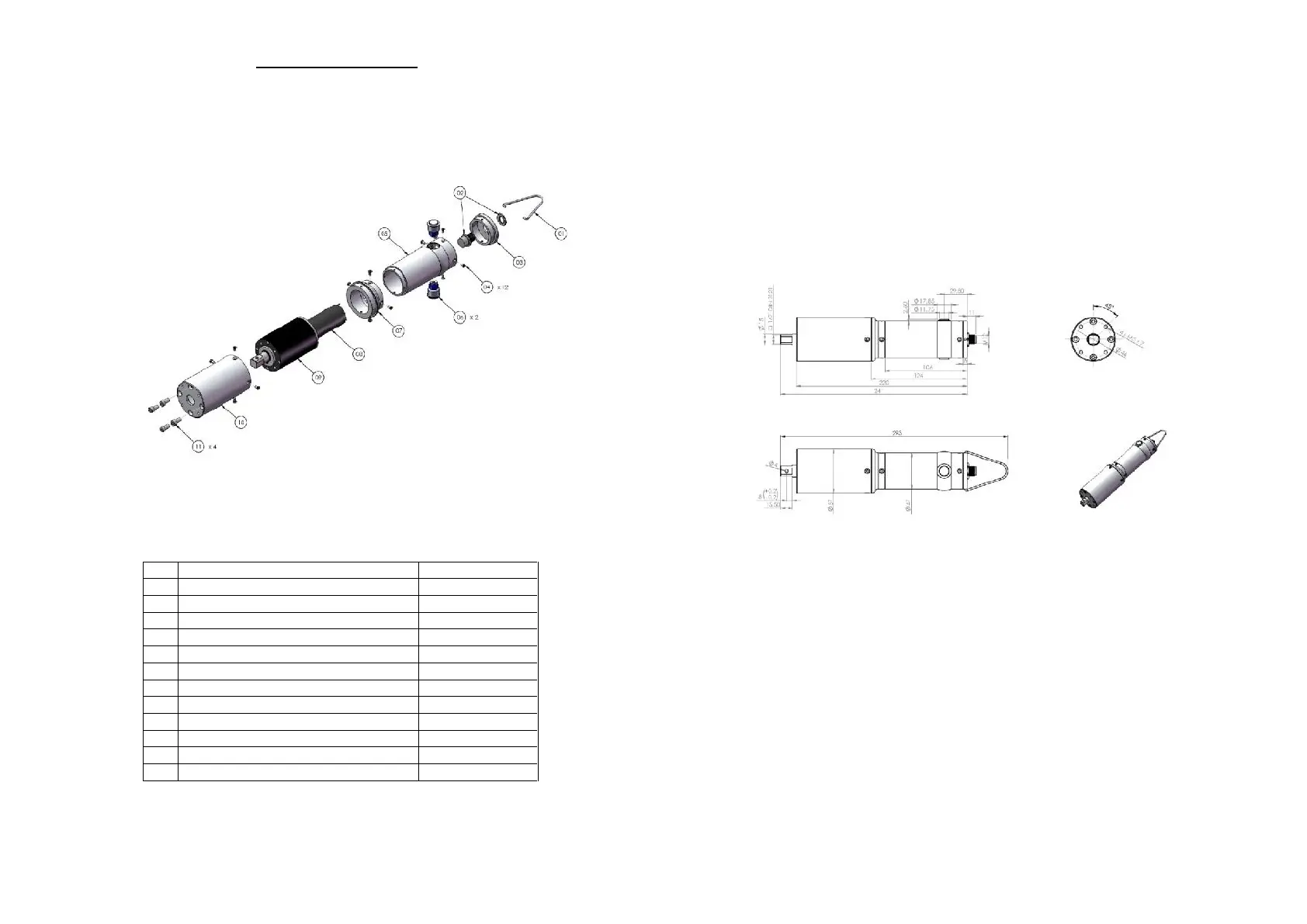

ESPLOSO/ EXPLODED VIEW
RIF
DESCRIZIONE/ DESCRIPTION
COD.
1
Gancio/ Hook
200060
2
Connettore/ Connector M 5 pin
201666
3
Coperchio/ Cap
234605
4
Vite/ Screw M3x6 Torx (12)
801002
5
Cannotto alluminio/ Aluminium body
234602
6
Tasto/ Button (2)
800313
7
Raccordo/ Junction
234702
8
Motore/ Motor
231609/50
9
Riduttore/ Reduction gears
231610/50
10
Cannotto alluminio/ Aluminium body
234801
11
Vite/ Screw M5x10 (4)
231503
Cavo/ Cable 5 pin 2,5 mt.
200063
INGOMBRO/ DRAWING
