Kolver PLUTO 6D User Manual

EN
WARNING: To reduce the risk of injury, before using or servicing screwdriver, read and
understand the following information as well as separately provided safety instructions (item
code: 0MS000). The features and descriptions of our products are subject to change without
prior notice.
DECLARATION OF USE
Screwdriver (class I) suitable for industrial environment only. It shall be used for tightening.
No other use will be permitted. For professional use only.
DATA
Noise level: < 70 dB(A)
Vibration level: < 2.5 m/s²
Declaration of noise and vibration emission
These declared values were obtained by laboratory type testing in compliance with the stated
standards and are not adequate for use in risk assessments. Values measured in individual
work places may be higher than the declared values. The actual exposure values and risk of
harm experienced by an individual user are unique and depend upon the way the user works,
the work piece and the workstation design, as well as upon the exposure time and the
physical condition of the user. We, KOLVER, cannot be held liable for the consequences of
using the declared values, instead of values reflecting the actual exposure, in an individual
risk assessment in a work place situation over which we have no control.
OPERATING MODE
The screwdriver can be manual or used as fixed spindle on an automatic machine.
Manual screwdriver
 Fit the screwdriver with a suitable fastening accessory, then connect it to the
control unit.
 Hold the screwdriver by the handle and apply to the fastener to be tightened.
 Press the lever to start the screwdriver.
 The screwdriver stops when the preset torque is reached.
 For each second of operation, the motor needs to rest for 3 seconds.
 Failure to do so may result in motor overheating and damage.
 That will be considered as a misuse and the warranty will not be applied.
As the reaction increases in proportion to the tightening torque, make sure that the
screwdriver is in perfect working and the control unit is programmed correctly, to reduce the
risk of injury to the operator as a result of unexpected behaviour of the screwdriver.
Clutch adjustment
PLUTO clutch screwdrivers work in combination with th EDU2AE/FR control unit. which
acts as an AC to DC transformer and torque controller. The electronic control circuit cuts the
power supply to the motor as soon as the pre-set torque has been reached. An easy-to-use
scroll menu allows to select, set and/or adjust a number of parameters in a quick and easy
way to optimize the performance of each type of application (see the manual of the control
unit).

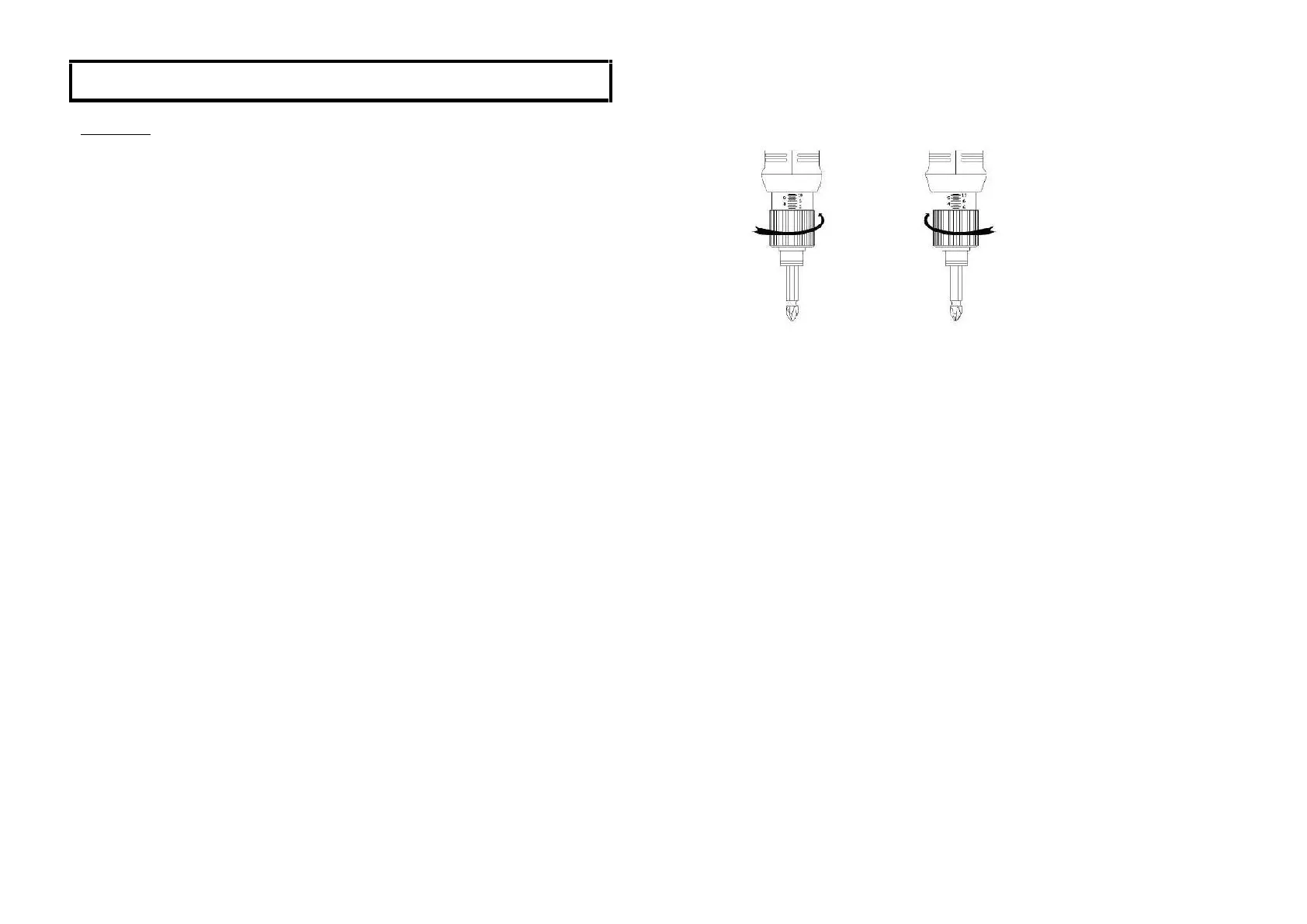

The torque value is adjusted by changing the compression of the clutch spring. The torque
can be increased by turning the nut clockwise and decreased by turning it anticlockwise.
To check the torque value we suggest the use of KOLVER K or miniK torque testers.
IMPORTANT: Continuous use over 80% of torque range is not recommended.
LUBRICATION
Do not grease too much gears or bearings; a thin coat shall be sufficient.
Grease after 300.000 cycles.
MAINTENANCE INSTRUCTIONS
Maintenance should be performed by qualified personnel only.
 Prior to any maintenance task: disconnect the screwdriver.
 When disassembling / reassembling the screwdriver, take the following
precautions:
- Check that the controller is switched off.
- Disconnect the cable.
According to Directive 2002/96/CE concerning Waste Electrical and Electronic Equipment
(WEEE), this product must be recycled.
