PLUTO20CA:

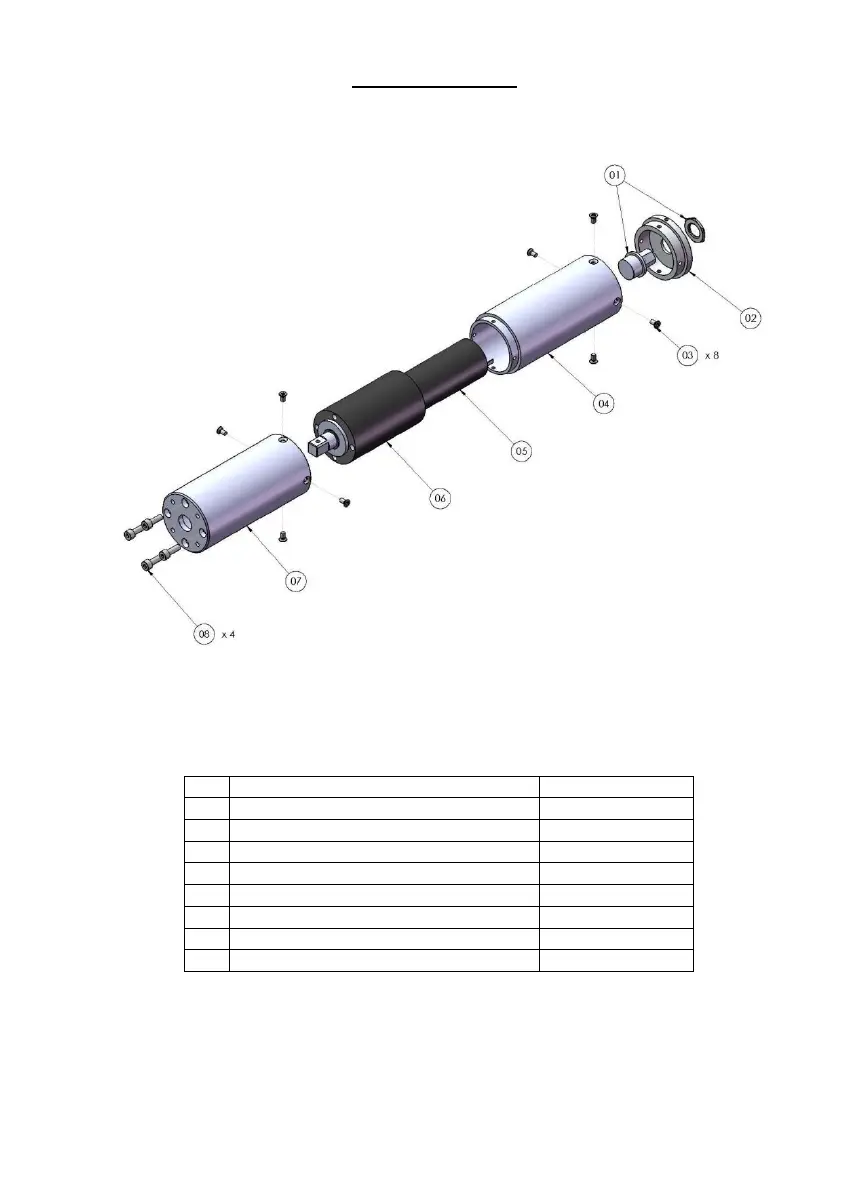

ESPLOSO/ EXPLODED VIEW
PARTI DI RICAMBIO/ SPARE PARTS
RIF
DESCRIZIONE/ DESCRIPTION
COD.
1
Connettore/ Connector M 5 pin
201666
2
Coperchio/ Cap
234605
3
Vite/ Screw M3x6 Torx (8)
801002
4
Cannotto alluminio/ Aluminium body
234603
5
Motore/ Motor
231609/20
6
Riduttore/ Reduction gears
231610/20
7
Cannotto alluminio/ Aluminium body
234601
8
Vite/ Screw M4x12 (4)
231507
