FINAL DRIVE REASSEMBLY
7F - 18

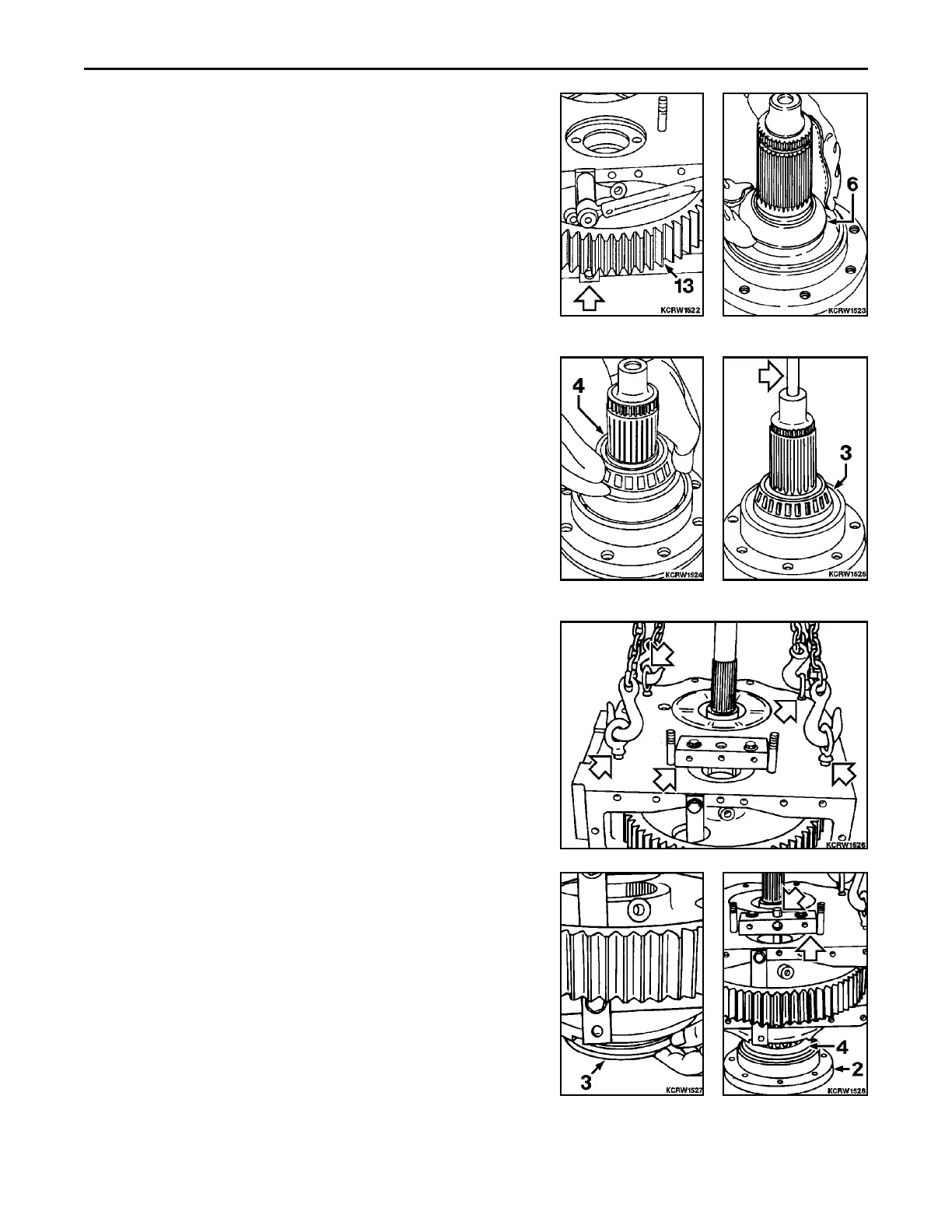

9. Install sprocket carrier shaft inner (5) and outer (4) bearing cups
in housing and using a driver, bottom cups. With lifting strap,
position sprocket drive gear (13) in housing with retainer screw
hole facing up. Install gear retaining tool DR10-820 to housing
and torque bolts to 95 NCm (70 lbf ft).
10. Heat locating spacer (6) to 135EC (275EF) and assemble to
sprocket carrier shaft. With drift and hammer, tap to seat against
shaft face.
11. Heat sprocket carrier outer bearing (4) to 135EC (275EF) for 45
minutes. Install on shaft against locating spacer. With a drift and
hammer, tap inner bearing race to seat.
12. Assemble alignment rod DR10-821 in end of sprocket carrier
shaft. Install shaft oil seal (3). Refer to METAL TYPE FACE
SEALS in this section.
13. Position four eye bolts in housing and install alignment bridge
DR10-821.
14. Raise housing and install oil seal half (3) in housing. Refer to
METAL TYPE FACE SEALS in this section.
15. Apply oil to outer bearing (4) and leading edge of carrier shaft
spline. Lower housing over sprocket carrier shaft (2) allowing
alignment pin to extend through hole in alignment bar. Lower
housing to align shaft groove for retainer screw and nut.
