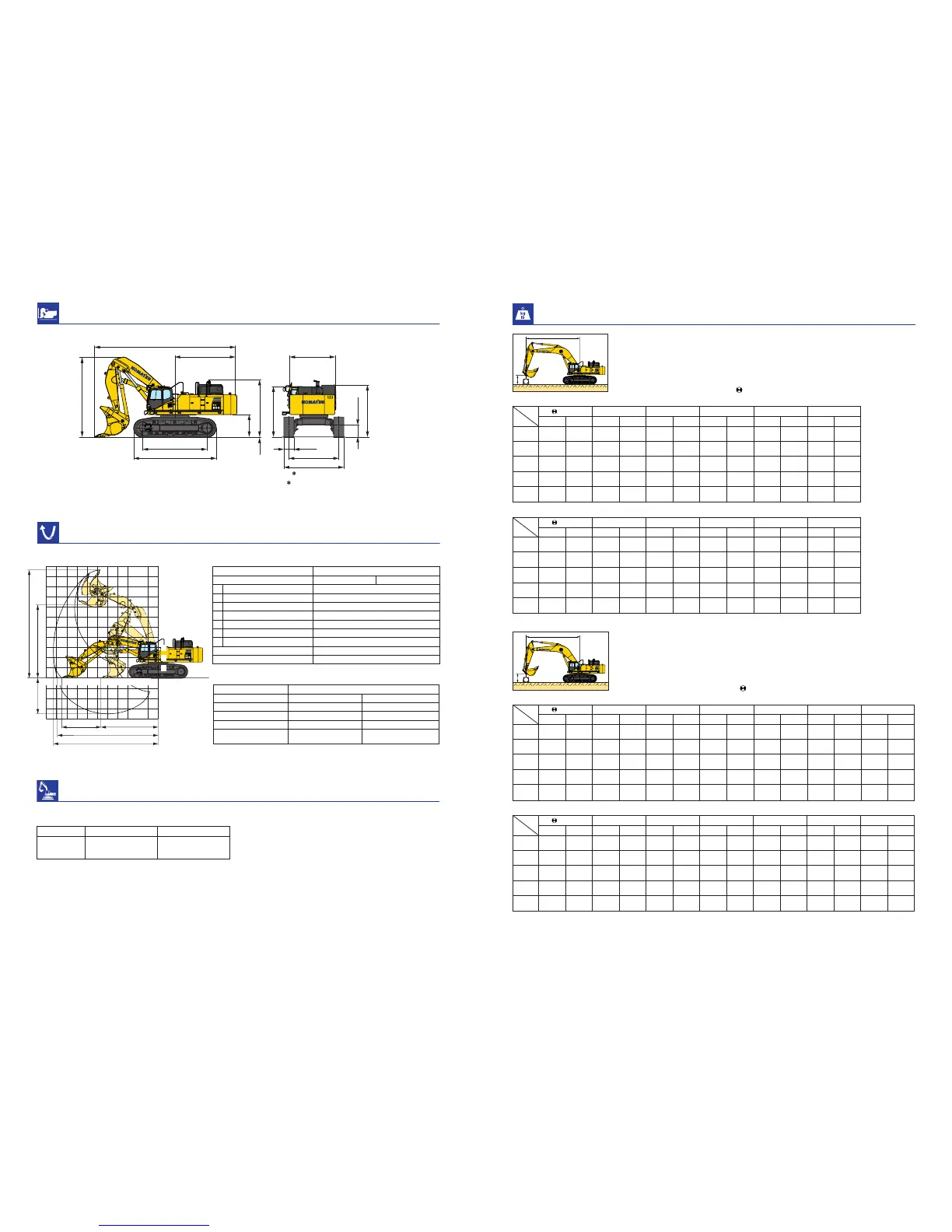

Komatsu PC800 - Loading Shovel Working Range; Lifting Capacity Charts; PC800-8 Lifting Capacity; PC800 SE-8 Lifting Capacity

LOADING SHOVEL OPERATING WEIGHT
Operating weight, including 4600 mm 15'1" boom, 3400 mm 11'2" arm, 4.5 m
3
5.9 yd
3
heaped bucket, operator, lubricants, coolant, full fuel tank
and standard equipment.
5810 19’11"
4500 14’9"
50 2.0"
610 24"
3500 11’6"
4110 13’6"
840 2’9"
3195 10’6"
3560 11’8"
1560 5’1"
3670 12’
4000 13’1"
4345 14’3"
R=4400 14’5"
5640 18’6"
9965 32’8"
When retracted
3390 11’1"
Type of bucket Bottom dump
Capacity–heaped 4.5 m
3
5.9 yd
3
5.1 m
3
6.7 yd
3
A Max. cutting height 10635 mm 34'11"
B Max. dumping height 7180 mm 23'7"
C Max. digging depth 3535 mm 11'7"
D Max. digging reach 10305 mm 33'10"
E Max. digging reach at ground level 9920 mm 32'7"
F Level crowding distance 3875 mm 12'9"
G Min. crowd distance 5620 mm 18'5"
Bucket digging force 477 kN 48600 kg 107,140 lb
Arm crowd force 404 kN 41200 kg 90,830 lb
Working Range
Type of bucket Bottom dump
Capacity–heaped 4.5 m
3
5.9 yd
3
5.1 m
3
6.7 yd
3
Width 2320 mm 91.3" 2670 mm 105.1"
Weight 5700 kg 12,570 lb 7360 kg 16,230 lb
No. of bucket teeth 6 6
Recommended uses
General-purpose Light-duty
digging and loading excavation and loading
Bucket Selection
FG
E
D
B
C
A
G.L.
2
1
3
0
4
5
6
7
8
9
10
11
1
2
3
4
1 2 3 4 5 6 7 8 91011
Shoes Operating Weight Ground Pressure
610 mm 77000 kg 125 kPa/1.27 kg/cm
2
24" 169,750 lb 18.1 PSI
14
15
LIFTING CAPACITY
LOADING SHOVEL WORKING RANGE AND BUCKET SELECTION
LOADING SHOVEL DIMENSIONS
A Maximum 12.0 m 39' 9.0 m 29' 7.5 m 24' 6.0 m 19' 4.5 m 14' 3.0 m 9'
B CfCsCfCsCfCsCfCsCfCsCfCsCfCs
6.0 m *7250 7100 *8900 7700 *12300 *12300
19' *16,000 15,600 *19,700 17,000 *27,100 *27,100
3.0 m 8050 6050 9300 7050 *15350 12400 *18600 16900 *24300 *24300
9' 17,800 13,300 20,500 15,600 *33,800 27,300 *41,000 37,300 *53,500 *53,500
0 m 7950 5900 8650 6450 14250 10850 19150 14550 27650 20700 *16200 *16200
0' 17,500 13,000 19,000 14,200 31,400 23,900 42,300 32,100 61,000 45,600 *35,800 *35,800
–3.0 m 9100 6750 13500 10150 18150 13650 26600 19700 *25900 *25900 *17650 *17650
–9' 20,100 14,900 29,700 22,300 40,100 30,100 58,600 43,400 *57,100 *57,100 *39,000 *39,000
–6.0 m 13200 9950 13750 10400 18500 13950 *25050 20300 *32750 *32750 *31600 *31600
–19' 29,100 22,000 30,400 23,000 40,800 30,800 *55,200 44,700 *72,200 *72,200 *69,700 *69,700
A Maximum 12.0 m 39' 9.0 m 29' 7.5 m 24' 6.0 m 19' 4.5 m 14' 3.0 m 9'
B CfCsCfCsCfCsCfCsCfCsCfCsCfCs
6.0 m *6350 *6350 *7850 7700 *10700 *10700
19' *14,000 *14,000 *17,300 17,000 *23,600 *23,600
3.0 m *7300 6050 9300 7050 *13,300 12400 *16250 *16250 *21350 *21350
9' *16,100 13,300 20,500 15,600 *29,400 27,300 *35,900 *35,900 *47,100 *47,100
0 m 7950 5900 8650 6450 14250 10850 19150 14550 *25900 20700 *14500 *14500
0' 17,500 13,000 19,000 14,200 31,400 23,900 42,300 32,100 *57,100 45,600 *32,000 *32,000
–3.0 m 9100 6750 13500 10150 18150 13650 *25950 19700 *23400 *23400 *15850 *15,850
–9' 20,100 14,900 29,700 22,300 40,100 30,100 *57,200 43,400 *51,600 *51,600 *35,000 *35,000
–6.0 m *12600 9950 *13200 10400 *17000 13950 *21750 20300 *28500 *28500 *28600 *28600
–19' *27,800 22,000 *29,100 23,000 *37,500 30,800 *48,000 44,700 *62,900 *62,900 *63,000 *63,000
A Maximum 9.0 m 29' 7.5 m 24' 6.0 m 19' 4.5 m 14' 3.0 m 9'
B CfCsCfCsCfCsCfCsCfCsCfCs
6.0 m *8700 8300 *13900 13600 *15900 *15900
19' *19,200 18,300 *30,700 30,000 *35,100 *35,100
3.0 m 9250 7050 15400 12000 *20400 16200 *27050 22900
9' 20,400 15,500 34,000 26,400 *45,000 35,700 *59,600 50,500
0 m 9250 6950 14100 10750 18900 14300 27200 20250 *15050 *15050
0' 20,400 15,300 31,100 23,700 41,600 31,600 59,900 44,700 *33,100 *33,100
–3.0 m 10900 8250 13700 10350 18400 13850 26900 20000 *29500 *29500 *21100 *21100
–9' 24,100 18,100 30,200 22,800 40,500 30,500 59,300 44,000 *65,000 *65,000 *46,500 *46,500
–6.0 m *15950 13500 *17150 14650 *21950 21100 *27800 *27800
–19' *35,100 29,800 *37,800 32,300 *48,400 46,500 *61,200 *61,200
A Maximum 9.0 m 29' 7.5 m 24' 6.0 m 19' 4.5 m 14' 3.0 m 9'
B CfCsCfCsCfCsCfCsCfCsCfCs
6.0 m *7700 *7700 *12150 *12150 *13950 *13950
19' *17,000 *17,000 *26,700 *26,700 *30,800 *30,800
3.0 m *9000 7050 *14500 12000 *17850 16200 *23750 22900
9' *19,800 15,500 *32,000 26,400 *39,400 35,700 *52,400 50,500
0 m 9250 6950 14100 10750 18900 14300 *26650 20250 *13450 *13450
0' 20,400 15,300 31,100 23,700 41,600 31,600 *58,700 44,700 *29,700 *29,700
–3.0 m 10900 8250 13700 10350 18400 13850 *25150 20000 *26650 *26650 *19000 *19000
–9' 24,100 18,100 30,200 22,800 40,500 30,500 *55,400 44,000 *58,800 *58,800 *41,900 *41,900
–6.0 m *13700 13500 *14800 14650 *19000 *19000 *24050 *24050
–19' *30,200 29,800 *32,600 32,300 *41,900 *41,900 *53,100 *53,100
Unit: kg lb
PC800-8
Equipment:
● Boom: 8.2 m 26'11"
● Arm: 3.6 m 11'10"
● Bucket: 3.1 m
3
4.05 yd
3
● Shoe: 610 mm 24"
● Counterweight: 9.8 ton 21,610 lb
A: Reach from swing center
B: Bucket hook height
C: Lifting capacity
Cf: Rating over front
Cs: Rating over side
: Rating at maximum reach
* Load is limited by hydraulic capacity rather than tipping. Ratings are based on SAE standard No. J1097. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load.
C
B
A
HEAVY LIFTING "OFF"
Unit: kg lb
HEAVY LIFTING "ON"
Unit: kg lb
PC800-8
Equipment:
● Boom: 8.2 m 26'11"
● Arm: 4.6 m 15'1"
● Bucket: 2.8 m
3
3.66 yd
3
● Shoe: 610 mm 24"
● Counterweight: 9.8 ton 21,610 lb
A: Reach from swing center
B: Bucket hook height
C: Lifting capacity
Cf: Rating over front
Cs: Rating over side
: Rating at maximum reach
HEAVY LIFTING "OFF"
Unit: kg lb
HEAVY LIFTING "ON"
* Load is limited by hydraulic capacity rather than tipping. Ratings are based on SAE standard No. J1097. Rated loads do not exceed 87% of hydraulic lift capacity or 75% of tipping load.
C
B
A
