Komatsu SDA6D140E-3 - Cylinder Head

11-18
140-3 SERIES
STRUCTURE AND FUNCTION, MAINTENANCE STANDARD CYLINDER HEAD
CYLINDER HEAD
★ Details may differ according to the machine
model.

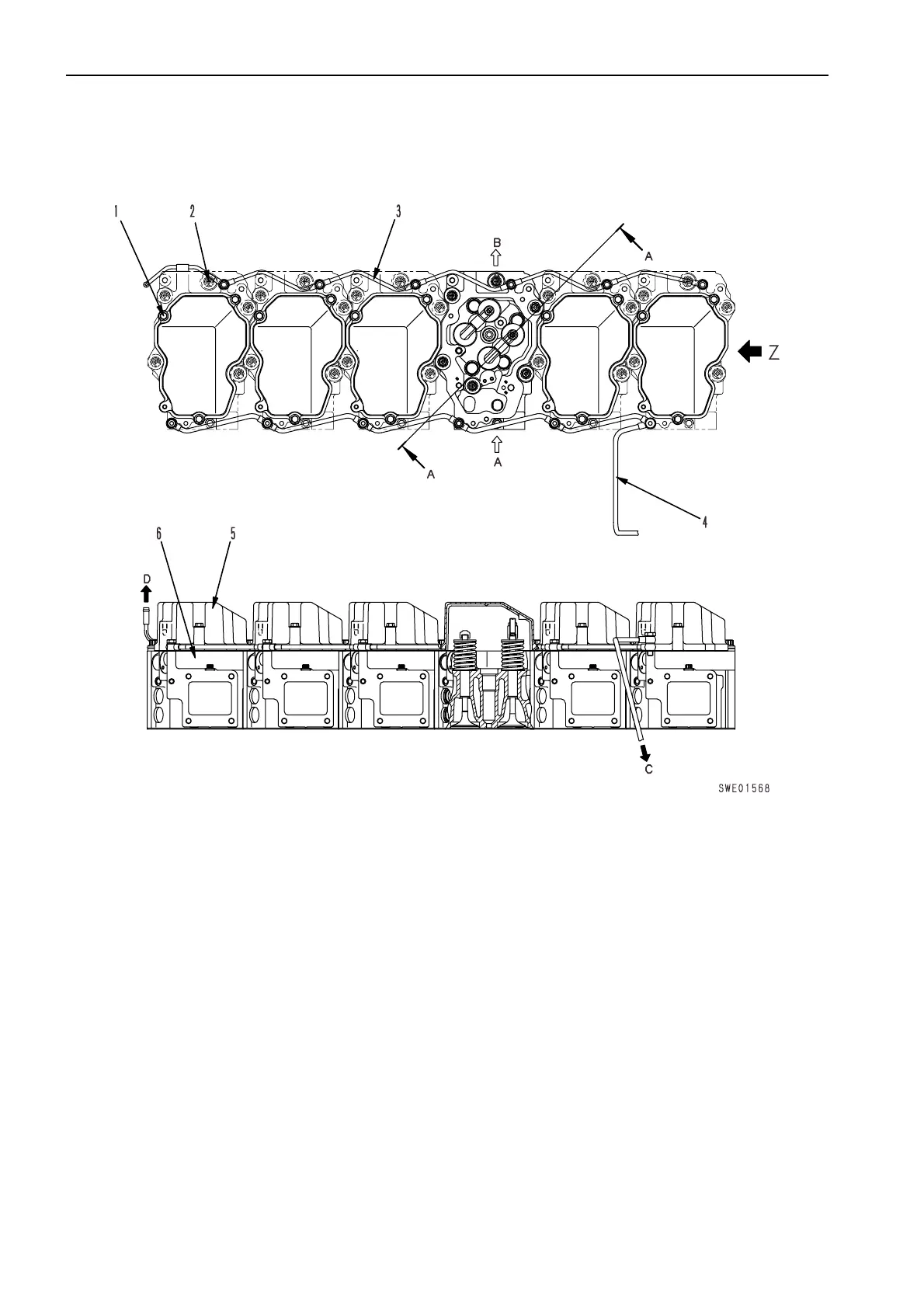

1.
Rocker housing bolt
A.
Intake
2.
Cylinder head bolt
B.
Exhaust
3.
Cooling water air bleed pipe
C.
To fuel tank
4.
Fuel spill pipe
D.
To radiator
5.
Rocker cover
6.
Cylinder head
7.
Injector connector
8.
Injector assembly
9.
Injector holder mounting bolts
10.
Injector holder retainer
