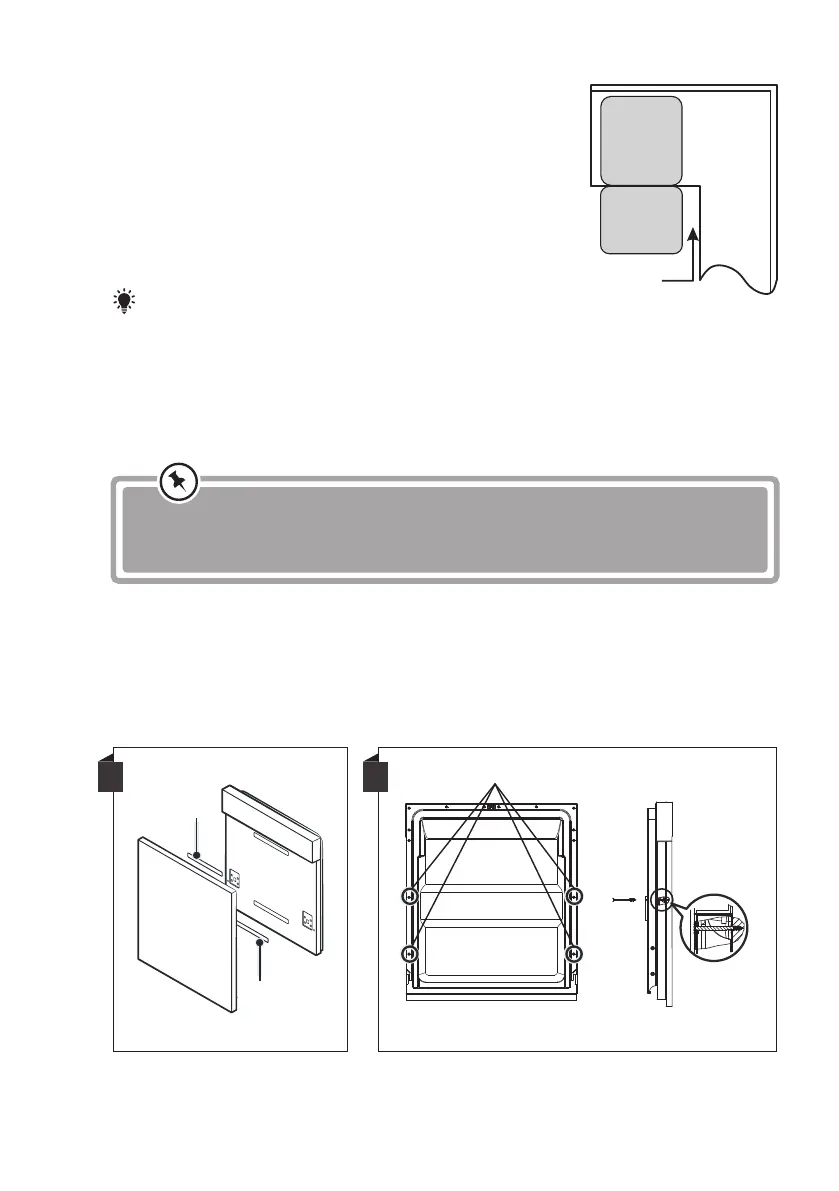

Step 2. Aesthetic panel's dimensions and installation
2. If dishwasher is at the corner of the cabinet,
there should be some space when the door is opened.
installed
CabinetDishwasher
Door of
dishwasher
Minimum space
of 50 mm
NOTE:
Depending on where your electrical outlet is, you may need to cut a hole in the
opposite cabinet side.
21
Follow the specific installation instruction for attaching the
aesthetical door panel.
Follow the specific installation instruction for attaching the
aesthetical door panel.
A
Velcro stripe
Velcro stripe
Seperate velcro stripe A and velcro stripe B and attach velcro stripe A on the inner side
of the aesthetic panel. Attach the felted velcro stripe B on the outer door of dishwasher
(see figure A). After positioning of the panel, fix the panel onto the outer door by
screws and bolts (See figure B) .
Semi-integrated model
B
2.Pin up the four long screws
1.Take away the four short screws
