KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
19790-300-55/19790-500-55 Rev.13 03-80-080-00 10/15
TECHNICAL DATA
Material
Holder, joint: Polyamid PA-6
Screws: Steel, galvanized
max. load
Tablets Height: min. 220 mm, max. 331 mm
Tablets Width: min. 128 mm, max. 232 mm
Tablets Depth: min. 6 mm, max. 12 mm
Dimensions External Dimensions W x D x H: 237/349 x 92 x 145/250 mm
Packaging W x D x H: 254 x 104 x 150 mm
Weight net 0.265 kg, gross 0.5 kg
SETUP
FAULT-FINDING (F) and REPAIR (R)
F: Holder is unstable
F: R: Check that it is properly screwed into the stand, if needed tighten
F: R: the screws 1.
F: Tablet is not securely in place
F: R: Correct the position of the side support arms, so that the corner
F: R: supports are properly set on the Tablet without any play (2-8)
F: R: Ensure that the lower support arms setting are symmetrical (4,5).
F: R: Asymmetric setting of the support arms looks bad and does not
F: R: ensure that the Tablet is securely held in place.
F: B: Do not only place the Tablet on the upper support arm, but be sure
F: R: it clicks into place (7,8).
F: B: Observe the minimum i.e maximum dimensions
USAGE NOTES and FUNCTIONS
The angle and format of the
tablet can be adjusted.
The (securely positioned) Tablet
does not have to be removed
from the holder.
ANGLE (16-18)
The Tablet can be adjusted to
any final position by adjusting it
vertically and horizontally. To do this:
16 Hold the Tablet and loosen the wing
16 nut somewhat
17 Pick the position (vertical/horizontal) and...
18 ...re-tighten the wing nut.
FORMAT (19)
The holder has a
90°-Twist Function.
The Tablet can be presented
in landscape and portrait positions.
19 Take the holder and turn it to
19 the landscape, portrait or tilted
19 - position!
19 NOTE- Hitches within the mount limit
19 how far the holder can be turned.
DIMENSIONS (20)
The minimum and maximum size cannot
be achieved due to the Tablet’s
unfavorable length/width ratios.
ANGLE (16-18)
FORMAT (19) DIMENSIONS (20)
REMOVING the Tablet (10-12)
REPEATED PLACEMENT of the Tablet (13-15)
5-11 mm
ca. 2 mm
0
220-331
128-232
Final Position
- horizontal
- as far as it goes
Final Position
- vertical
- as far as it goes
Interim Position:
- tilted (0-90°)
- select any position (Secure position
- by tightening the wing nut (18)
Final Position
-landscape
- clicked into place
Final Position
portrait
- clicked into
- place
Twist (Interim Position):
- tilted
- not clicked into place, however it
- does stay in the selected position

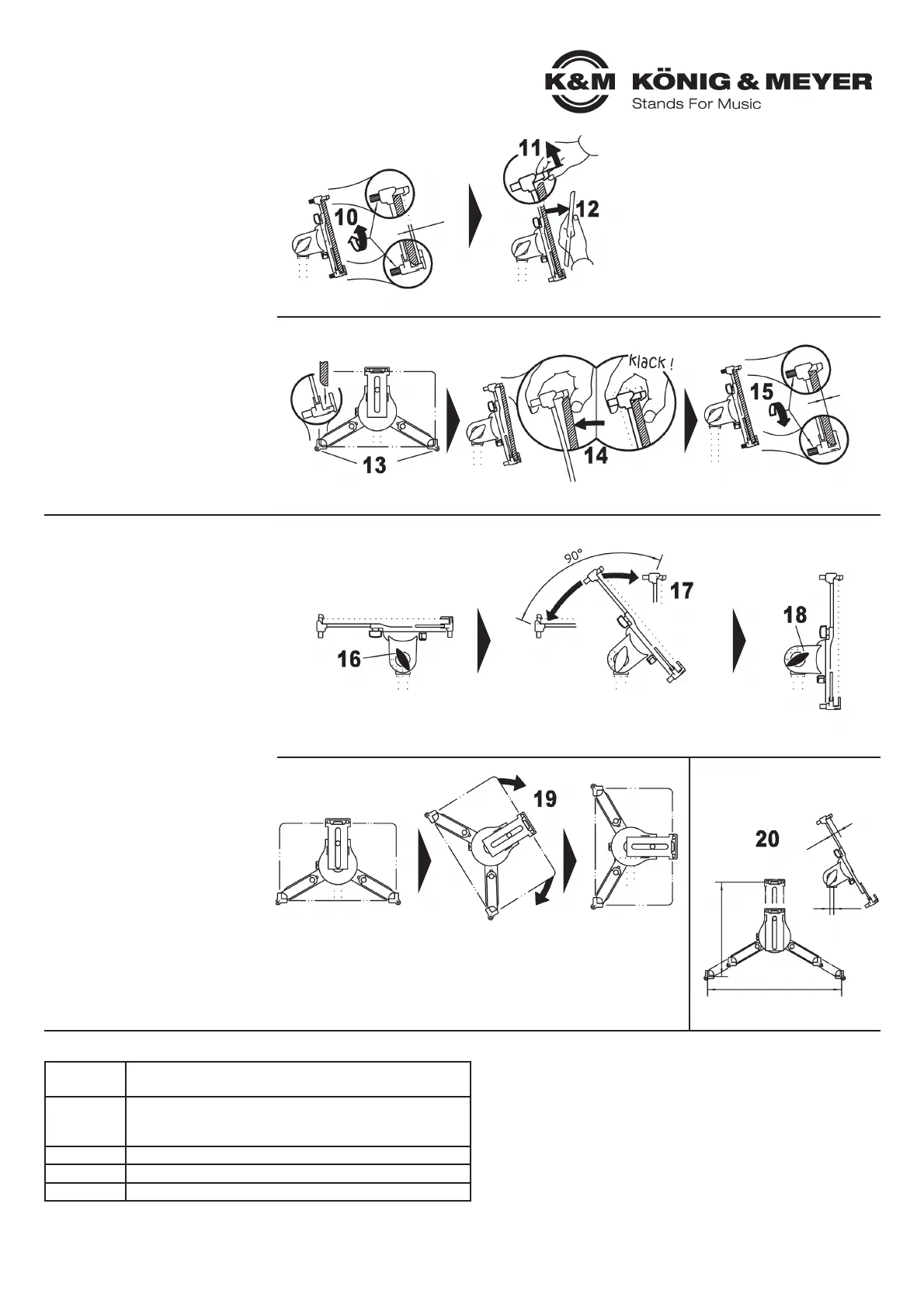

REMOVING the Tablet (10-12)
10 Loosen the knurled pins a bit
11 Hold the tablet and LIFT UP the catch
12 Flip out the Tablet and REMOVE
If you always use the same tablet, we
recommend that the support arm settings
remain in this position.
REPEATED PLACEMENT of the Tablet (13-15)
For previously set support arms
13 Place the tablet in the lower corner
13 supports
14 Place the tablet into the upper catch and
14 gently press until it clicks into place
15 Tighten the knurled pins until the tablet
14 is gently pressed into place
Then check that the Tablet is secure as
described in 9.
3/8” (5/8”)
