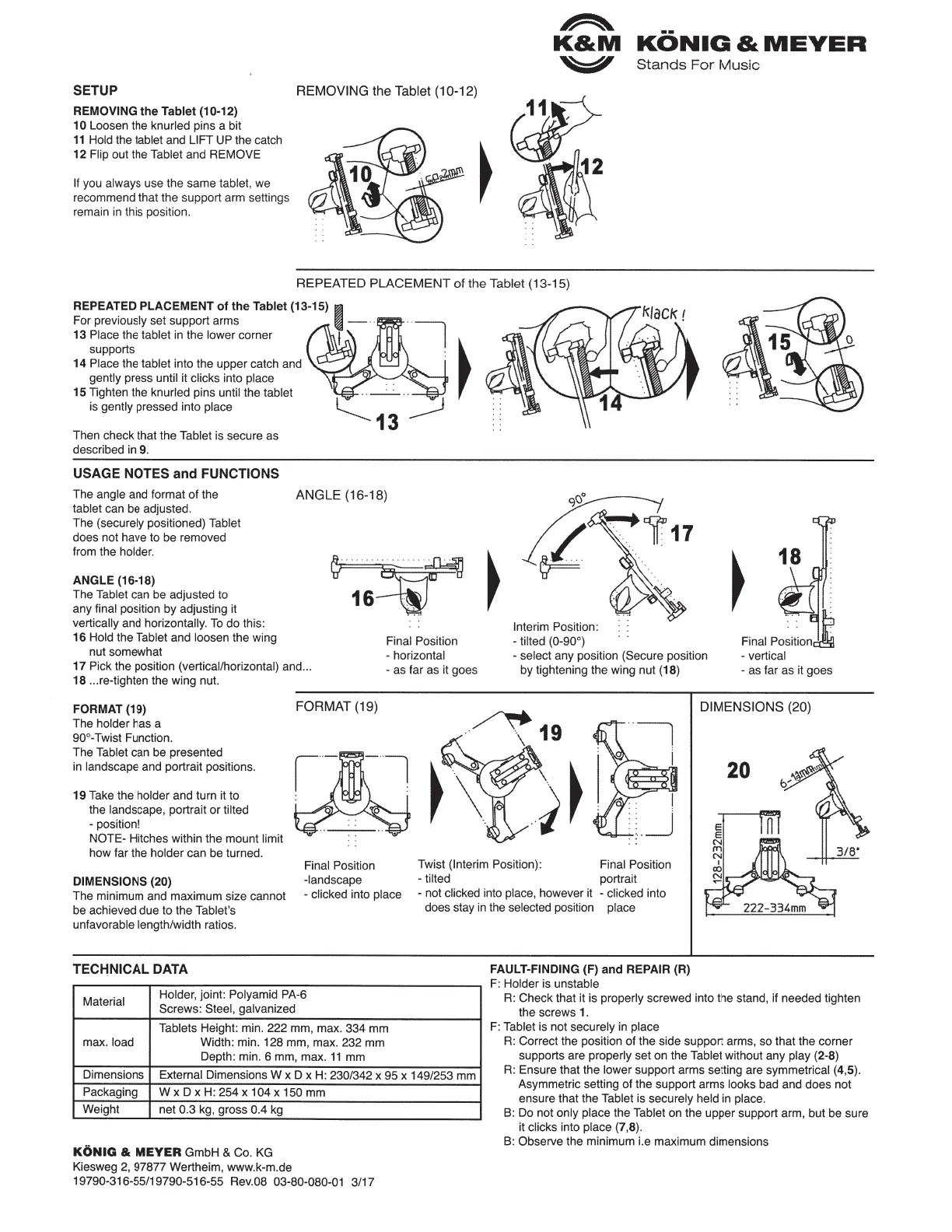

SETUP
REMOVING
the
Tablet
(10-12)
10
Loosen the knurled pins a bit
11
Hold the tablet and
LIFT
UP the catch
12
Flip out the Tablet and REMOVE
If
you always use the same tablet, we
recommend that the support a
rm
settin
gs
remain
in
this position.
~
K&M
KONIG
&
MEYER
~
Sta
n
ds
For
Music
REMOVING
the Tablet
(10-12)
REPEATED PLACEMENT
of the
Tablet (13-15)
REPEATED
PLACEMENT
of
the
Tablet (13-15)
[ll
For previously set support arms
~
- ..
13
Place the tablet
in
the lower corner
1
supports
14
Place the tablet into the upper catch and
gently press until it clicks into place
15
Tighten the knurled pins until the tablet
is
gently pressed into place
Then check that the Tablet is secure as
described
in
9.
USAGE NOTES
and
FUNCTIONS
The angle and format of the
ANGLE (16-18)
tablet can be adjusted.
The (securely positioned) Tablet
does not have to be removed
from the holder.
ANGLE
(16-18)
The Tablet can be adjusted to
any final position by adjusting it
vertically and horizontally.
To
do this:
16
Hold the Tablet and loosen the
wi
ng
nut somewhat
17
Pick the position (vertical/horizontal) and ...
18
..
.
re-tighten the wing nut.
FORMAT
(19)
The holder has a
90°-Twist Function.
The Tablet can be presented
in landscape and portrait positions.
19
Take the holder and turn it to
the landscape, portrait or tilted
-position!
NOTE-
Hitches within the mount limit
how far the holder can be turned.
DIMENSIONS
(20)
FORMAT
(19)
Final Position
-landscape
Interim
Position:
- tilted (0-90°)
Final Position
- horizontal - select any position
(Secure
position
- as far as it goes by tightening the wing nut
(18)
- as far as it goes
DIMENSIONS
(20)
Twist
(Interim
Position): Final Position
- tilted portrait
The minimum and maximum size cannot
be achieved due to the Tablet's
unfavorable length/width ratios.
- clicked into place
- not clicked into place, however it - clicked into
TECI-!NICAL
DATA
Material
Holder, joint: Polyamid PA-6
Screws: Steel,
galvanized
Tablets Height: min. 222 mm, max. 334 mm
max. load Width: min. 128 mm, max. 232 mm
Depth: min. 6 mm, max.
11
mm
does stay
in
the selected position place
FAULT-FINDING
(F) and
REPAIR
(R)
F: Holder is unstable
R: Check that it is properly screwed into the stand, if needed tighten
the screws
1.
F: Tablet is not securely
in
place
R:
Correct the position of the side support arms, so that the corner
supports are properly set on the Tablet without any play
(2-8)
Dimensions External Dimensions W x D x
H:
230/342 x 95 x 149/253 mm
R:
Ensure that the lower support arms setting are symmetrical
(4,5).
Asymmetric setting of the support arms looks bad and does not
ensure that the Tablet is securely held
in
place.
Packaging
W
X
D
X
H: 254
X
104
X
150
mm
Weight net
0.3
kg
, gross
0.4
kg
KONIG
&
MEYER
GmbH
&
Co.
KG
Kiesweg
2,
97877 Wertheim, www.k-m.de
19790-316-55/19790-516-55 Rev.08
03-80-080-01
3/17
B: Do not only place the Tablet on the upper support arm, but be sure
it clicks into place
(7,8).
B: Observe the minimum i.e maximum dimensions
