USE INSTRUCTIONS
TEST, MAINTENANCE, CLEANING DIMENSIONS
- When maintaining the throne, be aware of the potential for injury (pinching, knocking).
- It is best to use a slightly damp cloth and a non-abrasive cleaning agent for cleaning.
FAULT FINDING (F) and SOLUTION (S)
F: Height adjustment of the tube difficult:
S: Foreign bodies or dirt between the tubes: carefully clean the tubes; adjust the pre-setting
S: of the clamping lever 6, 7, 8
F: The pull-out tube wobbles or retracts under pressure:
S: Check the ratchet pin, adjust the pre-setting of the clamping lever 6, 7, 8
F: Base section and legs very stiff:
S: Apply a little silicon spray.
3. HEIGHT ADJUSTMENT
TECHNICAL DATA / SPECIFICATIONS
Materials
Steel tube and steel struts: chrome plated
Ring: PA-6 black
Clamping lever, ratchet knob: POM grey
Floor protectors: TPE Evoprene, black
Upholstered seat: artificial leather, black
Max. weight bis 80 kg
1. FUNCTION of the CLAMPING RING
1. a. SEAT HEIGHT: the pin 13 locks the pull-out tube in place
1. b. STABILITY when closed, the clamping lever 14 locks the base tube and the pull-out tube and ensures there is no seat wobble

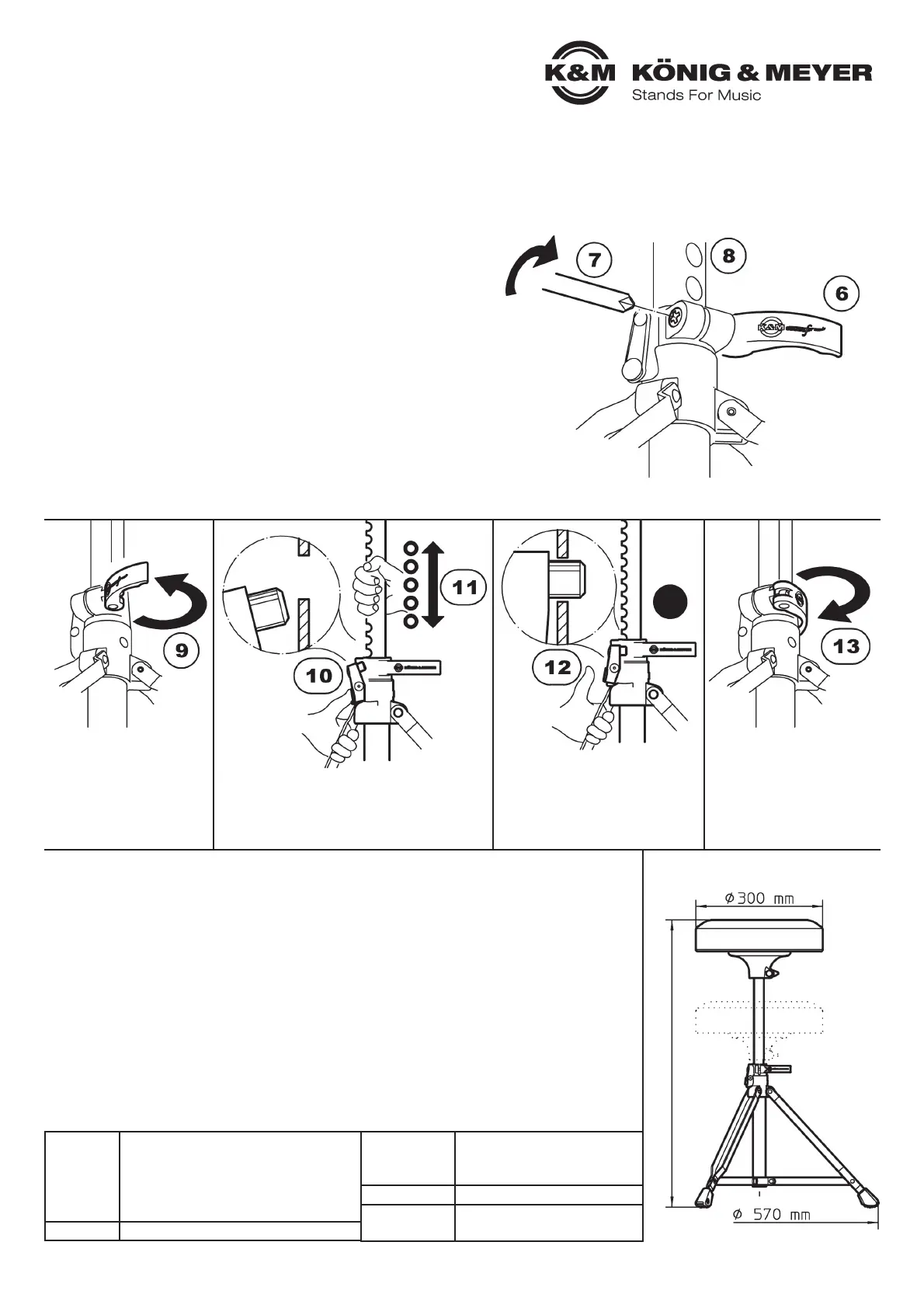

2. PRE-TIGHTENING THE CLAMPING RING
The clamping ring is pre-set at the factory.
For the clamp is to function correctly,
the clamping lever 6 must be closed very
firmly. If the clamping lever closes too easily,
then the following correction should be made.
PROCEDURE:
- Open clamping lever 6, tighten the cross-head screw 7.
- Re-close the clamping lever and repeat the procedure if necessary.
AIM:
a. When the clamping lever is closed, the pull-out tube 8 should be immoveable
a. due to the function of the clamping ring.
b. When the clamping lever 6 is open, the height of the pull-out tube can be adjusted.
- Open the grey
- clamping lever 9
- Activate the knob to loosen
- the ratchet pin 10
- Adjust the pull-out tube 11 to
- the desired height
- Allow the ratchet pin
- 12 to slot into the
- corresponding hole
- Re-close the grey
- clamping lever 13
Measurements
Upholstered seat: ø 330 x 80 mm
Seat height: 495 - 660 mm
Footprint diameter: 570 mm
Own weight 3.25 kg (4.0 kg with cardboard box)
Packing
Single carton: L x B x H
520 x 320 x 190mm
495 - 660 mm
