2

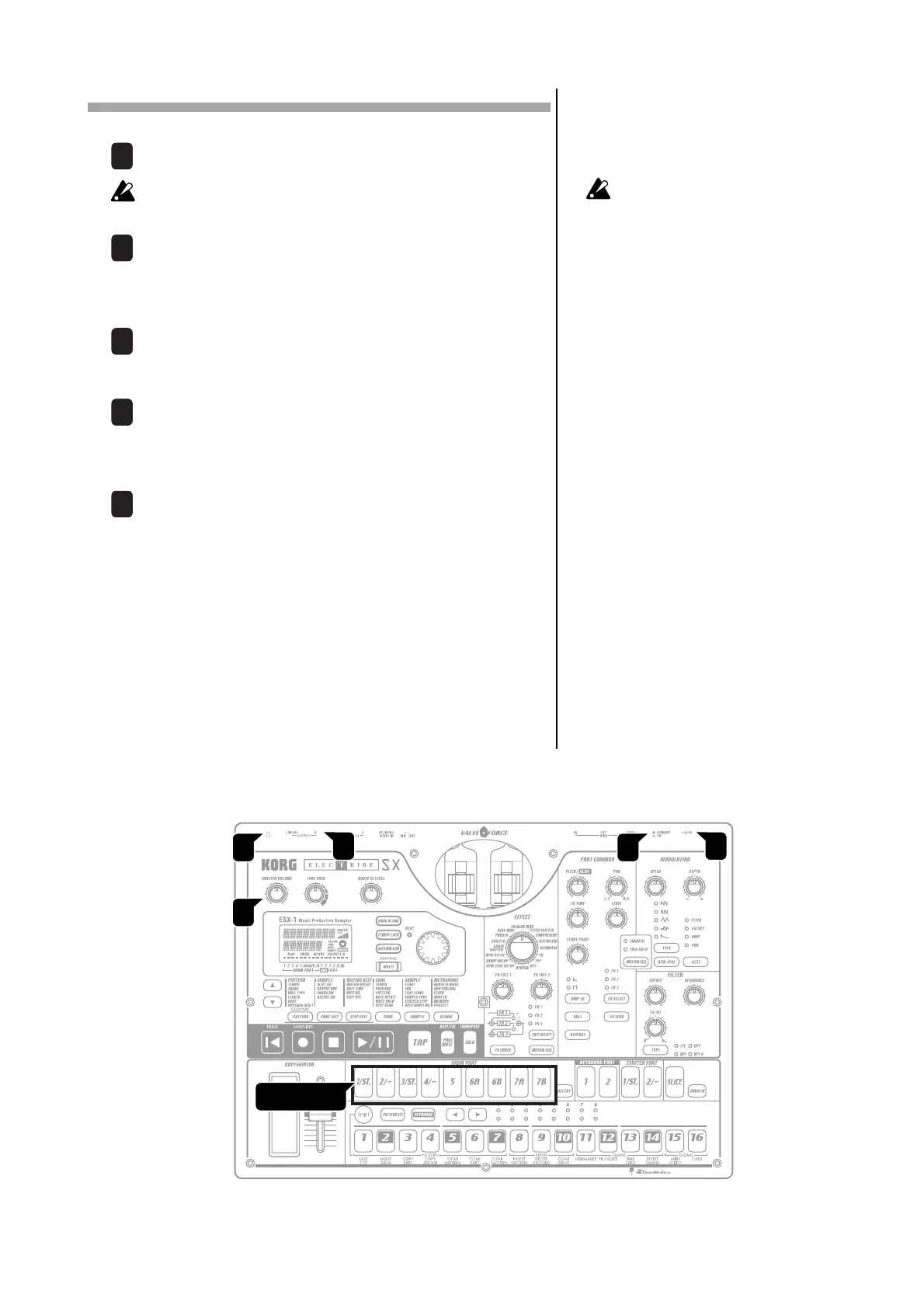

Preparations
1
Connect the included AC/AC power supply to the ESX-1’s ~AC
9V connector, and plug the AC/AC power supply to an AC outlet.
You must first connect the AC/AC power supply to the ESX-1, and
then plug it into the AC outlet.
2
Connect audio cables from the ESX-1’s line out jacks (L/MONO,
R) to your mixer or powered monitor system (amplified speak-
ers). If you are using a monaural connection, use the L/MONO
jack.
3
If you are using headphones, plug them into the headphone jack.
Sound will still be output from the line out jacks even if head-
phones are plugged in.
4
Turn on the power switch.
Slightly turn up the ESX-1’s master volume, and touch the drum
part keys to produce sound so that you can check that the connec-
tions are correct.
5
Adjust the ESX-1’s master volume, and the gain and faders of your
mixer or powered monitor system to an appropriate listening level.
You must turn off the power before
making connections. Careless op-
eration can damage your speaker
system or other equipment, and
may cause malfunctions.
3 4
5
2 1
DRUM PART
To Next Page
