Korg EX-8000 Service Manual

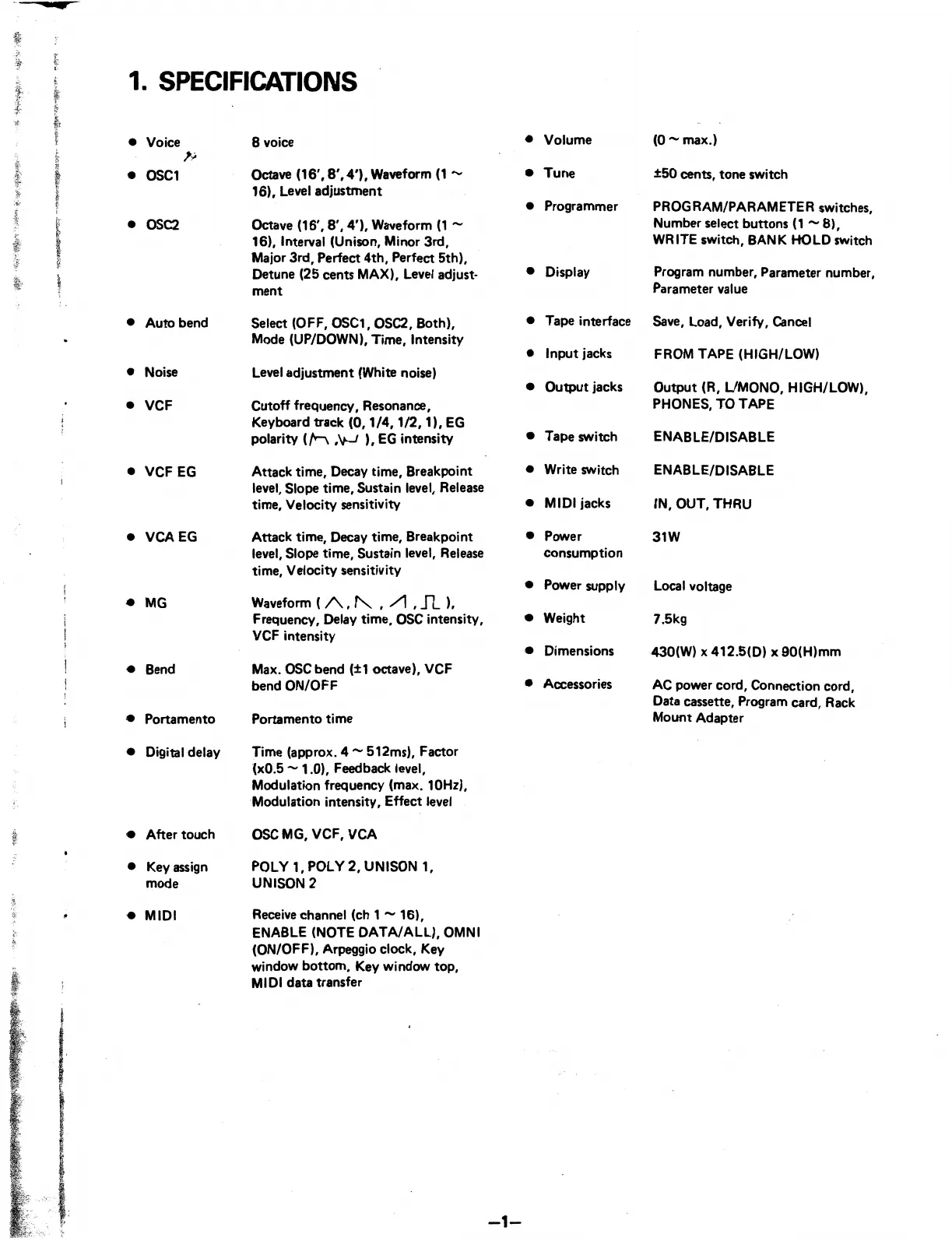

1. SPECIFICATIONS
• Voice
• OSC1
• OSC2
• Auto bend
• Noise
• VCF
• VCFEG
• VCAEG
• MG
• Bend
• Portamento
• Digital delay
8 voice
Octave (16', 8', 4'), Waveform (1 ~
16), Level adjustment
Octave (16', 8', 4'), Waveform (1 ~
16), Interval (Unison, Minor 3rd,
Major 3rd, Perfect 4th, Perfect 5th),
Detune (25 cents MAX), Level adjust
ment
Select (OFF, OSC1, OSC2, Both),
Mode (UP/DOWN), Time, Intensity
Level adjustment (White noise)
Cutoff frequency, Resonance,
Keyboard track (0,1/4,1/2,1), EG
polarity (^ #\^j )r EG intensity
Attack time, Decay time, Breakpoint
level, Slope time. Sustain level, Release
time, Velocity sensitivity
Attack time, Decay time, Breakpoint
level, Slope time, Sustain level, Release
time, Velocity sensitivity
Waveform ( A, K , A , JL ),
Frequency, Delay time, OSC intensity,
VCF intensity
Max. OSC bend (±1 octave), VCF
bend ON/OFF
Portamento time
Time (approx. 4 ^ 512ms), Factor
(x0.5 ~ 1.0), Feedback level,
Modulation frequency (max. 10Hz),
Modulation intensity. Effect level
• After touch OSC MG, VCF, VCA
• Key assign POLY 1, POLY 2, UNISON 1,
mode UNISON 2
• MIDI Receive channel (ch 1 ~ 16),
ENABLE (NOTE DATA/ALL), OMNI
(ON/OFF), Arpeggio clock, Key
window bottom, Key window top,
MIDI data transfer
• Volume
• Tune
• Programmer
• Display
• Tape interface
• Input jacks
• Output jacks
• Tape switch
• Write switch
• MIDI jacks
• Power
consumption
• Power supply
• Weight
• Dimensions
• Accessories
(0 ~ max.)
±50 cents, tone switch
PROGRAM/PARAMETER switches.
Number select buttons (1^8),
WRITE switch, BANK HOLD switch
Program number. Parameter number,
Parameter value
Save, Load, Verify, Cancel
FROM TAPE (HIGH/LOW)
Output (R, L/MONO, HIGH/LOW),
PHONES, TO TAPE
ENABLE/DISABLE
ENABLE/DISABLE
IN, OUT, THRU
31W
Local voltage
7.5kg
430(W) x 412.5(D) x 90(H)mm
AC power cord, Connection cord.
Data cassette, Program card, Rack
Mount Adapter
