- 7 -

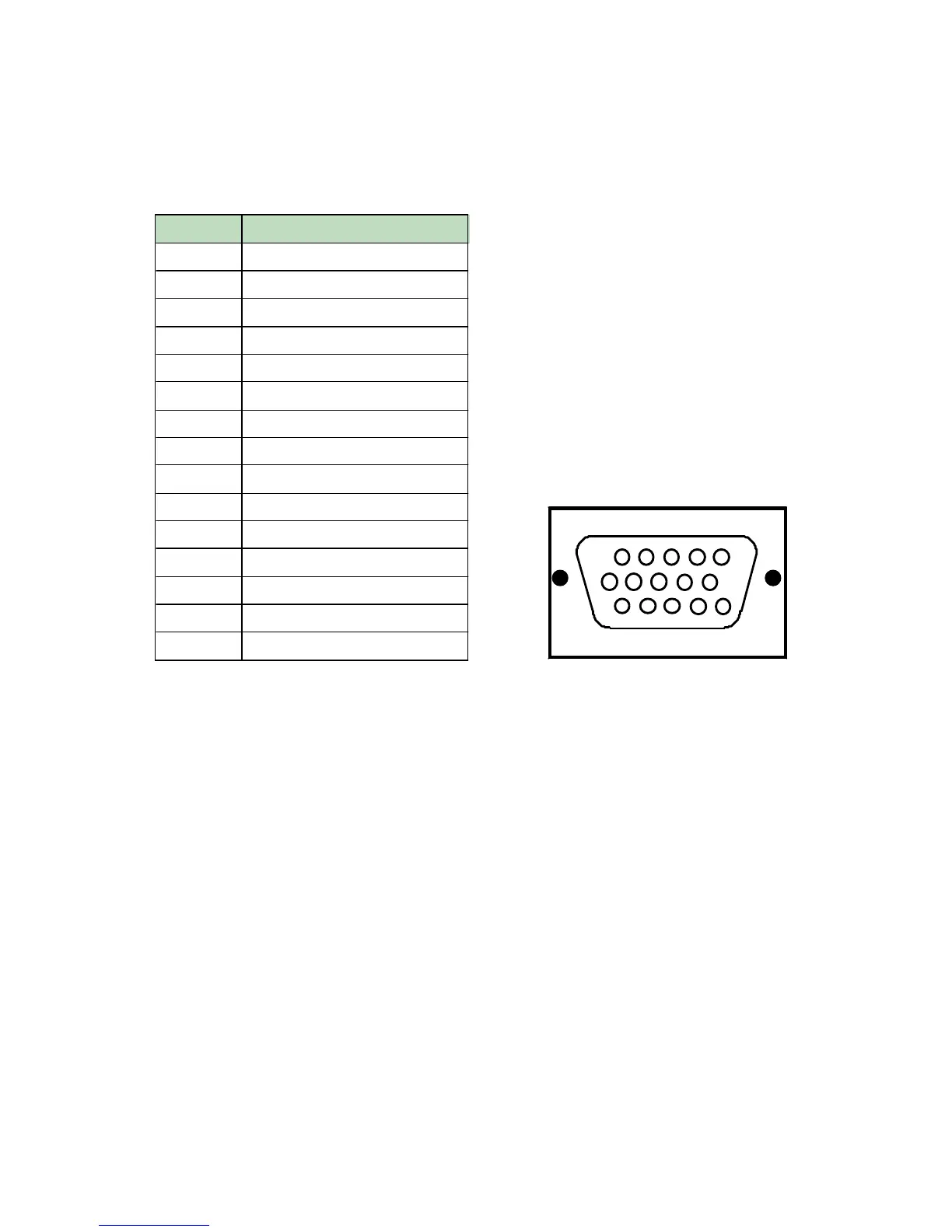

2-2 D-SUB SIGNAL CABLE SPECIFICATION
PIN NO PIN NAME
1 RED
2 GREEN
3 BLUE
4 GND
5 GND (DDC)
6 R-GND
7 G-GND
8 B-GND
9 N.C
10 SELF RASTER
11 GND
12 SDA (DDC)
13 H-SYNC
14 V-SYNC
15 SCL (DDC)
1 2 3 4 5
6 7 8 9 10
11 12 13
14 15
