Step 3: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your 102XL.

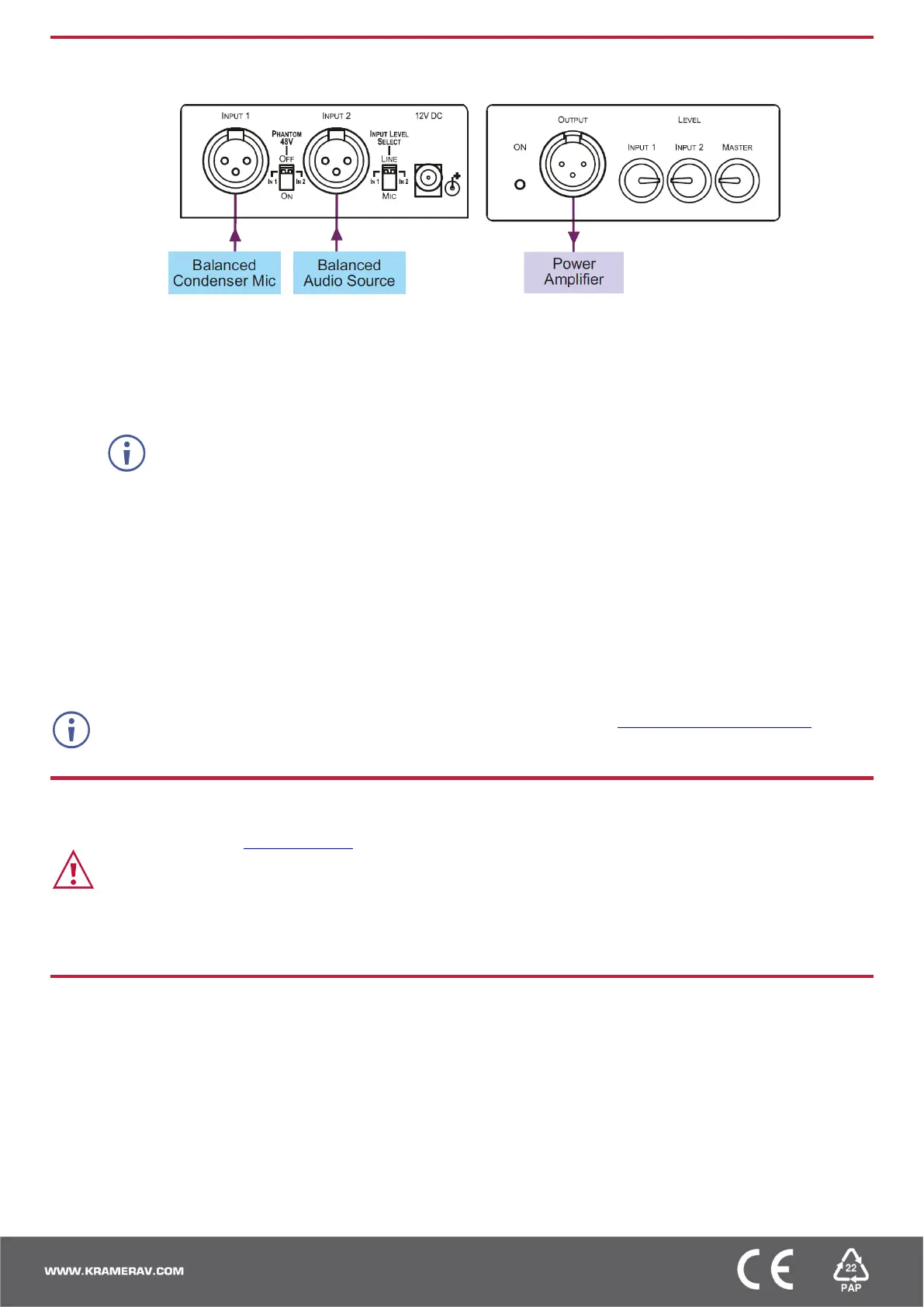

To connect up to two balanced audio sources to the 102xl 2 Channel Audio Mixer, do the following:
1. Connect a balanced audio source (for example, a condenser microphone) to the INPUT 1 XLR female connector.
a. Set the INPUT LEVEL SELECT IN 1 switch to MIC.
b. Set the PHANTOM 48V IN 1 switch to ON.
When using a dynamic microphone, set the PHANTOM 48V switch to OFF.
2. Connect a balanced audio source to the INPUT 2 XLR female connector.
a. Set the INPUT LEVEL SELECT IN 2 switch to LINE.
b. Set the PHANTOM 48V IN 2 switch to OFF.
3. Connect the XLR male OUTPUT connector to a balanced audio acceptor (for example, a power amplifier with
speakers).
4. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity.
5. Rotate the INPUT 1, INPUT 2, and MASTER LEVEL knobs to adjust the audio level of input 1, input 2, and of both
inputs mixed together (the MASTER LEVEL knob) to the output, respectively. For every unused input, be sure to
rotate the LEVEL potentiometer fully counter-clockwise (to the minimum level).
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/102XL.
Using third-party cables may cause damage!
Step 4: Connect power
Connect the power cord to 102XL and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the
terminal or in the User Manual.
• There are no operator serviceable parts inside the unit.
Warning:
• Use only the power cord that is supplied with the unit.
• Disconnect the power and unplug the unit from the wall before installing.
Step 5: Operate 102XL
Set the phantom 48V and input level DIP-switches for each input. Use 48V phantom only for condenser microphones.
Set the input or master volume knobs to mix the signals as needed.
