6-10 BA 35101/02/03 EN – Edition 1.0 * 35101_02_03b610.fm
Specifications
Relays

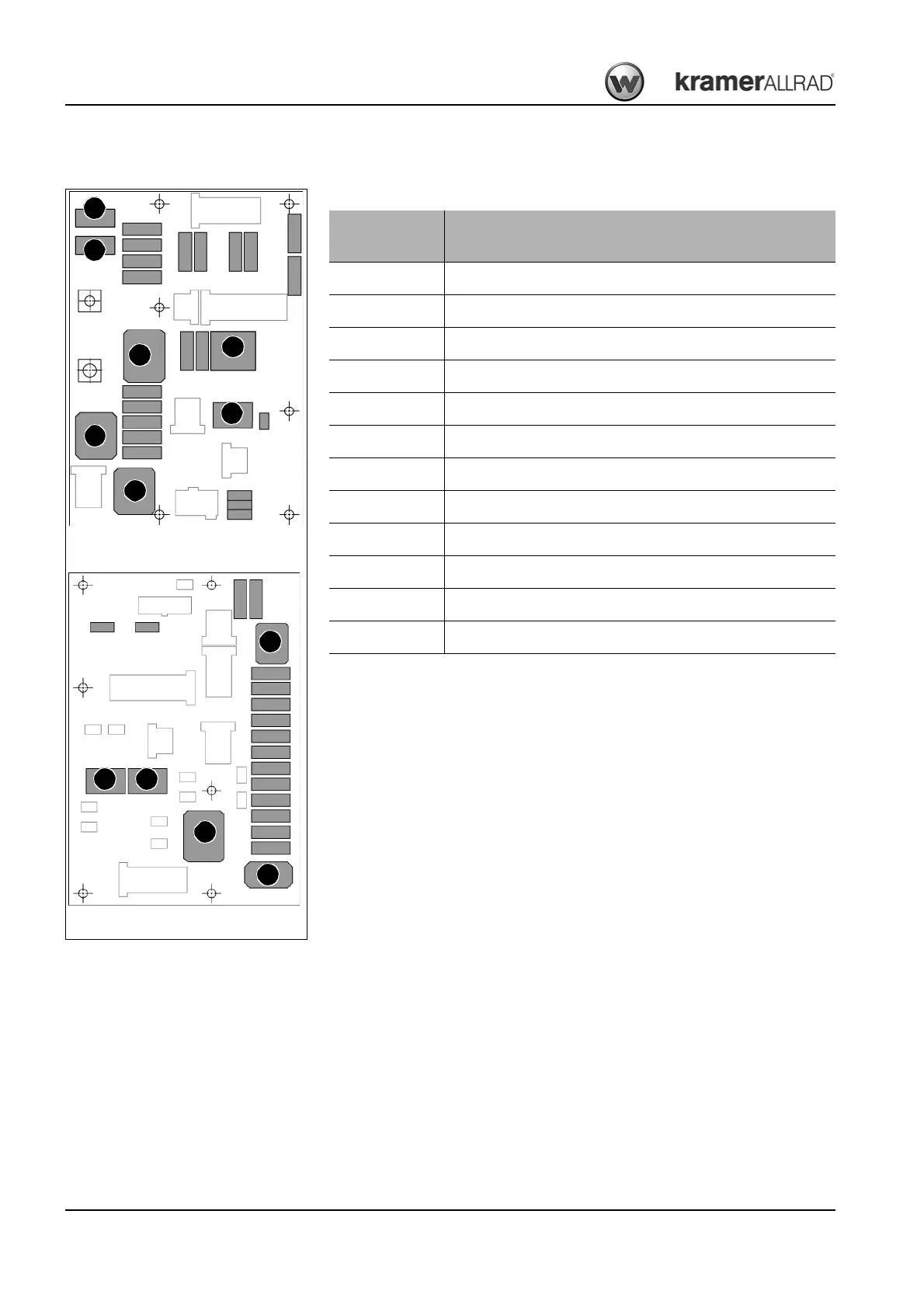

The relays are mounted on the left and right on the board under the switch panel.
Fig. 198: Relays on board (right)
Fig. 197: Relays on board (left)
K01
K02
K03K04
K25
K22
K10
K16
K21
K23
K52
B18
Switching
relay no.
Protected circuit
K01 Power supply high current relay
K02 Power supply high current relay
K03 Reverse driving switching relay
K04 Forwards driving switching relay
K10 Turn indicator relay
K16 Front socket switching relay
K21 Differential lock switching relay
K22 Load stabiliser switching relay
K23 Front wiper switching relay (1st speed)
K25 Front wiper intermittent wipe relay
K52 Mini SPS switching relay/front socket
B18 Buzzer
