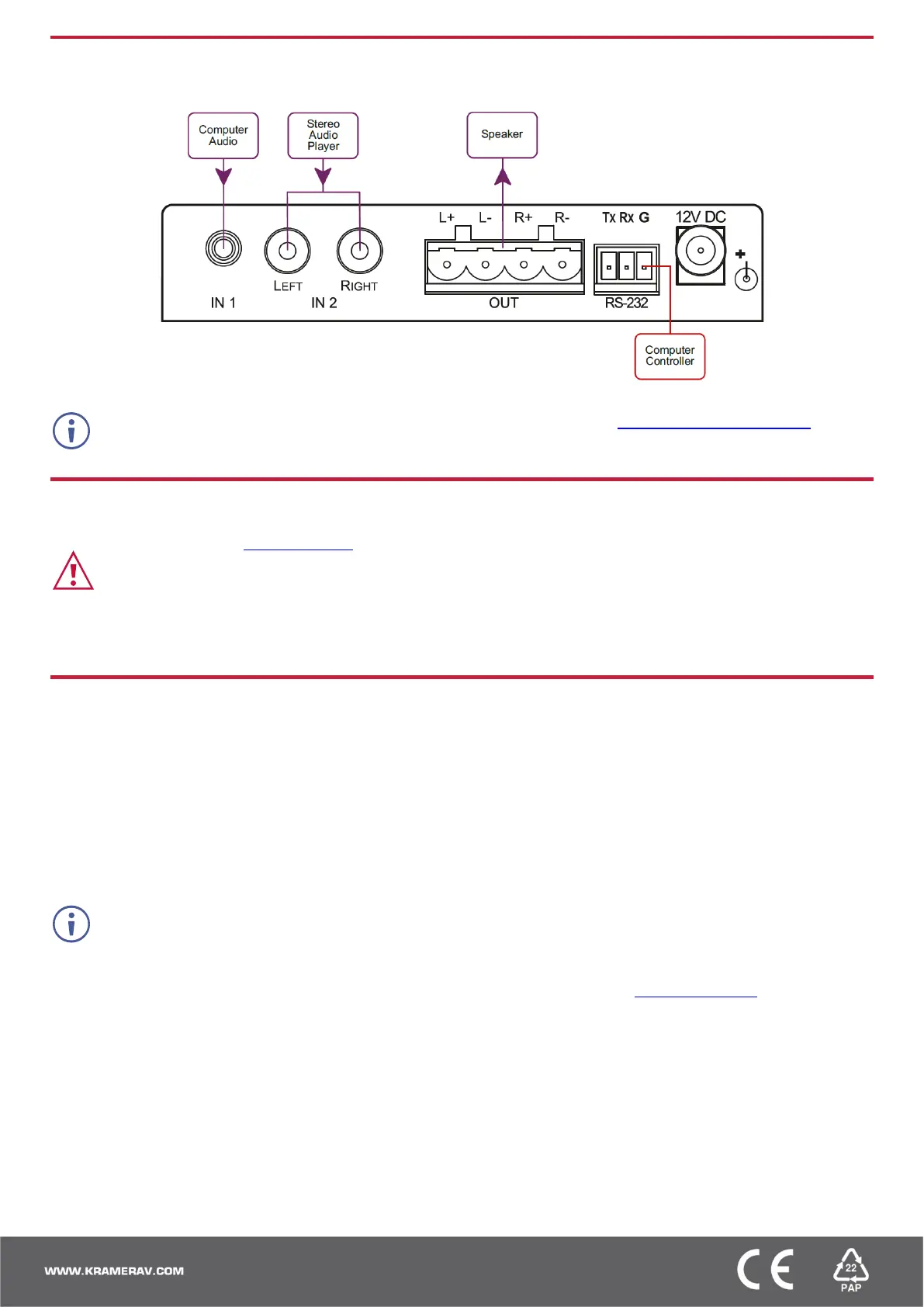

Step 4: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your 900XL.
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/900XL.
Using third-party cables may cause damage!
Step 5: Connect power
Connect the power cord to 900XL and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the
terminal or in the User Manual.
• There are no operator serviceable parts inside the unit.
Warning:
• Use only the power cord that is supplied with the unit.
• Disconnect the power and unplug the unit from the wall before installing.
Step 6: Operate 900XL
You can operate your 900XL using:
• The front panel buttons
• RS-232 serial commands transmitted by a PC, touch screen system, or other serial controller
Using the Front Panel Buttons
To operate the 900XL using the front panel buttons:
1. Press INPUT 1 button or INPUT 2 button to select audio input source.
2. Press VOLUME + and – buttons to adjust the output volume to the speakers.
In the case of output distortion that cannot be corrected using the volume controls, try switching the LEVEL switch on the
underside of the unit from H to L and alter the output using the volume control.
Using Serial Commands
To operate 900XL using serial commands, you need to install Kramer's control software (See www.kramerav.com to Download
control software)
