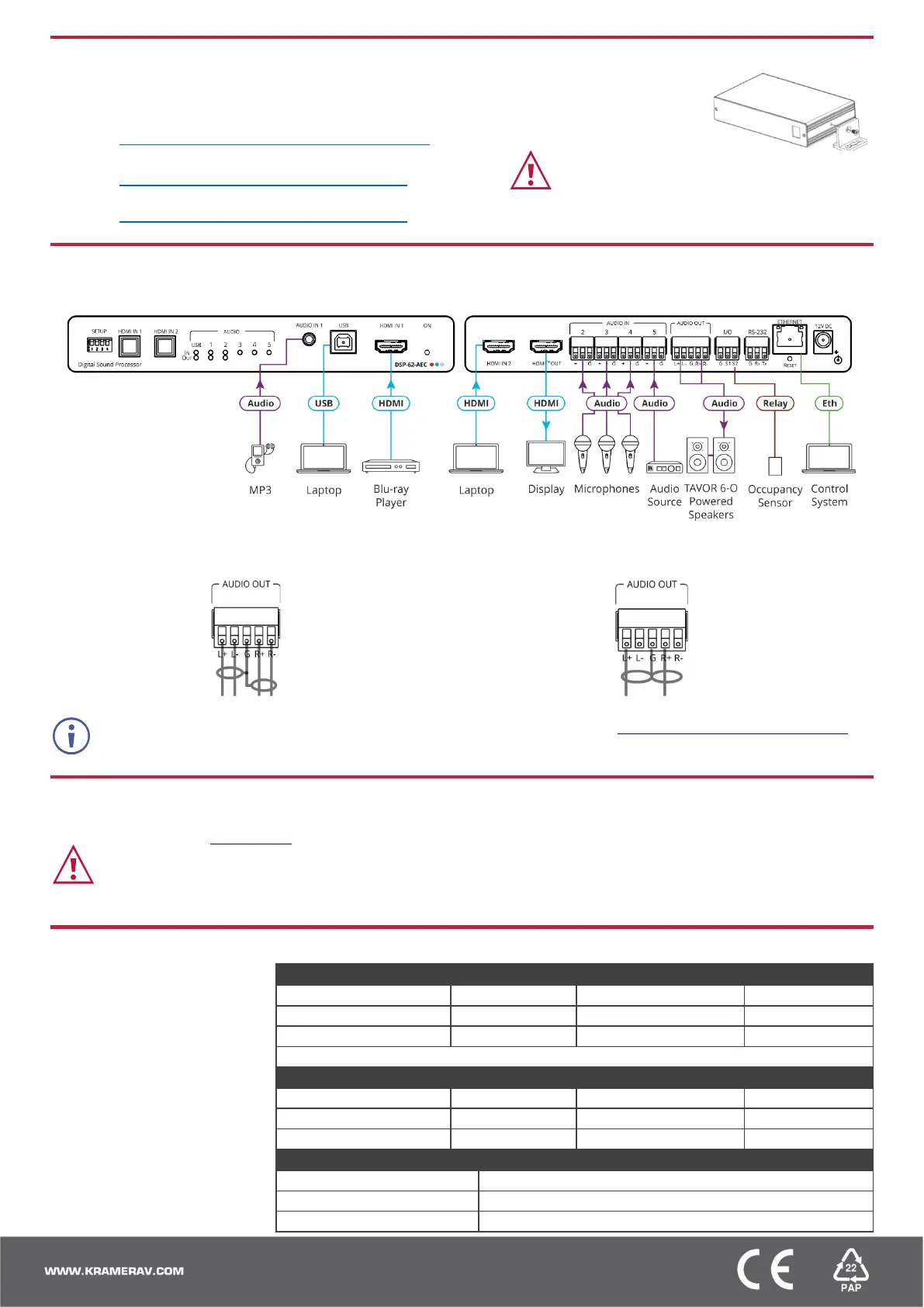

Kramer DSP-62-UC Quick Start Guide

Step 3: Mount DSP-62-AEC
Install DSP-62-AEC using one of the following methods:
• Attach the rubber feet and place the unit on a flat surface.
• Fasten a bracket (included) on each side of the unit and attach it to a flat surface
(see www.kramerav.com/downloads/DSP-62-AEC).
• Mount the unit in a rack using the recommended rack adapter
(see www.kramerav.com/product/DSP-62-AEC).
• Mount the unit in a Kramer Table-Mount unit
(see www.kramerav.com/product/DSP-62-AEC).
• Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.
• Maximum mounting height for the device is 2 meters.
Step 4: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your DSP-62-AEC.
Connecting the audio output
To a balanced stereo audio acceptor:
To an unbalanced stereo audio acceptor:
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/DSP-62-AEC.
Using third-party cables may cause damage!
Step 5: Connect power
Connect the power cord to DSP-62-AEC and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.
• There are no operator serviceable parts inside the unit.
Warning:
• Use only the power cord that is supplied with the unit.
• Disconnect the power and unplug the unit from the wall before installing.
Step 6: Operate the DSP-62-AEC
Operate DSP-62-AEC via:
• Embedded web pages via
the Ethernet.
• RS-232 serial
commands transmitted
by a touch screen
system, PC, or other
serial controller.
RS-232 Control / Protocol 3000
Baud Rate:
115,200
Parity:
None
Data Bits:
8
Command Format:
ASCII
Stop Bits:
1
Example: (adjust analog audio output 1 to “-10dB”): #x-aud-lvl out.analog_audio.1.audio.1,-10
Default Ethernet Parameters
IP Address:
192.168.1.39
UDP Port #:
50000
Subnet mask:
255.255.0.0
TCP Port #:
5000
Gateway:
192.168.0.1
User/Password
Admin/Admin
Factory Reset
Recessed Button
Press and hold while powering the device.
Protocol 3000:
“#factory” command.
Web Pages:
In the Settings page, click Reset.
