Kramer KDS-SW2-EN7 User Manual

Kramer Electronics Ltd.
KDS-SW2-EN7 – Using KDS-SW2-EN7 Embedded Web Pages
19
To Browse the KDS-SW2-EN7 Web Pages:
1. Open your Internet browser.
2. Type the IP number of the device in the Address bar of your browser. For example, the
default IP number:
. The Login window appears.

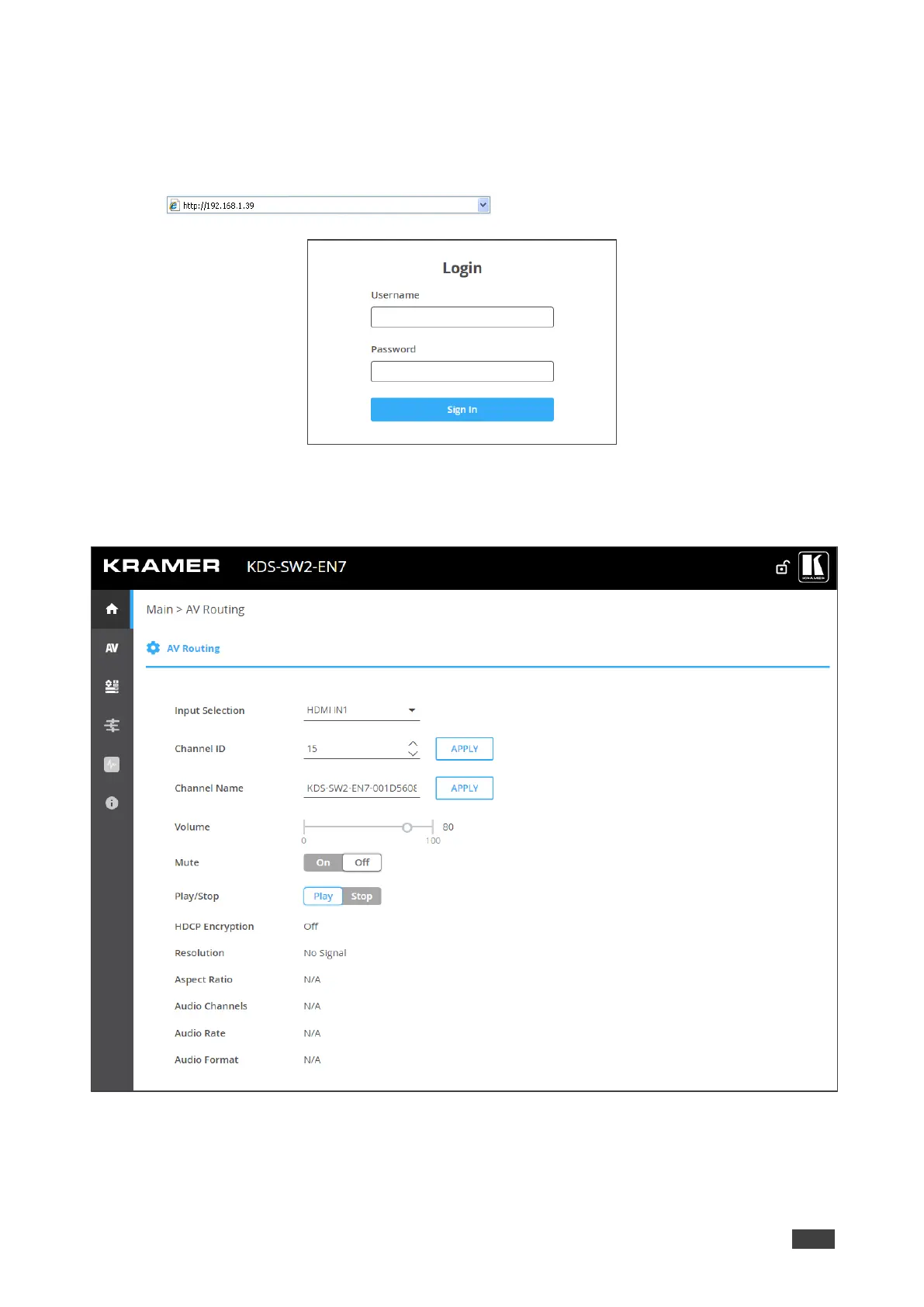

Figure 11: Login Window
3. Enter the Username and Password (Admin/Admin, by default).
The KDS-SW2-EN7 page appears.
Figure 12: Controller Application Page with Navigation List on Left
4. Click the tabs on the left side of the screen to access the relevant web page.

Kramer KDS-SW2-EN7 Specifications

General

Brand	Kramer
Model	KDS-SW2-EN7
Category	Media Converter
Language	English
