Viewing KDS-SW2-EN7 Status
View the device status.
To view device status:
1. In the Navigation pane, click Diagnostics. The Status tab appears.

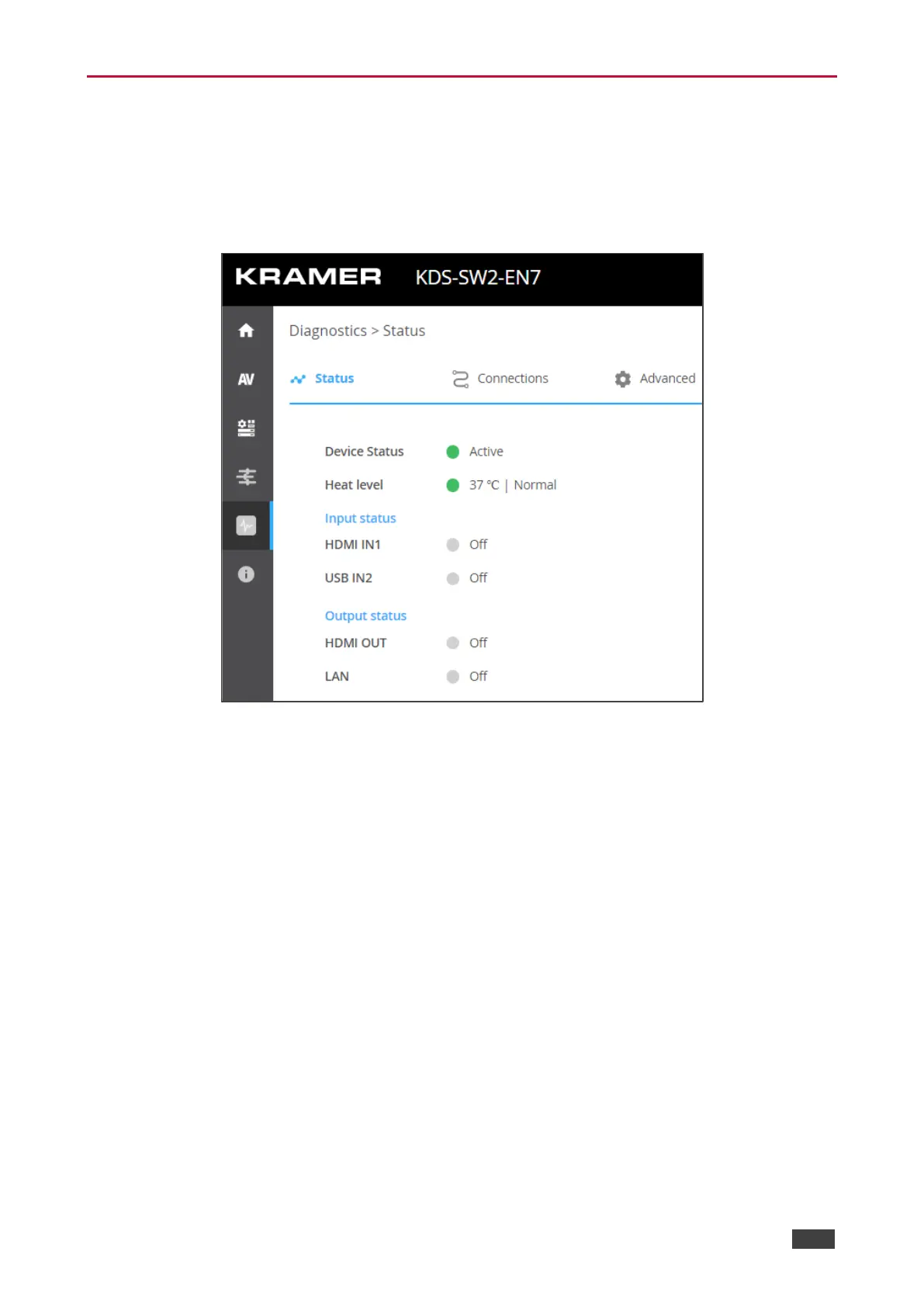

Figure 33: Diagnostics – Status Tab
2. View the Device Status:
▪ Active, for normal operation (green indication).
▪ Standby, when device is powered Off, booting or in standby mode (yellow
indication).
3. View device internal heat status:
▪ Normal, for temperatures under 45°C (green indication).
▪ High, for temperatures between 45°C and 60°C (orange indication).
▪ Overheat, for temperatures higher than 60°C (red indication).
4. View the status for each input:
▪ On, when the input has a valid signal and is transmitting a signal (green indication).
▪ Off, when an input is not connected or there is no valid signal (gray indication).
5. View HDMI OUT and LAN output status:
▪ On, when an output is transmitting a signal (green indication).
▪ Off, when an output has no signal output (gray indication).
Device status is viewed.
