Kramer SID-X1N

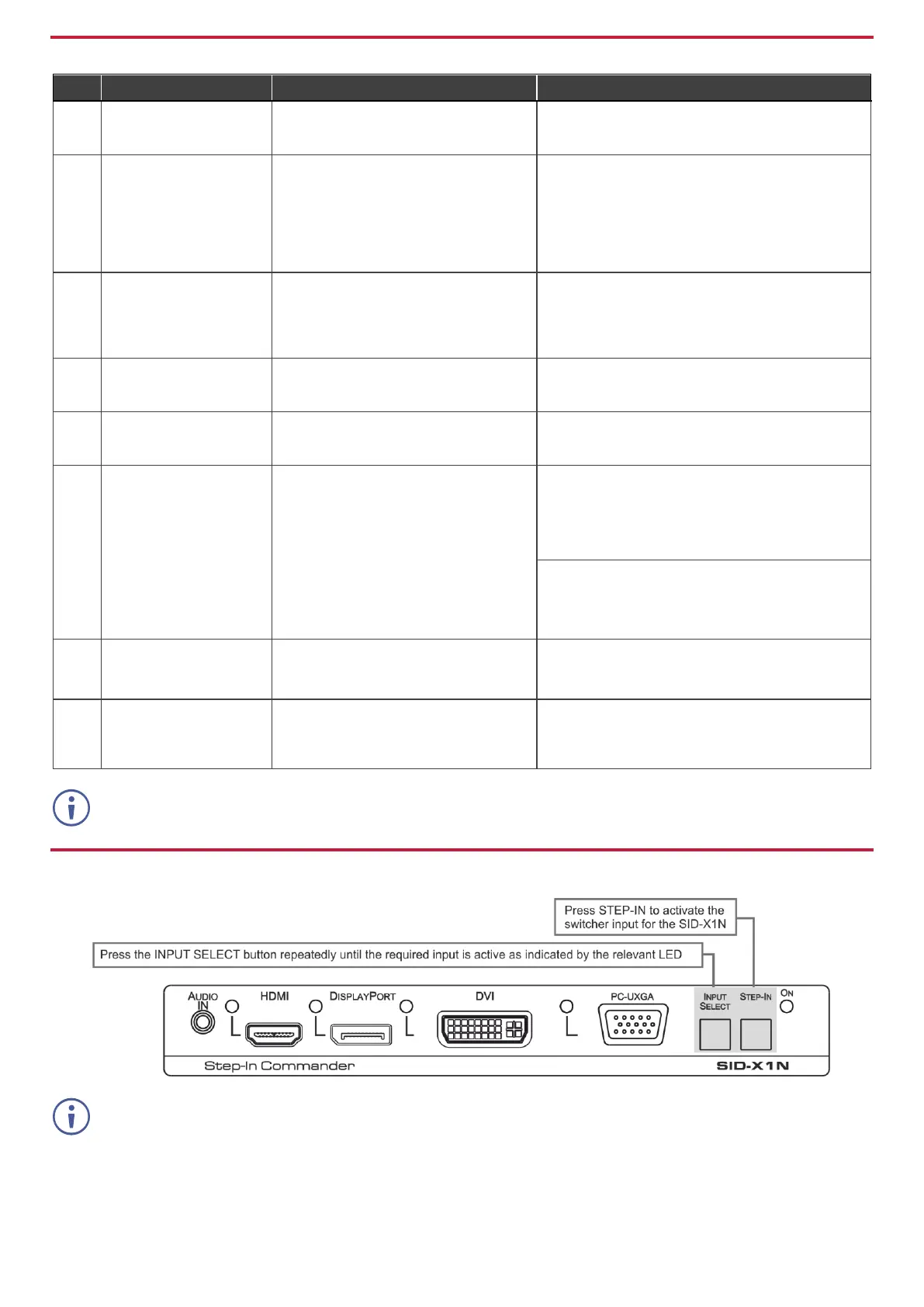

Step 6: Set DIP-switches
#
Feature
Function
DIP-switch
1
Program
Enables firmware updates
On—Enable updating
Off—Disable updating
2
General audio control
Selects whether the analog audio is
embedded in the outputs
On—Use embedded audio for HDMI and DP; the
audio selection for DVI is selected by DIP-switch 3
Off—The HDMI, DVI and DP inputs use the analog
audio signal if a 3.5mm audio jack is inserted into
the analog audio input. If no jack is inserted, they
use their embedded audio signals
3
DVI audio control
(active only when DIP-
switch 2 is on)
Selects whether the analog audio is
embedded in the DVI signal
On—When switch #2 is on, the analog audio signal
is used with the DVI input
Off—When switch #2 is off, the embedded audio
signal is used in the DVI input
4
Video mode input
selection
Sets the video input selection mode to
either last connected or manual
On—Last connected
Off—Manual
5
Lock EDID
Locks the current EDID
On—Locked EDID
Off—Automatic EDID selection
6
Switching delay
Selects the time delay before switching
occurs when an input signal is lost.
Note: The delay is independent of the
input switching mode
When the input signal is lost but the cable is not
removed:
On—0.5 seconds
Off—10 seconds
When the cable is removed:
On—0.5 seconds
Off—3 seconds
7
Output disable delay
Sets the delay time between loss of the
input signal and output/PowerConnect
shutdown
On—1 minute
Off—15 minutes
8
Output Power Control
Enables/disables the output power when
the input signal is lost
On—Power is always on
Off—Power is disabled when input signal is lost
after delay set by DIP-switch 7
DIP-switch 2 must be set to ON to enable DIP-switch 3 to control the DVI audio mode selection.
Step 7: Operate SID-X1N
Optional: Lock the current EDID if required.
