To rack mount the machine, attach both rack ears (by removing the
screws from each side of the machine and replacing those screws
through the rack ears) or place the machine on a table.
• Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the device.
• Avoid uneven mechanical loading.
• Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of the circuits.
• Reliable earthing of rack-mounted equipment should be maintained.

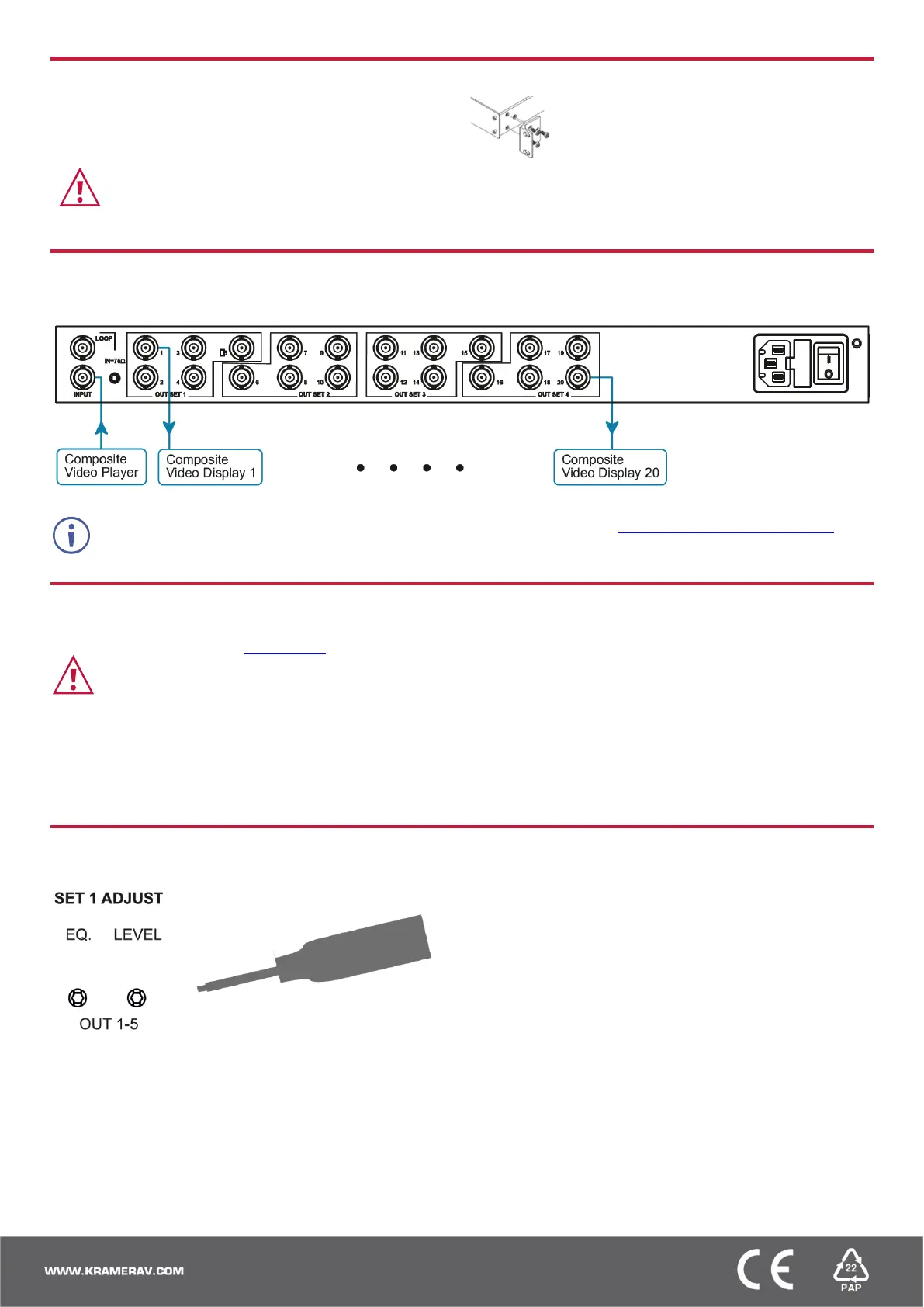

Step 4: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your VM-1021N.
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VM-1021N.
Using third-party cables may cause damage!
Step 5: Connect power
Connect the power cord to VM-1021N and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the
terminal or in the User Manual.
• There are no operator serviceable parts inside the unit.
Warning:
• Use only the power cord that is supplied with the unit.
• Disconnect the power and unplug the unit from the wall before installing.
• Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.
• To ensure continuous risk protection, replace fuses only according to the rating specified on the product label which located on the
bottom of the unit.
Step 6: Operate VM-1021N
Adjust the EQ and the LEVEL as needed with a small screwdriver.
