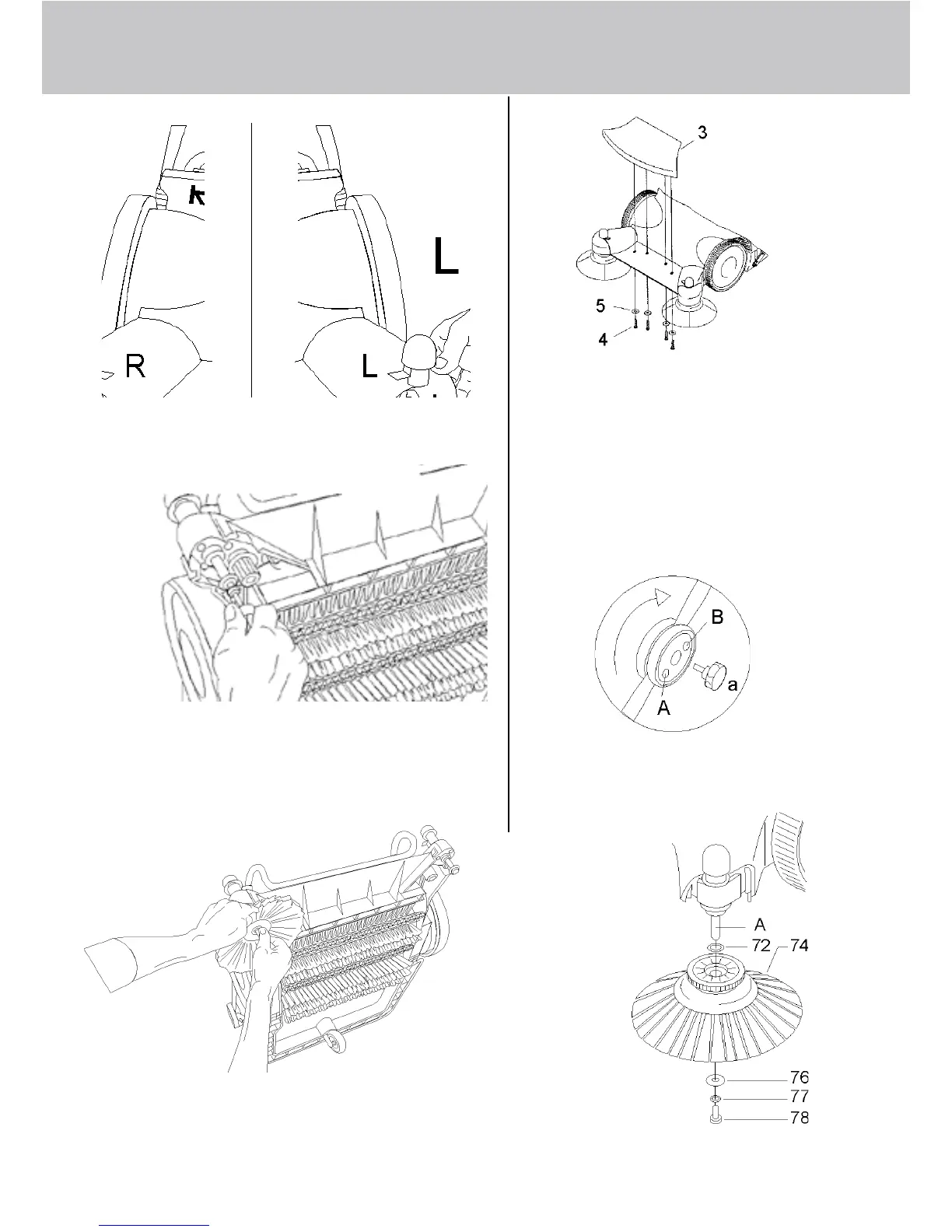

Assembly of side brushes and push handle
Nowpressthesafetycapsfromabove,makingsure
thattheyareattachedtothecorrectsides(engraved
rightandleft).
Loosenthefourplasticscrews(4)onthe
undersideofthedustspoiler(3)andplace
thescrewswiththeplainwasher(5)onthe
ground.
Pressthespoilerfromthetopontothe
housing.Nowturnthescrewswiththeplain
washerfrombelowthroughtheholesinthe
housingintothespoiler.Nowtightenthe
screws.
Fixthepushbarintotheworkpositionin
hole(A)usingthestarscrewsprovided(a).
Firstplacewasherno.72onsidebrushno.74abovetheballbearingand
placebothonbearingboltA.Tightenthescrewwithsafetywashersno.76
andno.77intothebolt.
Foldbackthehandleonthemachine.Nowputthe
sweeperupsidedownonthegroundand,remove
thescrewfromthebrassaxleoftheinletbrush.
