DM4E, DM4, DM4 DL Operating Manual
Page 6
1.0 Introduction
Dual Element Thickness Measurement
The time needed for the pulse to make this round trip is divided
by two and multiplied by the velocity of sound in the material
under test. The result is the thickness of the material.

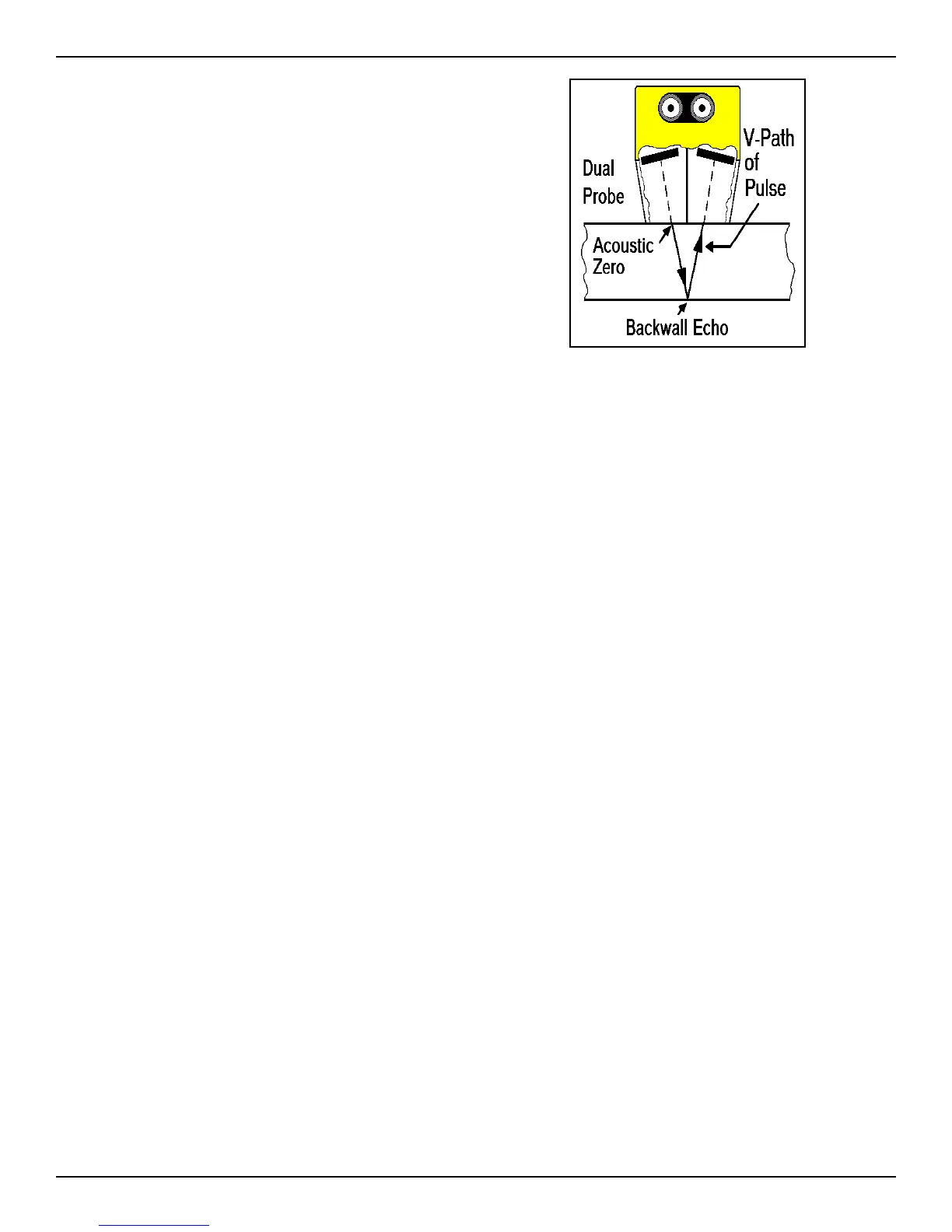

The figure at right illustrates the pulse-echo principle of ultrasonic
thickness measurement.
