CONNECTIONS

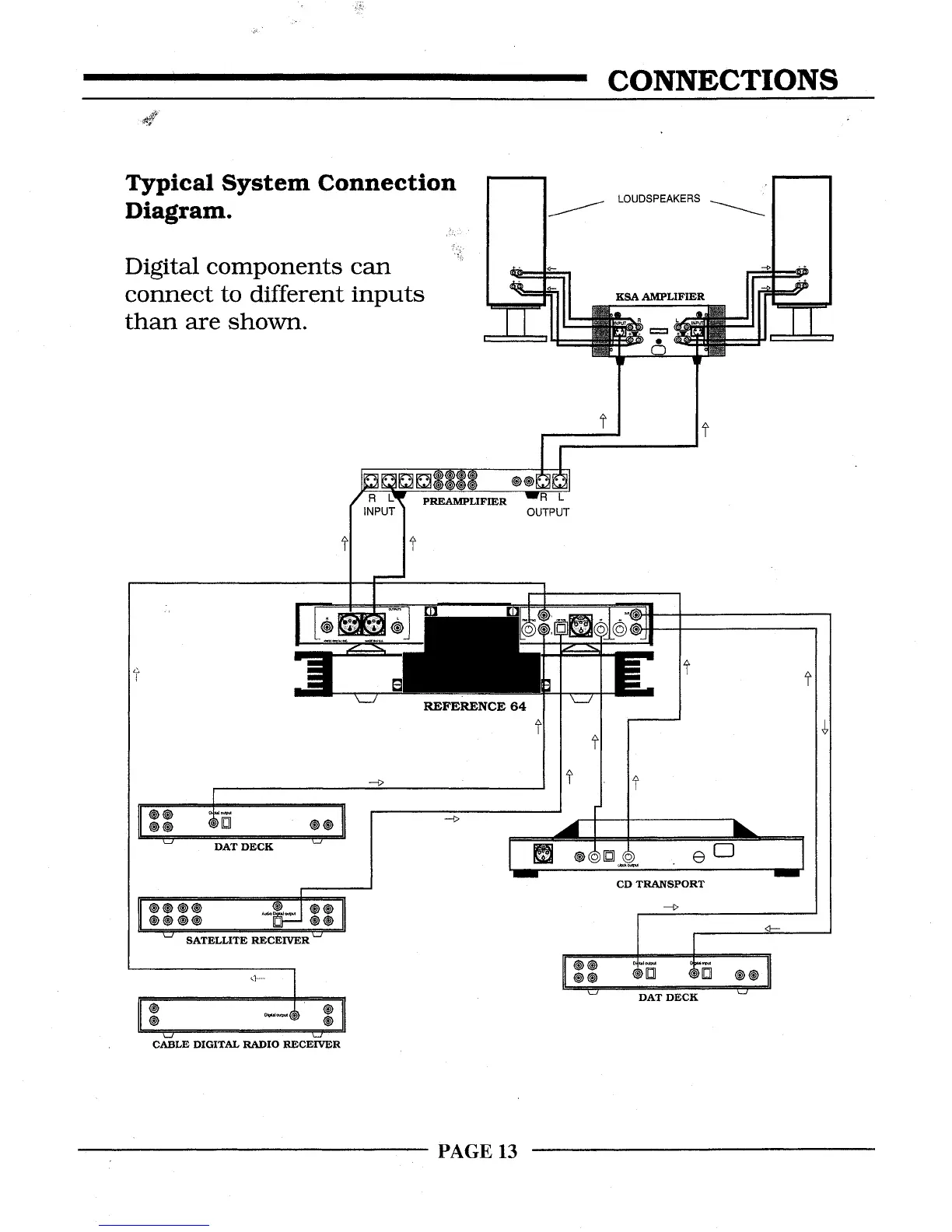

Typical System Connection
Diagram.
Digital components can
connect to different inputs
than are shown.
LOUDSPEAKERS
KSA AMPLIFIER
PREAMPLIFIER
~R L
OUTPUT
REFERENCE 64
I
DAT DECK
I
SATELLITE RECEIVER
il
CD TRANSPORT
DAT DECK
