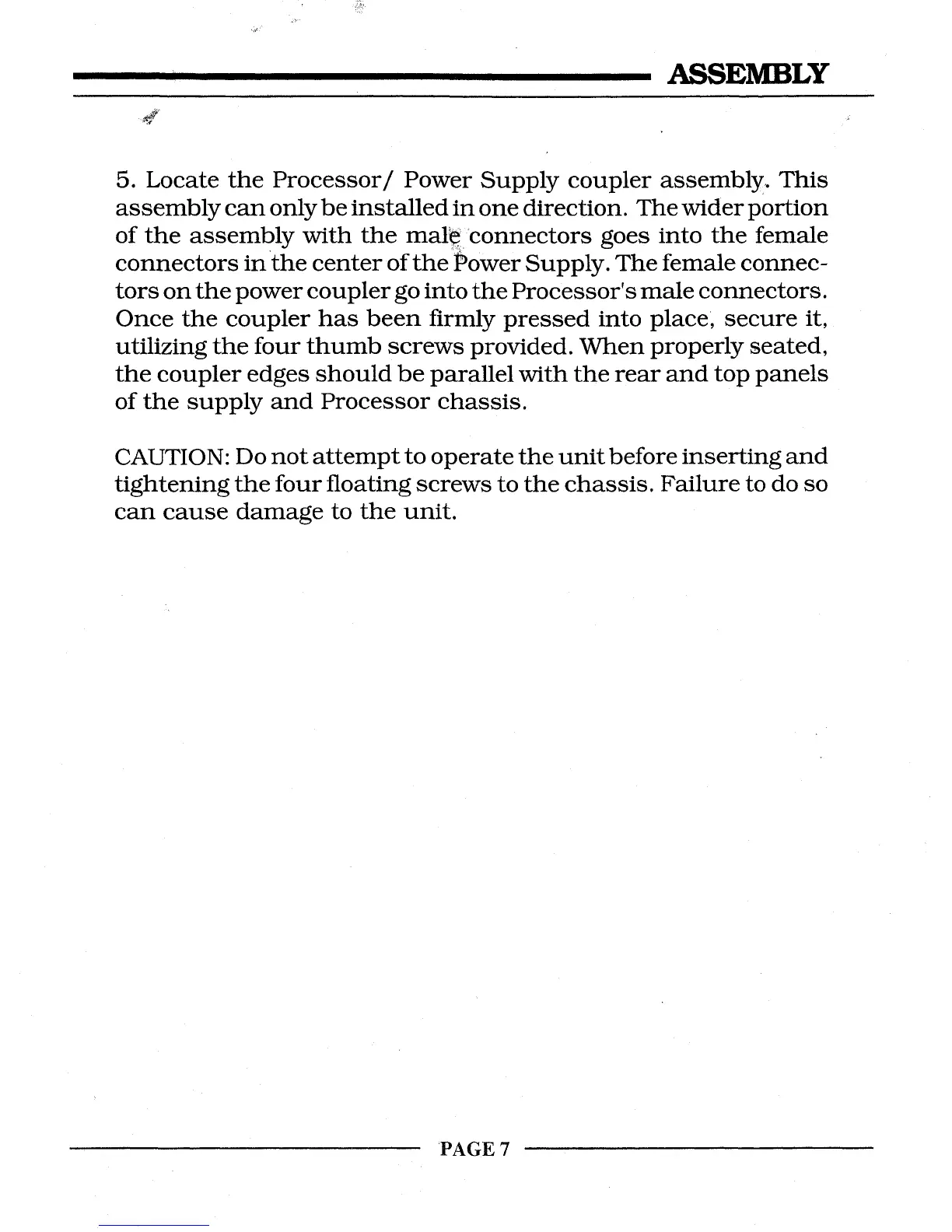

ASSEMBLY
5. Locate the Processor/ Power Supply coupler assembly. This
assembly can only be installed in one direction. The wider portion
of the assembly with the mal~ connectors goes into the female
connectors inthe center of the Power Supply. The female connec-
tors on the power coupler go into the Processor’s male connectors.
Once the coupler has been firmly pressed into place; secure it,
utilizing the four thumb screws provided. When properly seated,
the coupler edges should be parallel with the rear and top panels
of the supply and Processor chassis.
CAUTION: Do not attempt to operate the unit before inserting and
tightening the four floating screws to the chassis. Failure to do so
can cause damage to the unit.
’PAGE 7
