9 Related Documents
9.1 General assembly drawings with list of components
9.1.1 Cartridge seal C022/025M1-4STQ
412.57
412.58
562.53
476
475.53
523
472.52
50-3.52
474.52 473 932.59 472.55 562.55
474.55
441
411.56
550
412.53
500
412.52 412.59
477.52
412.55
477.55
412.56

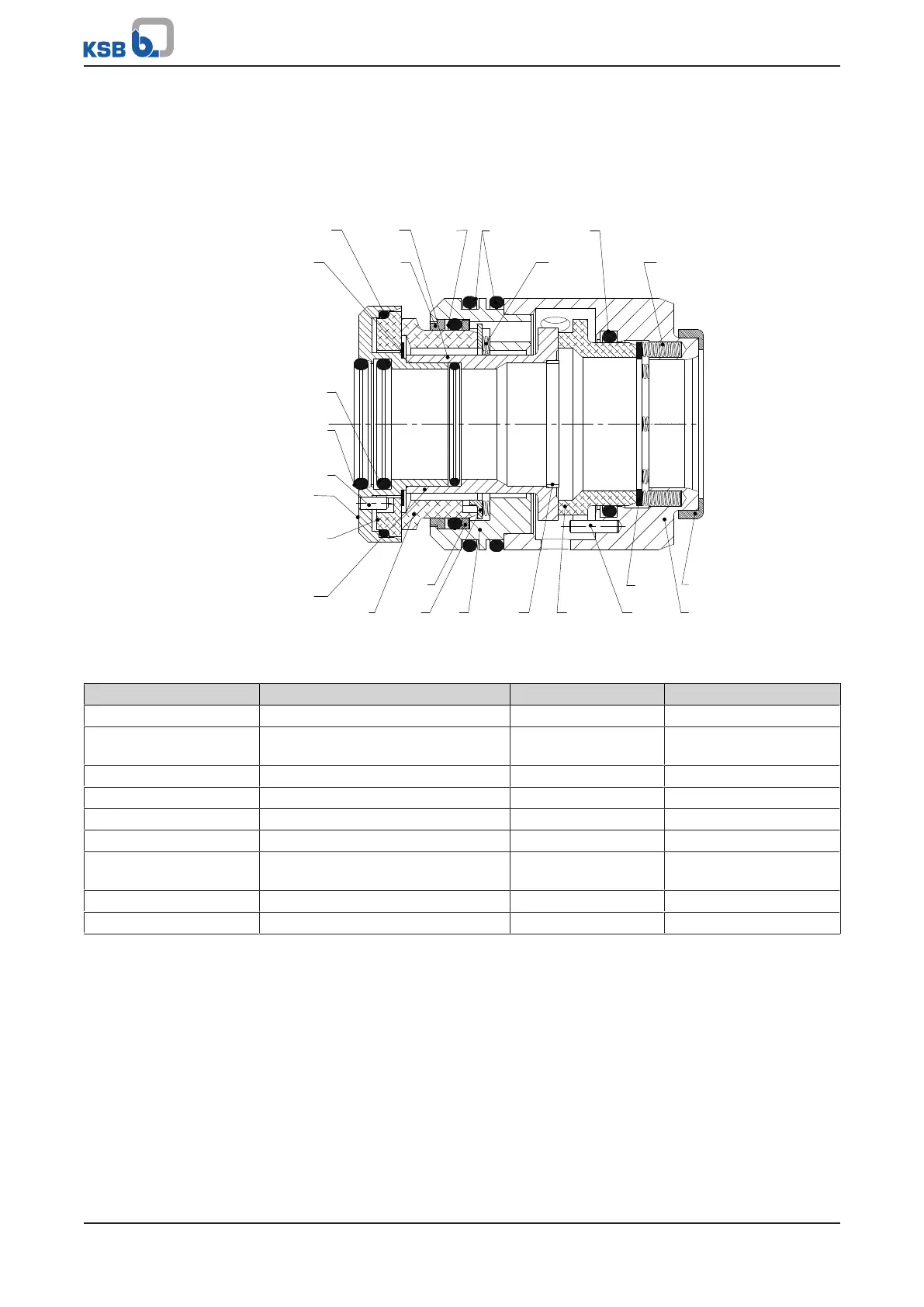

Fig.15: Sectional drawing
Table7: List of components
Part No. Description Part No. Description
411.56 Joint ring 487 Mating ring carrier
412.52/.53/.55/.56/.57/.58/.
59
O-ring 50-3.52 Backing ring
441 Shaft seal housing 500 Ring
472.53/.55 Primary ring 550 Disc
473 Primary ring carrier 562.52/.55 Parallel pin
474.53/.55 Thrust ring 904.53 Grub screw
475.52 Mating ring 914.52 Hexagon socket head cap
screw
476 Mating ring carrier 932.52/.53/.59 Circlip
477.53/.55 Spring for mechanical seal 940 Key
