Power

Management

System

Mode

Power

Consumption

Normal

Operation

|

s54W

Standby

=05W

Remark:

All

technical

specifications

in

the

User

Guide and

on

the

external

packing

are

allowed

to

change

without

prior

notice.

If

there

is

a

subtle

difference

between

the

User

Guide and

the

actual

operation,

the

latter

shall

prevail.

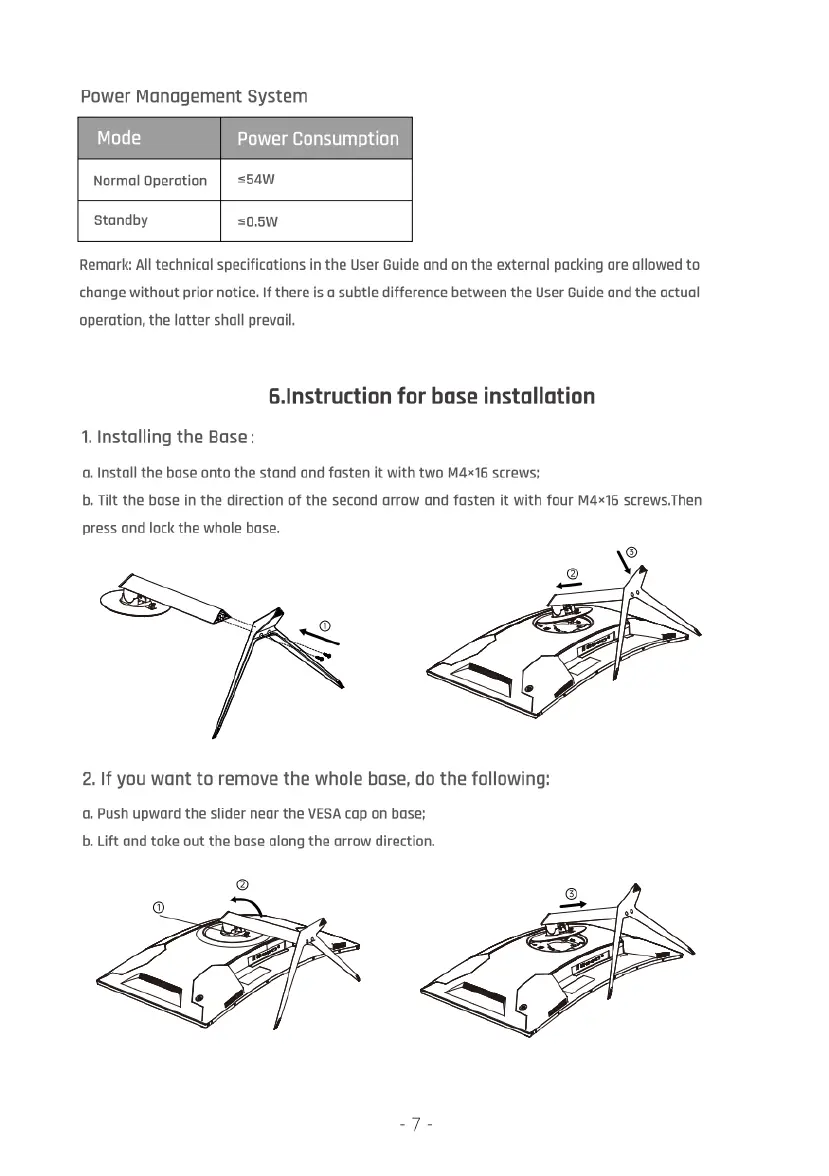

6.Instruction

for

base

installation

1.

Installing

the

Base:

a.

Install

the

base

onto

the

stand

and fasten

it

with

two

M4x16

screws;

b.

Tilt

the

bose

in

the

direction

of

the

second

arrow

and

fasten

it

with

four

M4x16 screws.Then

press

and

lock

the

whole

base.

2.1f

you

want

to

remove

the

whole

base,

do

the

following:

0.

Push

upward

the

slider

near

the

VESA

cap

on

base;

b.

Lift

and

take

out

the

base

along

the

arrow

direction.
