KTM 2016 RC 390 User Manual

14 WHEELS, TIRES 115
M00463-10
–

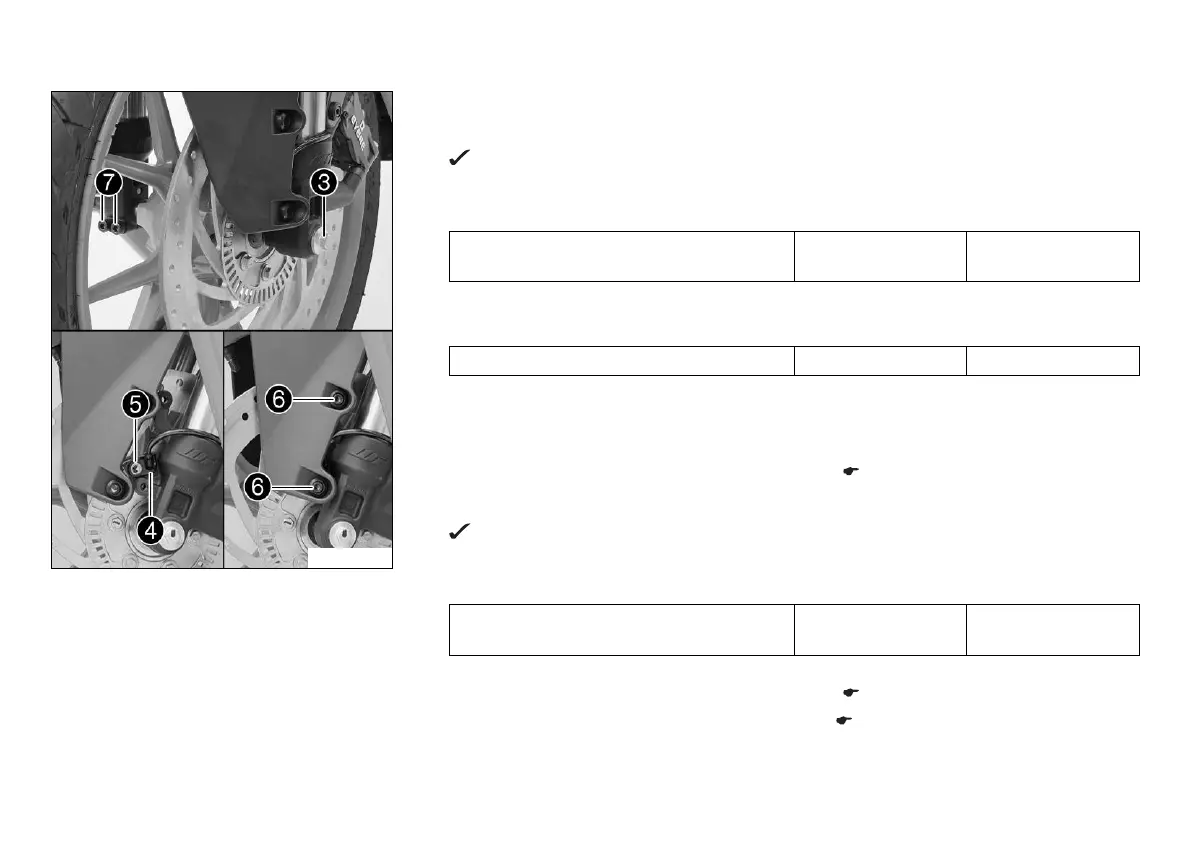

Clean the thread of the wheel spindle and screw

.
– Position the front wheel and insert the wheel spindle.
The brake linings are correctly positioned.
–
Mount and tighten screw

.
Guideline
Screw, front wheel spindle M8 26 Nm
(19.2 lbf ft)
–
Position wheel speed sensor

in the drill hole. Mount and tighten screw

.
Guideline
Screw, wheel speed sensor holder M6 7 Nm (5.2 lbf ft)
–
Mount and tighten screws

.
– Operate the hand brake lever repeatedly until the brake linings are in contact with the
brake disc and there is a pressure point.
– Take the motorcycle off of the front wheel stand. ( p. 80)
– Pull the front brake and compress the fork forcefully a few times.
The fork legs straighten.
–
Tighten screws

.
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
Finishing work
– Take the motorcycle off of the front wheel stand. ( p. 80)
– Take the motorcycle off of the rear wheel stand. ( p. 78)

KTM 2016 RC 390 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Power	32 kW (44 hp) @ 9, 500 rpm
Torque	35 Nm @ 7, 250 rpm
Transmission	6-speed
Rear Suspension	WP monoshock
Rear Brake	230 mm disc, single-piston caliper
Front Tire	110/70 ZR17
Rear Tire	150/60 ZR17
Seat Height	820 mm
Fuel Tank Capacity	10 liters
Dry Weight	147 kg
Ground Clearance	178.5 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Electronic Fuel Injection
Front Suspension	WP USD 43 mm
ABS	Bosch 9MB Two-Channel ABS
Frame	Steel trellis frame
Front Brake	300 mm disc, 4-piston radial caliper
