KTM 690 LC4 2007 - Right Side of the Engine

4-3
1
2
3
4
5
6
7
8

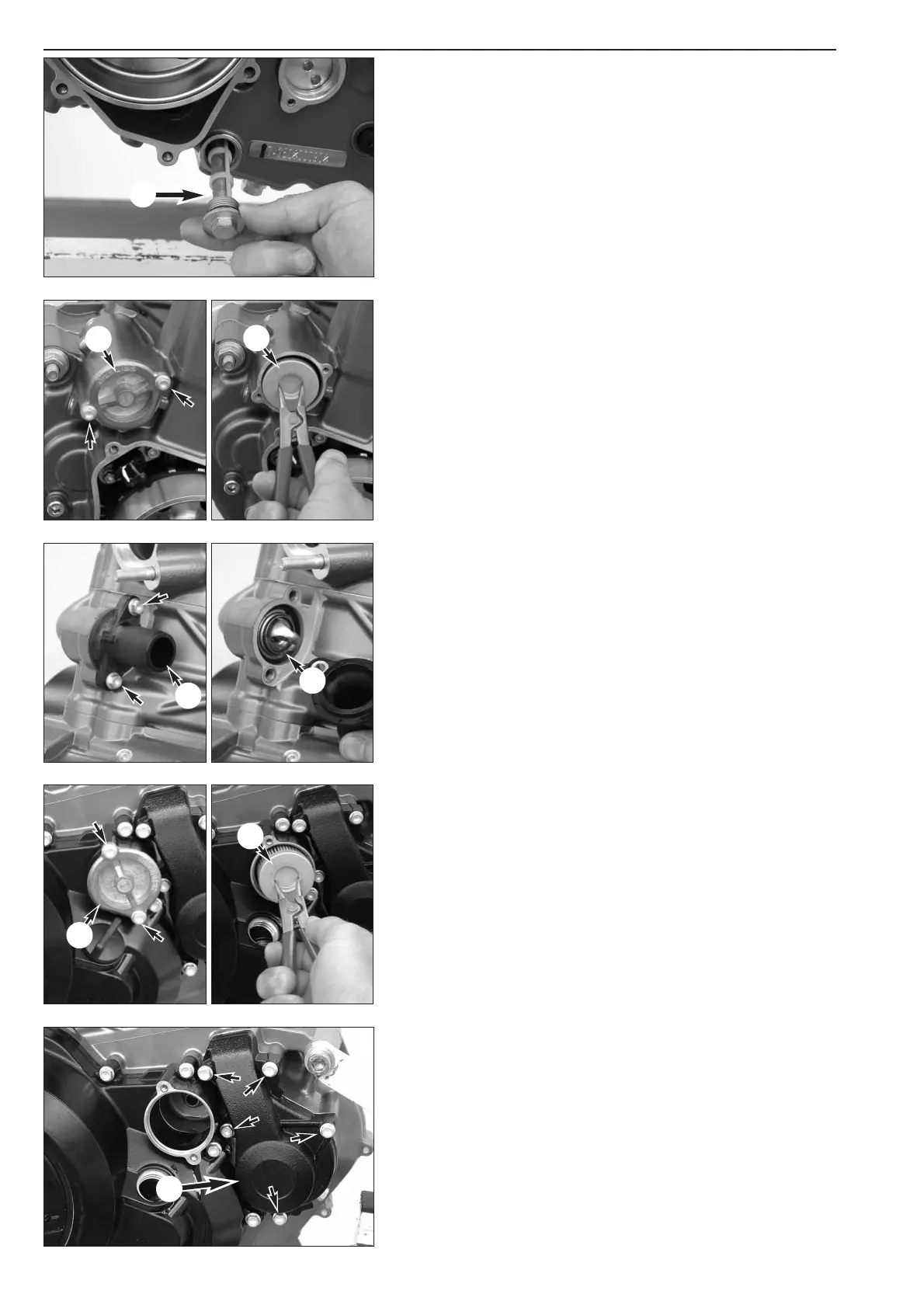

– Loosen the plug (A/F 13 mm) and pull out together with the oil
screen
1.
– Pull the oil screen out of the plug, remove and discard all of the O-
rings.
– Remove the screws and oil filter cover
2, discard the O-ring.
– Pull out the oil filter
3 with circlip pliers and discard.
– Remove the screws and take off the thermostat connection
4, being
careful not to lose the collar bushings.
– Pull out the thermostat
5, discard the gasket.
Right side of the engine
– Unscrew the oil filling plug and remove.
– Remove the screws and take off the oil filter cover
6, discard the O-
ring.
– Pull out the oil filter
7 with circlip pliers and discard.
– Remove the screws and take off the water pump cover
8.
