2 SETUP 4
600646-01

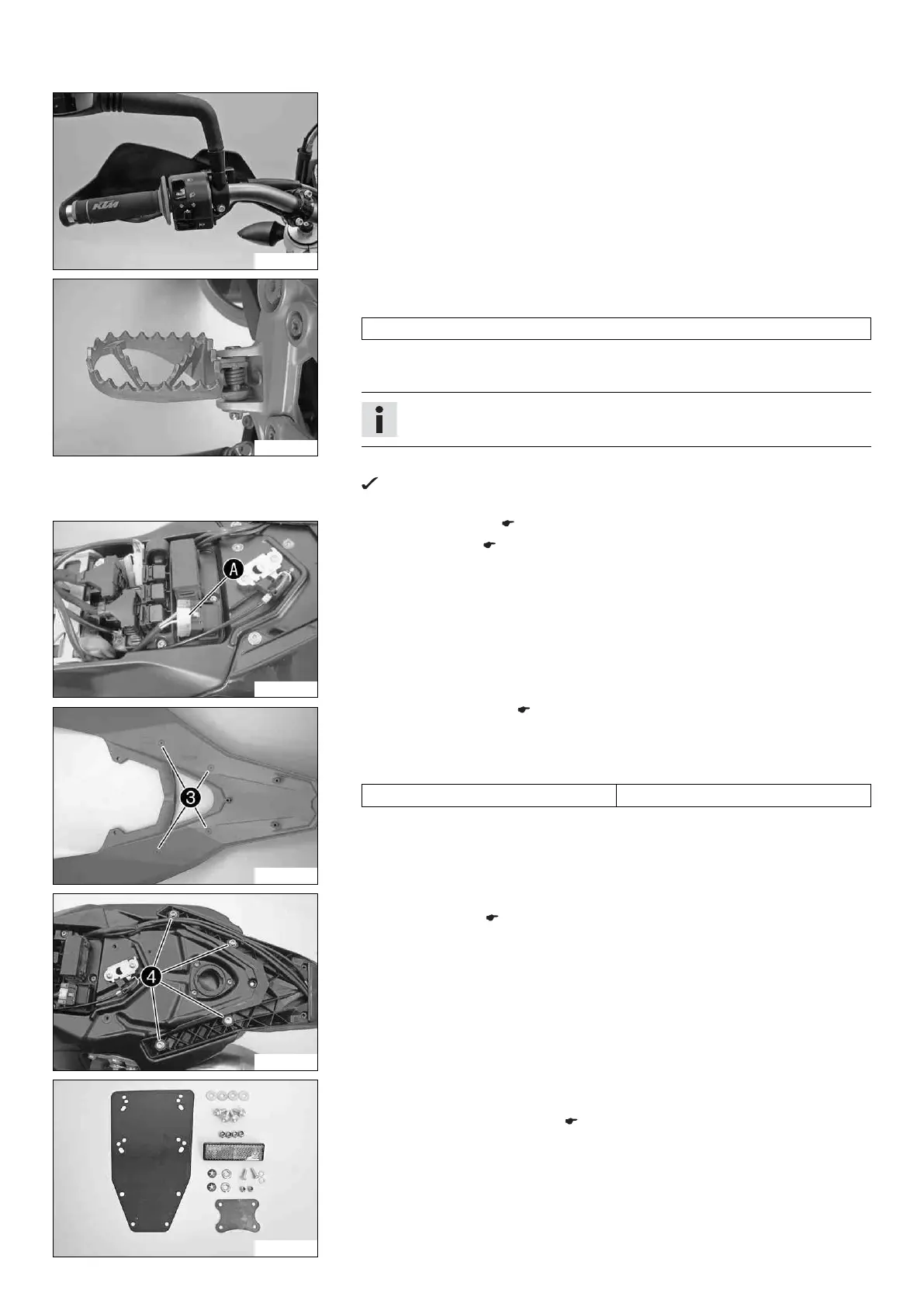

– Mount and tighten the rear mirror adapter and rear mirror on both sides.
– Position all controls in their exact positions on the handlebar. Tighten all screws.
– Mount and tighten screw M8 of the right hand guard.
100308-01
– Mount the footrests with the springs and bolts. Secure the bolts using the washers
and pins.
Pliers for footrest spring (58429083000)
– Remove the protective plastic.
– Carefully loosen and remove the tensioning belt over the link fork.
Info
An assistant prevents the motorcycle from falling over.
– Carefully loosen and remove the tensioning belts around the lower triple clamp.
The vehicle is released at the front.
– Together with an assistant, take the vehicle off the pallet.
201925-10
– Recharge the battery. ( p. 7)
– Install the battery. ( p. 8)
– Plug in connector A.
100312-10
– Remove the rear fairing. ( p. 9)
– Four markings 3 are found on the underside of the rear fairing. At these location,
drill holes to the specified diameter in three stages.
Guideline
Hole diameter for grab handles 14.50 mm (0.5709 in)
100313-10
– Remove screws 4.
– Fit the rear fairing. ( p. 9)
201901-10
– Mount the reflector.
Operation as a 2-seater
– Fit the rear footrest bracket. ( p. 9)
