Kubota 05 Series Repair Manual

DIESEL ENGINE 05 SERIES WSM, 01640
I
~
i i1790~10450
~

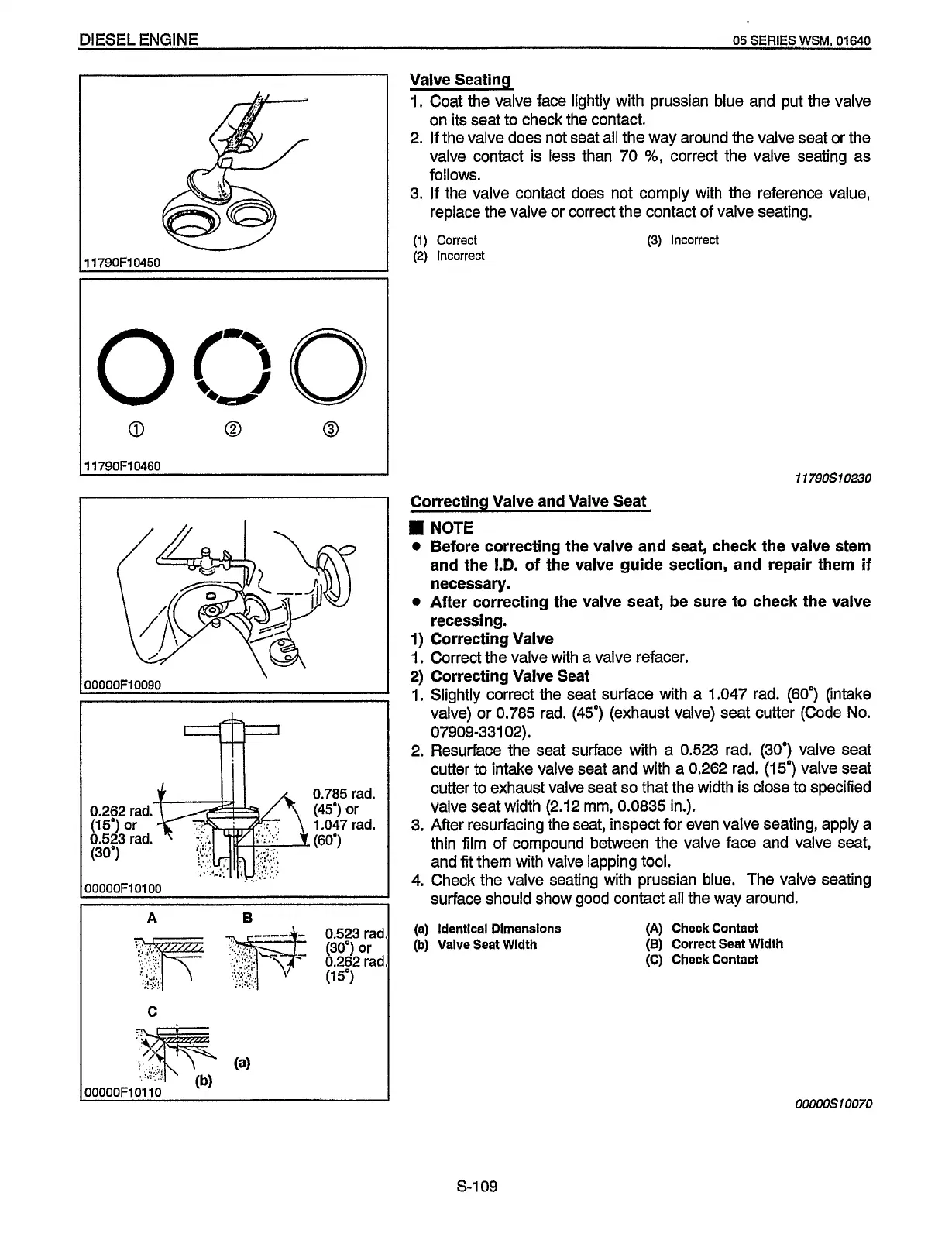

Valve Seating
1. Coat the valve face lightly with Prussian blue and put the valve
on its seat to check the contact.
2. If the valve does not seat all the way around the valve seat or the
valve contact is less than 70
%, correct the valve seating as
follows.
3. If the valve contact does not comply with the reference value,
replace the valve or correct the contact of valve seating.
(1) Correct (3) Incorrect
(2) Incorrect
I11790F10460
m
0.785 rad.
0.262 rad. (45') or
(15') or 1.047 rad.
0.523 rad. (60')
(303
1 OOOOOFl 01 00
A B
C
1 f 790S10230
Correcting Valve and Valve Seat
NOTE
Before correcting the valve and seat, check the valve stem
and the I.D. of the valve guide section, and repair them if
necessary.
0 After correcting the valve seat, be sure to check the valve
recessing.
1) Correcting Valve
1. Correct the valve with a valve refacer,
2) Correcting Valve Seat
1. Slightly correct the seat surface with a 1.047 rad. (60") (intake
valve) or 0.785 rad.
(45") (exhaust valve) seat cutter (Code No.
2. Resurface the seat surface with a 0.523 rad. (30') valve seat
cutter to intake valve seat and with a 0.262 rad.
(15") valve seat
cutter to exhaust valve seat
so that the width is close to specified
valve seat width
(2.12 mm, 0.0835 in.).
3, After resurfacing the seat, inspect for even valve seating, apply a
thin film of compound between the valve face and valve seat,
and
fit them with valve lapping tool.
07909-331 02).
4.
Check the valve seating-with Prussian blue. The valve
surface should show good contact all the way around.
(a) Identical Dlrnenslons
(b) Valve Seat Wldth
(A) Check Contact
(B) Correct Seat Wldth
(C) Check Contact
seating
00000Sl0070
s-109
