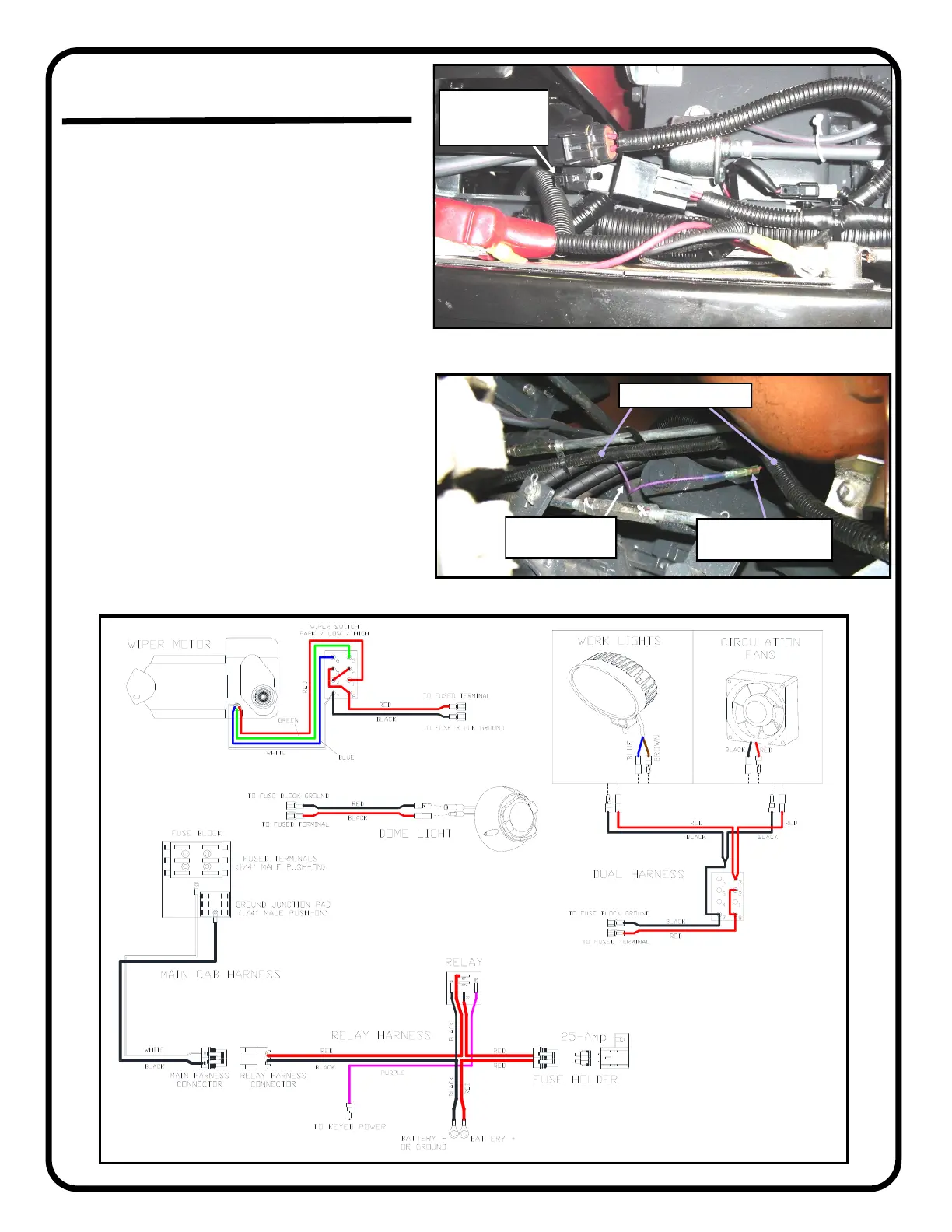

2. TRACTOR PREPARATION:
WIRING
TOOLS REQUIRED:
• Wire Cutters (for wire ties)
• 10mm Wrench or Socket
2.1 Remove the nuts from the tractor battery
terminals and attach the ring terminals from the
relay harness onto the battery. Connect red to
positive and then black to negative.
2.2 Using a wire tie, secure the relay and fuse
holder of the relay harness to a hole in the
frame, above and forward of the battery, as
shown in figure 2.2.
2.3 Work the relay harness toward the front of the
tractor, under the deck, and secure the relay
harness to the main vehicle harness using wire
ties.
NOTE: Removing the right side front wheel will allow
for better access to the frame for routing of the
relay harness.
2.4 Locate the female bullet terminal for keyed
power underneath the tractor, about a foot from
the front of the fender, under the steering
pedestal. Connect the male bullet terminal on
the purple wire from the relay harness to the
keyed power female bullet on the tractor.
2.5 Attach the end of the relay harness with the
weather-pack connector to the frame near the
right front mount.
Wire tie relay and
fuse holder to
frame here
Fig, 2.2: Relay harness to battery connection
Fig, 2.4: Keyed Power Terminal (view under right fender)
WIRE DIAGRAMS
Relay Wire Harness
Female bullet terminal
for keyed power
Purple wire from
Relay harness
P. 6 of 14
