Kubota G23 Assembly Instructions

16
ENGLISH

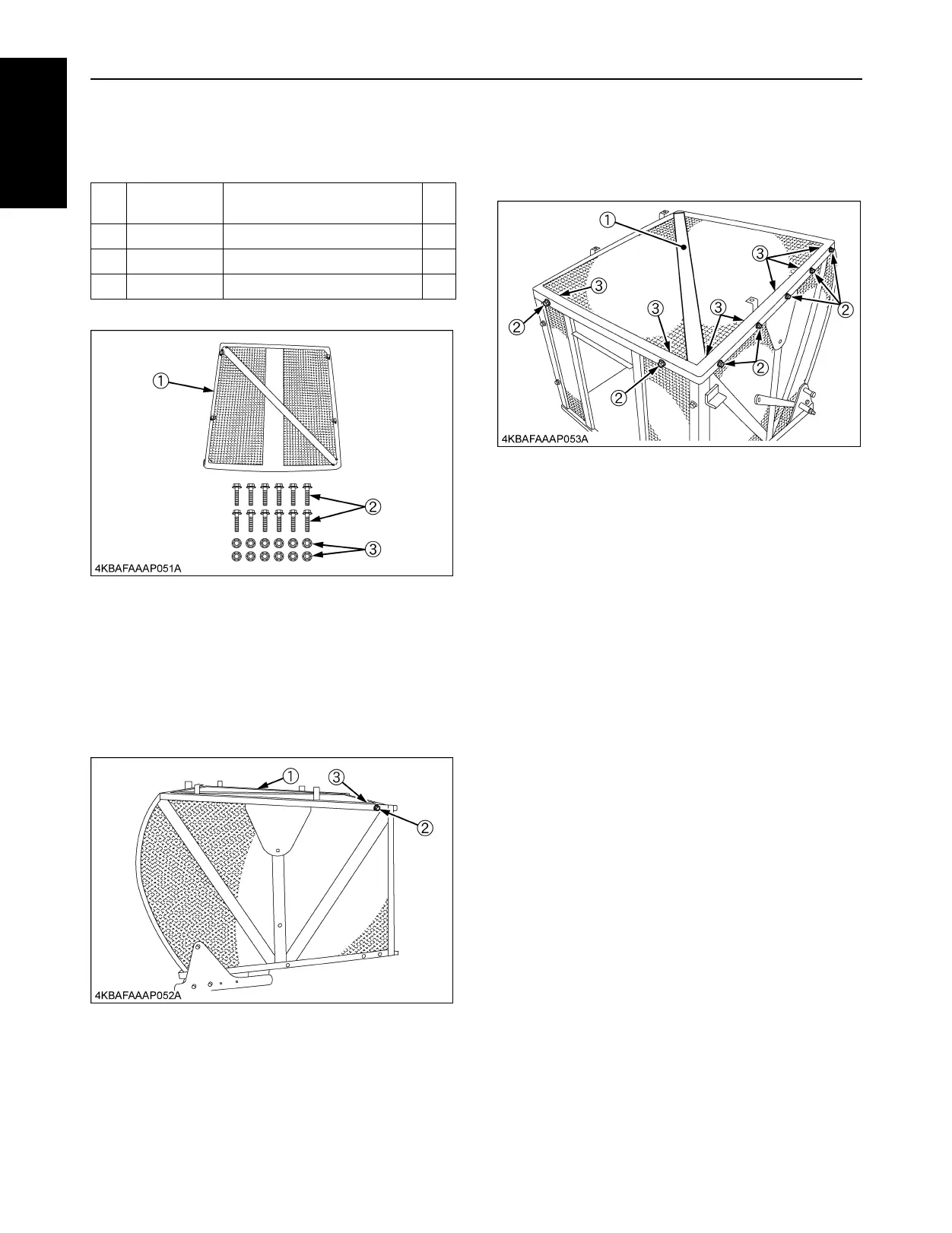

[5]FRAME, BAG TOP ASSY
BPARTS LIST
BASSEMBLE THE FRAME, BAG TOP
1. Place the top frame bag (1) to the top of the three
frame bags.
Secure the RH side with five flange bolts (2) from the
outside.
Then secure flange five bolts (2) with five flange nuts
(3) from the inside.
2. Insert seven flange bolts (2) from the outside into the
LH side and the front of the top bag frame. Then
secure those (2) with seven flange nuts (3) from the
inside.
Ref.
No.
Part Number Description Qty
(1) K6313-6373-2 FRAME, BAG TOP 1
(2) 01754-50835 BOLT, FLANGE 12
(3) 02751-50080 NUT, FLANGE 12
