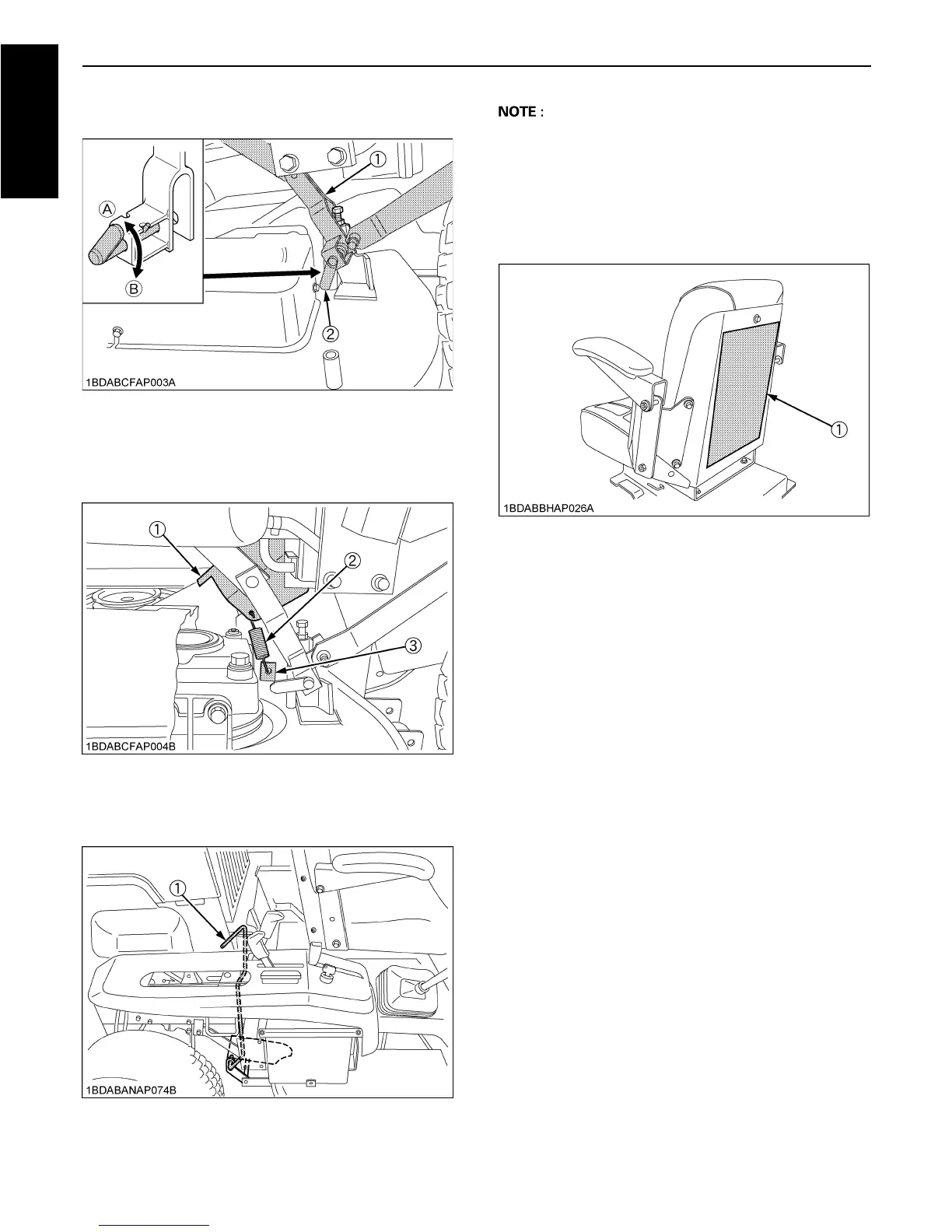

5. Align the rod of the link (1) with the mower's arm (2).
Lock them up together (for both sides).
[GZD15 only]
6. Hook the spring (2), which hangs the duct cover (1), to
the stay (3) on the mower deck.
7. Set the quick clean lever to the mower deck.
A For fitting the mower's universal joint, refer to the
Operator's Manual.
A For adjusting the mower's levelness, refer also to the
Operator's Manual.
BAttaching the Label
Attach the label to the backside of a seat.
(1) Link
(2) Mower's arm
(A) "UNLOCK"
(B) "LOCK"
(1) Duct cover
(2) Spring
(3) Stay
(1) Quick clean lever
(1) Label
