S-52
V3-E3B SERIES, V3-E3CB SERIES, V3-E3BG SERIES, WSM
DIESEL ENGINE

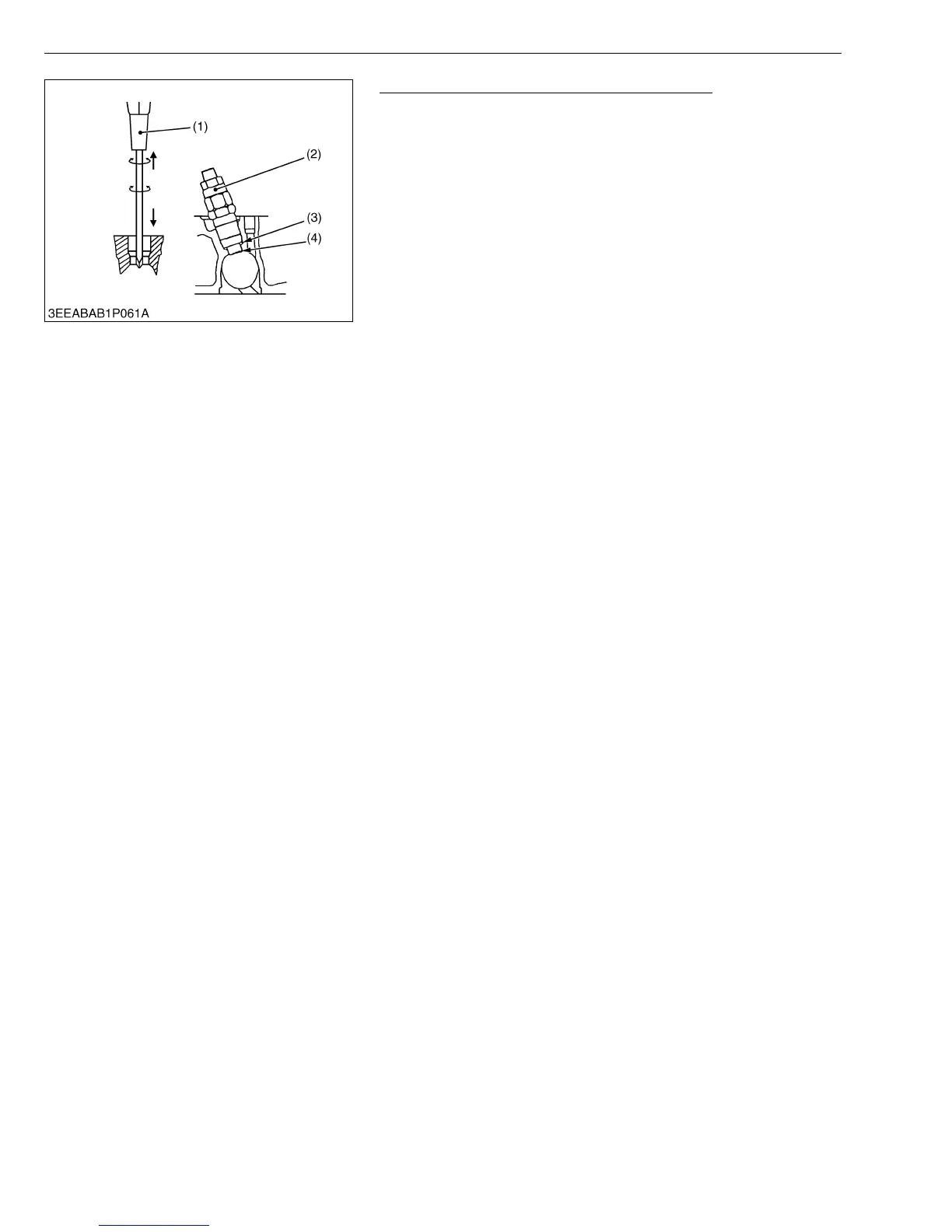

Nozzle Heat Seal Service Removal Procedure
[V3600-E3B, V3600-T-E3B, V3600-E3CB, V3600-T-E3CB,
V3300-E3BG, V3600-T-E3BG]
• Use a plus (phillips head) screw driver (1) that has a
diameter which is bigger than the heat seal hole (Approx. 6
mm (1/4 in.)).
1. Drive screw driver (1) lightly into the heat seal hole.
2. Turn screw driver three or four times each way.
3. While turning the screw driver, slowly pull the heat seal (4) out
together with the injection nozzle gasket (3).
4. If the heat seal drops, repeat the above procedure.
(When reassembling)
• Heat seal and injection nozzle gasket must be changed when the
injection nozzle is removed for cleaning or for service.
W1021255
(1) Plus Screw Driver
(2) Injection Nozzle
(3) Injection Nozzle Gasket
(4) Heat Seal
To Next Page
