If your kitchen’s chimney hole is at a diameter of 150 mm (i.e., it is wider than your pipe), you will
need to make the connection using the special adapter provided in the package. In this case, follow
the steps below:

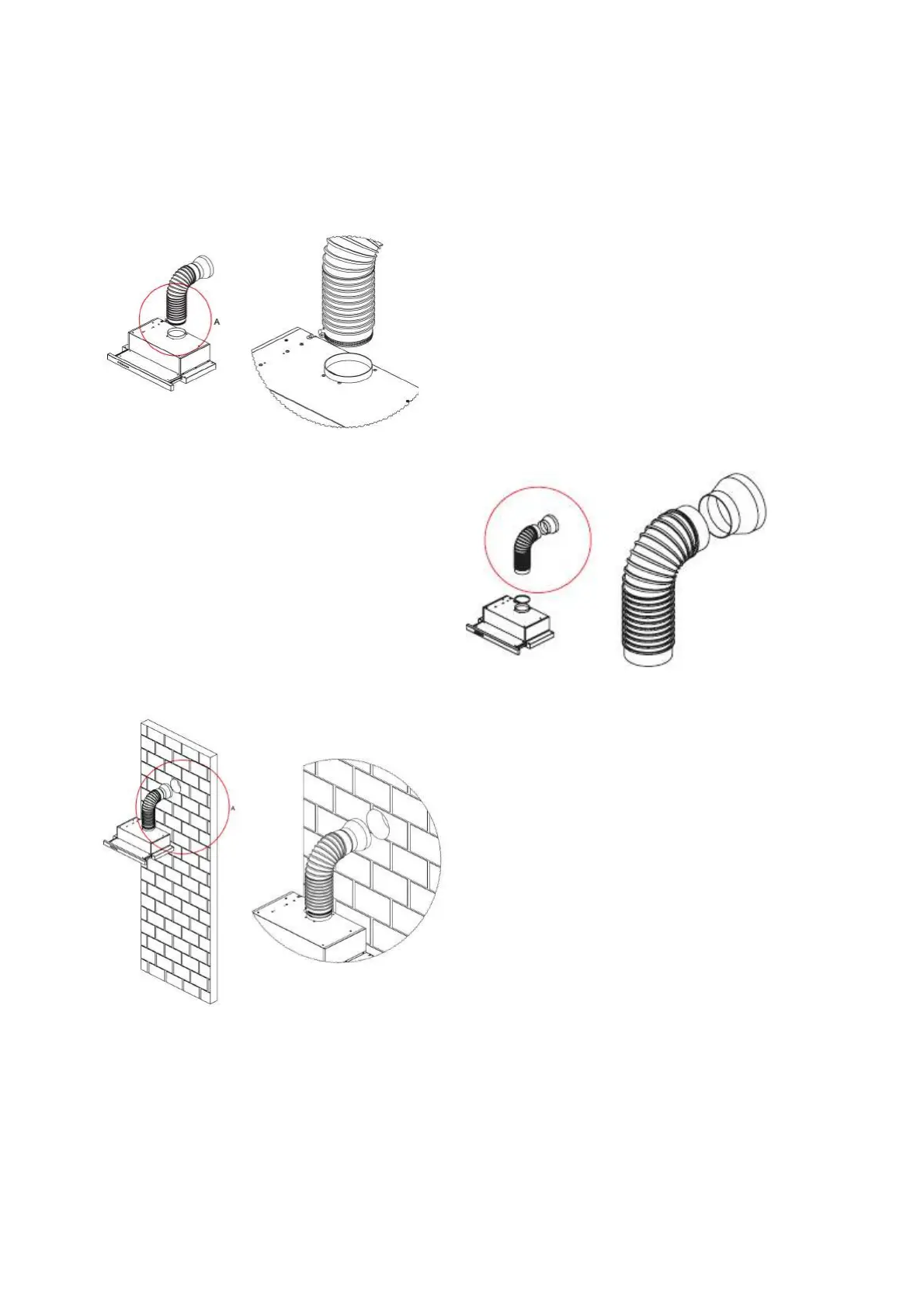

Figure 1
First, attach the 120 mm diameter pipe to the
motor outlet of the product. (Use the plastic
clamps that are provided with the product.)
Attach the adapter to the other tip of the pipe. Use
tape to strengthen the connection.
Figure 2
Figure 3
Now mount the pipe in the chimney hole.
Note: Types of pipes that are more flexible can have a
negative impact on the noise level of the product.
Use of semi-flexible aluminum pipe is recommended.
