22 / 81 Issued: 22.04.2016 Version: Spez KR 20-3 V2
KR 20-3
Working
envelope
The following diagrams show the shape and size of the working envelope for
these variants of this product family.
The reference point for the working envelope is the intersection of axes 4 and
5.

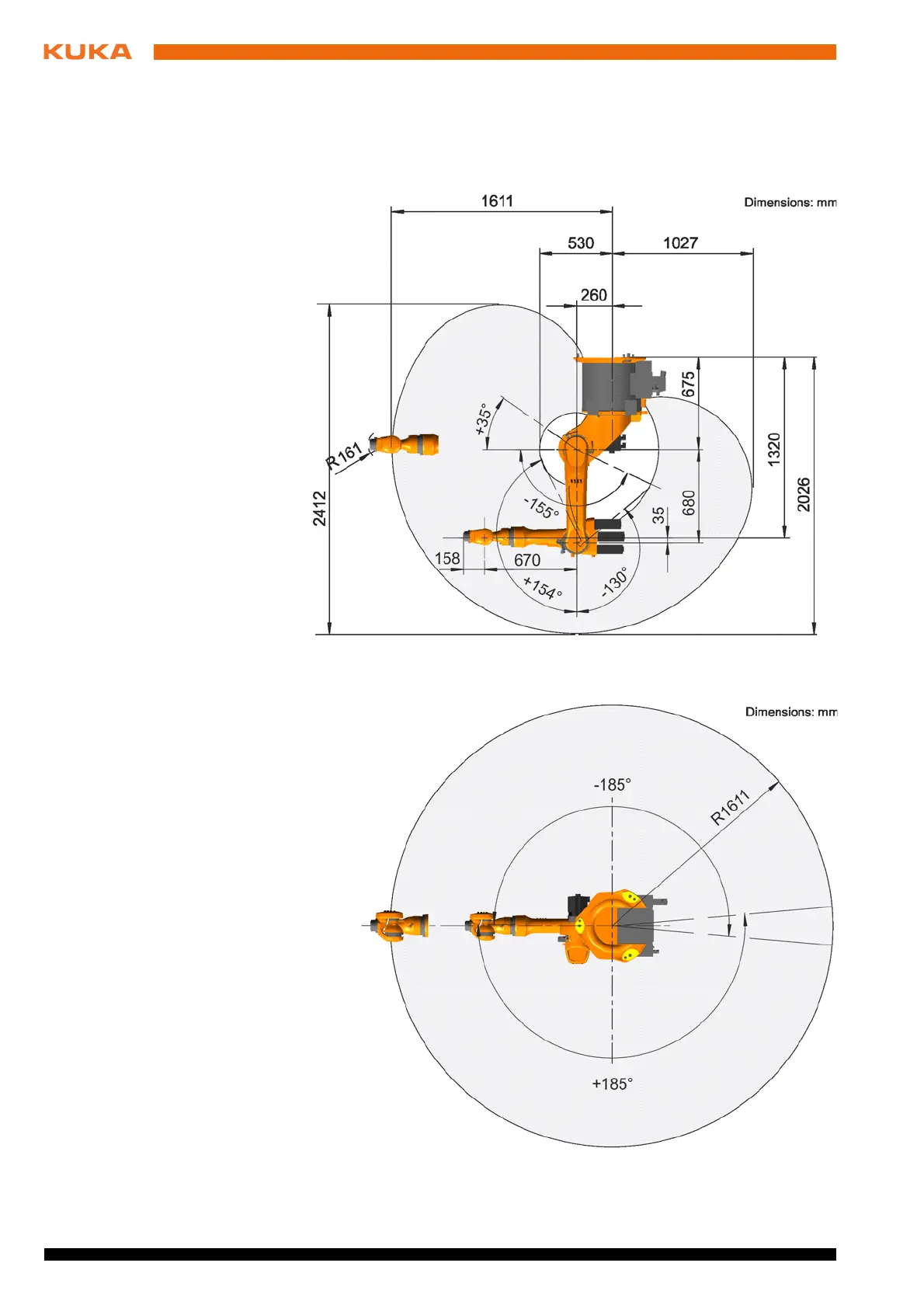

Fig. 4-9: Working envelope, side view, KR 20-3 C
Fig. 4-10: Work envelope, top view, KR 20-3 C
