26
© Küschall AG, Schweiz | 2012-07
Service manual
Options & accessories
Active antitipper

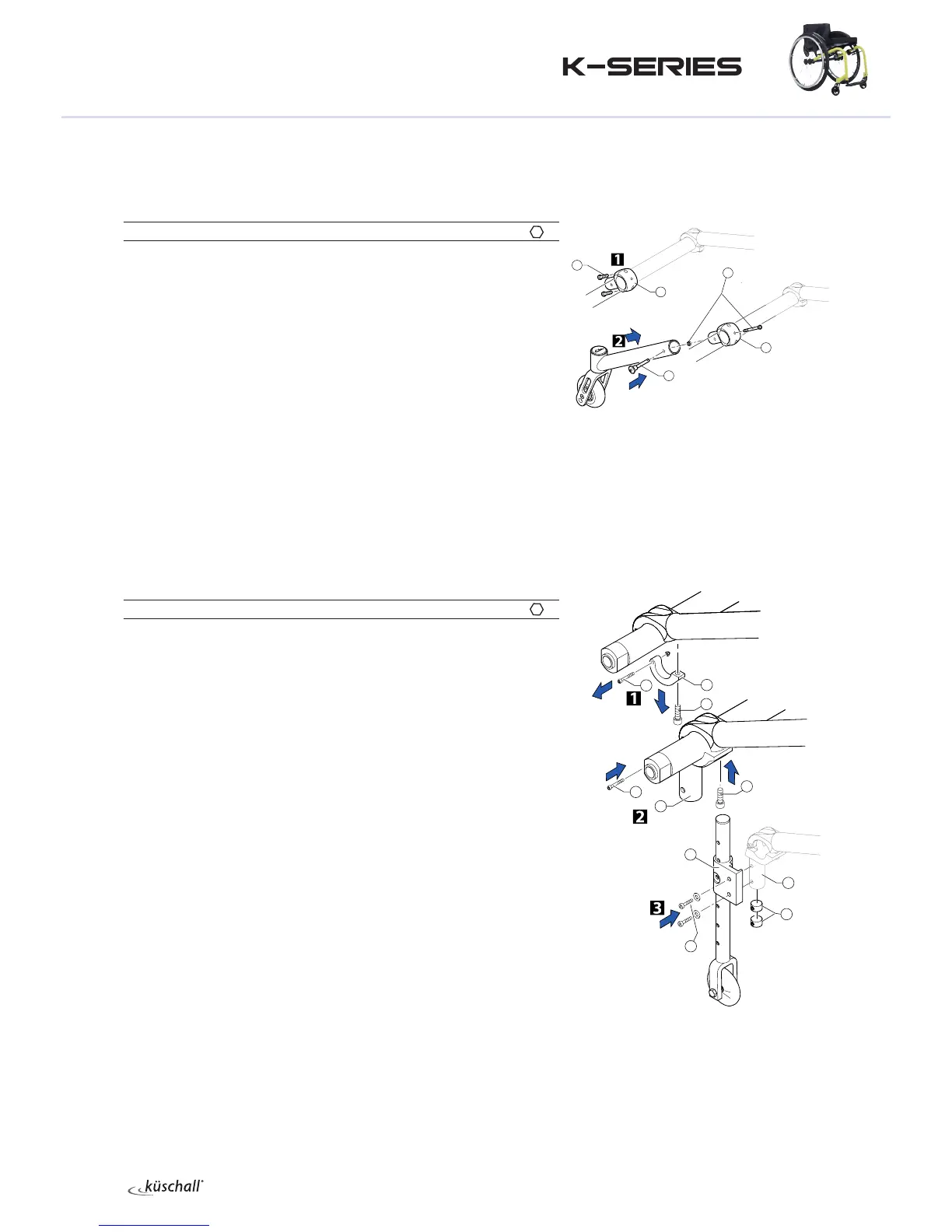

Fitting and adjusting an active antitipper
Diculty:
Tools:
à 3, 5 8
Fit the holder to the axle tube. Here, only lightly tighten the
screws .
Remove the QuickPin , slide the active antitipper over the holder and
reinsert the QuickPin.
Turn the antitipper so that it is the desired distance from the ground.
Carefully remove the antitipper so that the position of the holder
does not change.
Tighten the screws .
For the aluminium axle, not for the Vario-Ax: Once the holder is
correctly positioned, drill into the axle from both sides through the
corresponding hole in the holder and insert the screw connection .
i
The active antitipper cannot be tted to the carbon axle.
Transit wheels
Fitting and adjusting transit wheels
Diculty:
Tools:
à 3, 5 8
Loosen the screw and the screw connection and remove the lower
part of the axle holder .
Fix the adaptation holder clip with the screw connection and the
screw .
Check that the rear wheels are parallel,
Chap. Rear wheels; ‹Ensuring the rear wheels are parallel›.
Fix the transit wheel using the threaded sleeves and the screws
to the adaptation holder .
Fit a transit wheel on both sides.
1
2
3
5
1
à 7 Nm
à 7 Nm
2
1
3
4
1
2
4
5
6
7
à 13 Nm
à 4 Nm
à 13 Nm
