12.) Power Switch -
14.) SPEAKER -
15.) LINEOUT -
T
This jack is used to deliver the amplified signal to an external speakers.
Total minimum load is 8 ohms. Do not use a load lower than 8 ohms. Damage to the amplifier
may result. The amplifier’s internal speaker is disconnected when this jack is used.
This is a 2-conductor 1/4” line output jack. This will allow an external
amplifier or mixing board to be supplied with the signal from this amp.
16.) HEADPHONE -
17.) CD/TAPE INPUT -
This is a 3-conductor stereo jack. The amplifier’s internal speaker is
disconnected when this jack is used.
This is a 3-conductor 1/4” jack that allows playback from a Compact
Disc or Tape player.
his switch turns on and off the AC power to the amp.
- AC power cord can be removed for easy storage and
replacement if damaged. Insert the AC cord (provided) firmly into the AC receptacle. NOTE:
Replace the AC power cord if protective jacket is damaged or ground pin is damaged or
removed.
The fuse is located in a fuse tray just below the receptacle. Replace only with same size and
type. For your convenience, a spare fuse is located inside the fuse tray toward the front. To
replace fuse, remove AC power cord. Remove fuse tray by pulling the tab located above the
fuse symbol away from the receptacle.
13.) AC Power Cord Receptacle/Fuse

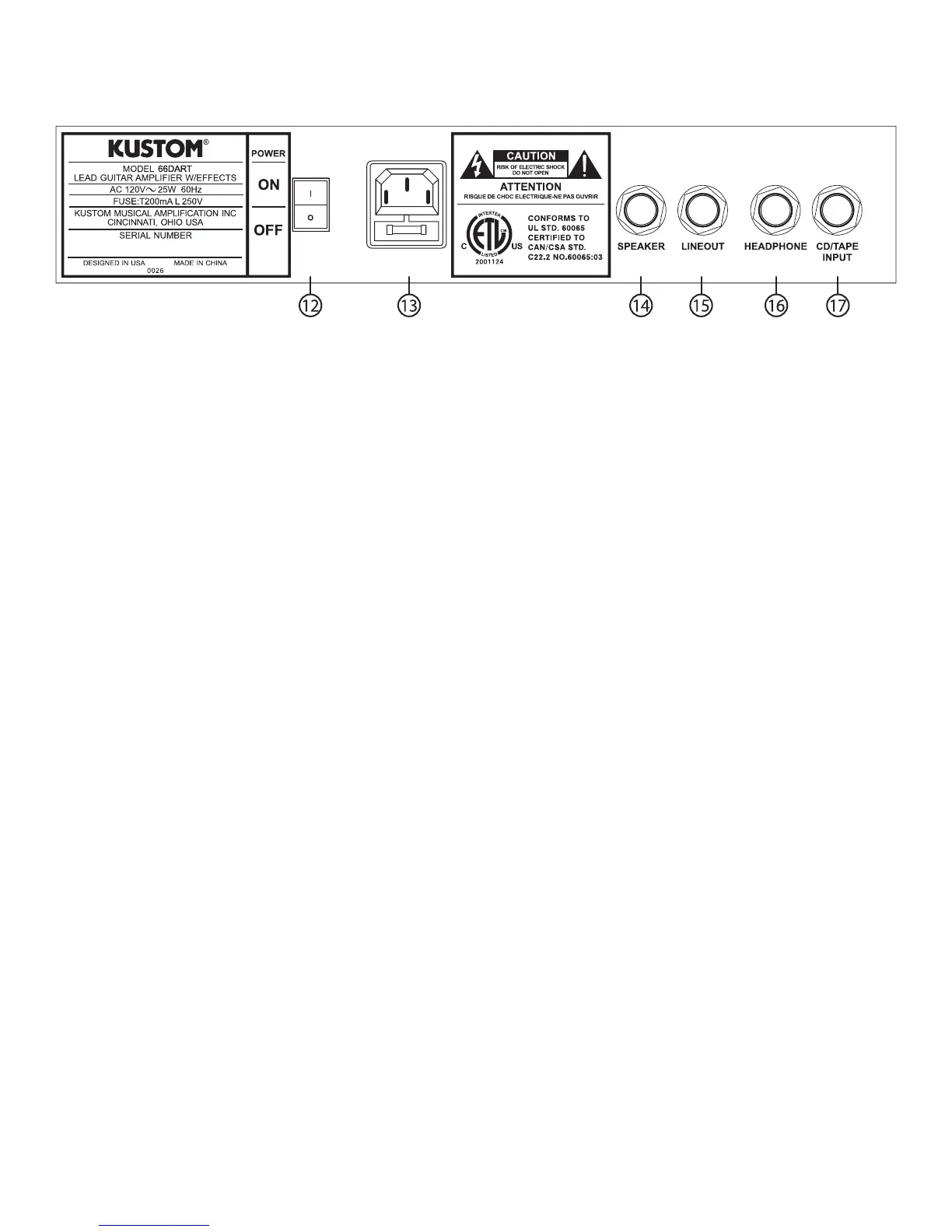

66 DART Back Panel™
5
