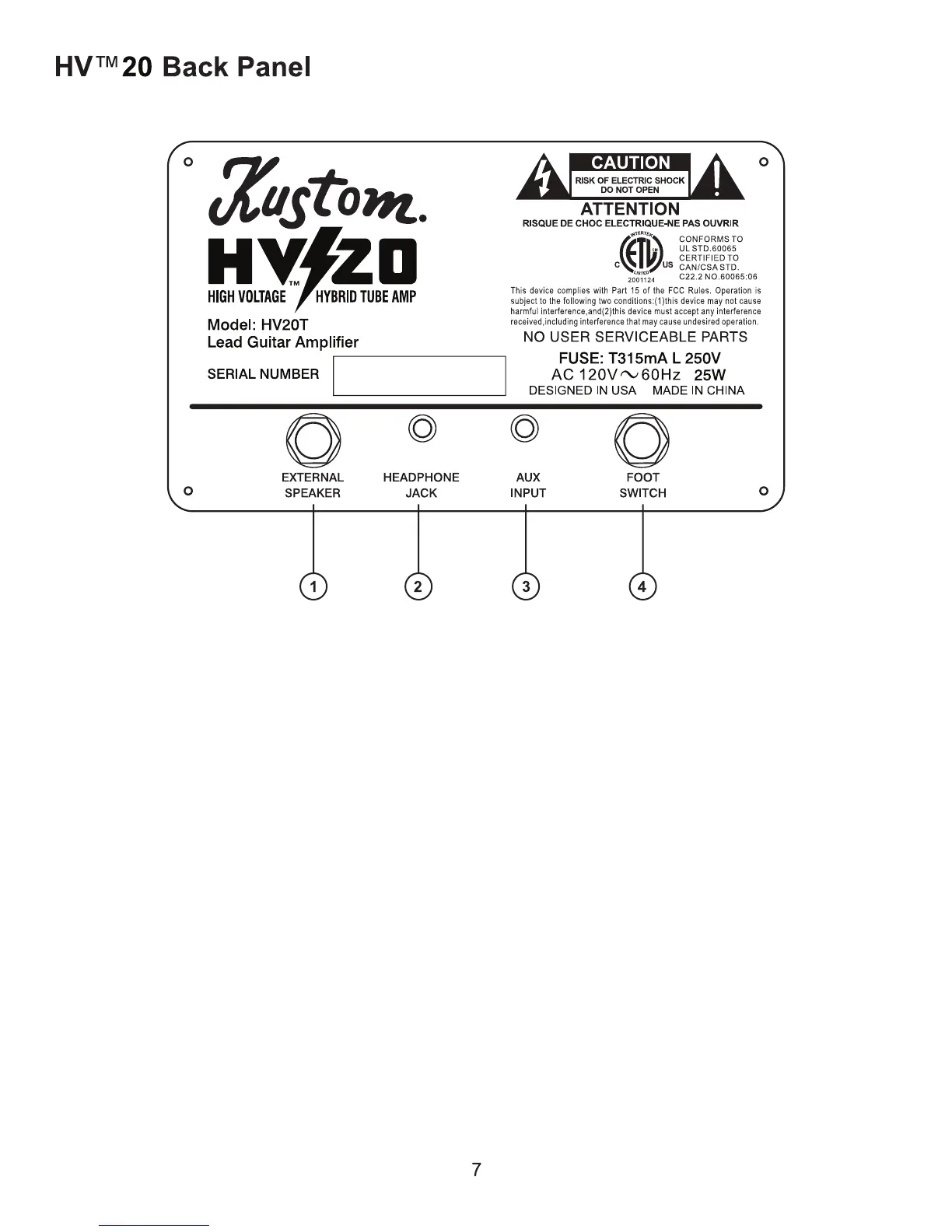

Jacks located on chassis bottom in sequence shown above
1.) External Speaker - this is a 2-conductor, 1/4” speaker output jack. Rating is 8 ohms minimum. For
full power, use an 8-ohm speaker load. Higher impedance loads will result in lower power levels to the
speaker. The signal path to the internal speakers is disconnected when using this jack.
2.) Headphone Jack - this is a 3-conductor stereo jack. The amplier’s internal speaker is disconnected
when this jack is used.
3.) Aux Input - this is a 3-conductor stereo jack that allows playback from a compact disc, tape player,
or other media audio device. The volume is controlled by the device plugged into this jack.
4.) Foot Switch - this 1/4” stereo jack connects a foot-switch to the amplier. The tip selects the
rhythm or lead channel. The ring selects the effects active/off. This foot-switch is not included with the
amplier. Kustom model KAC-FS201 is recommended to enjoy all the features.
*Power Switch on bottom rear chassis* - this switch turns on and off the AC power to the amp.
