No-Transmit Zones
Identify the Elevation Range
Now you need to determine the necessary elevation range for the no-
transmit zone(s). You will need to enter, in ascending order, the
beginning and ending elevations that define the outer boundaries of
the zone.
NOTE: Each no-transmit zone must span at least 5º. Therefore, be sure to set
beginning and ending elevations at least 5º apart.

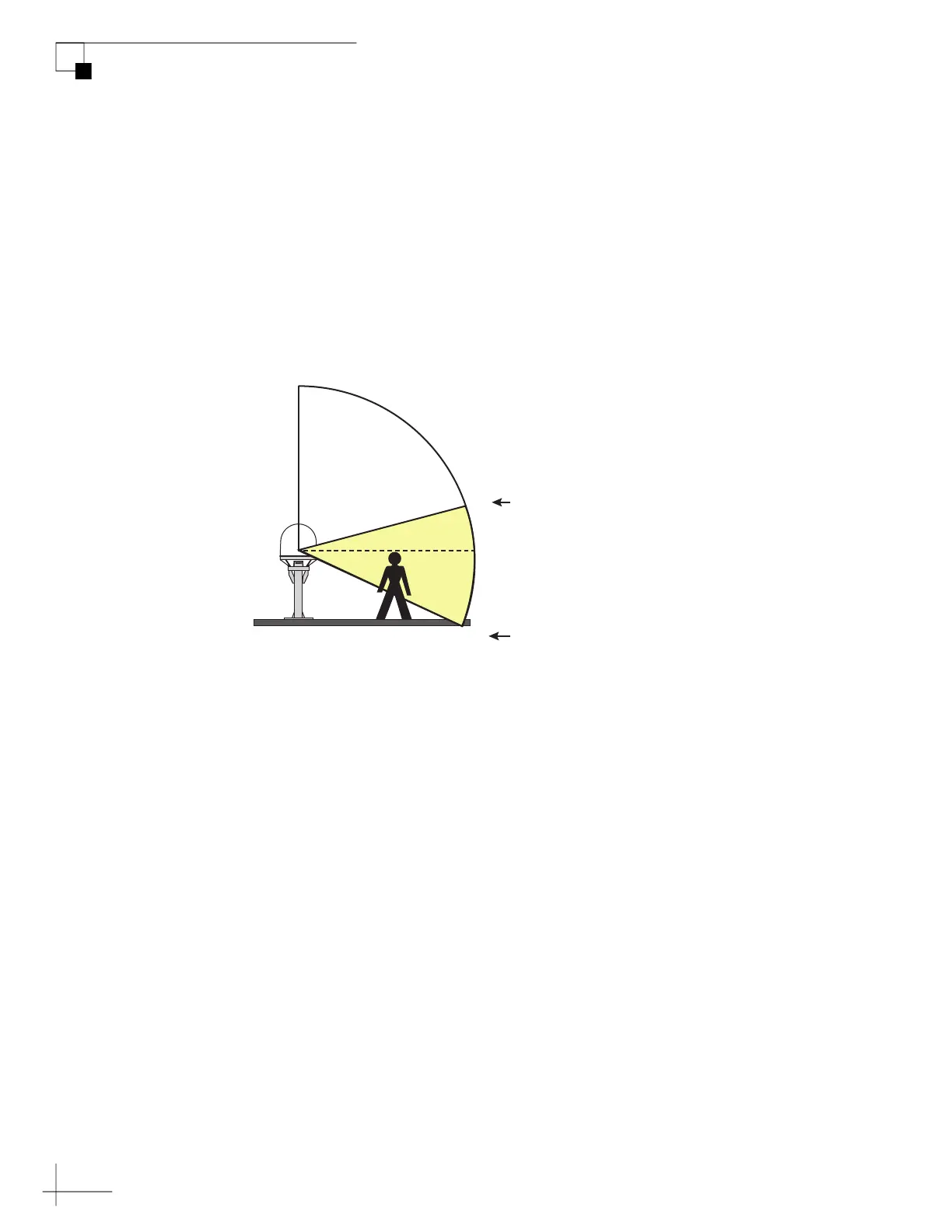

Figure 4-4 Beginning and Ending Elevations Defining a No-Transmit Zone (Example)
0°
-25°
90°
15°
Beginning Elevation
Ending Elevation
No-Transmit Zone
(Example)
