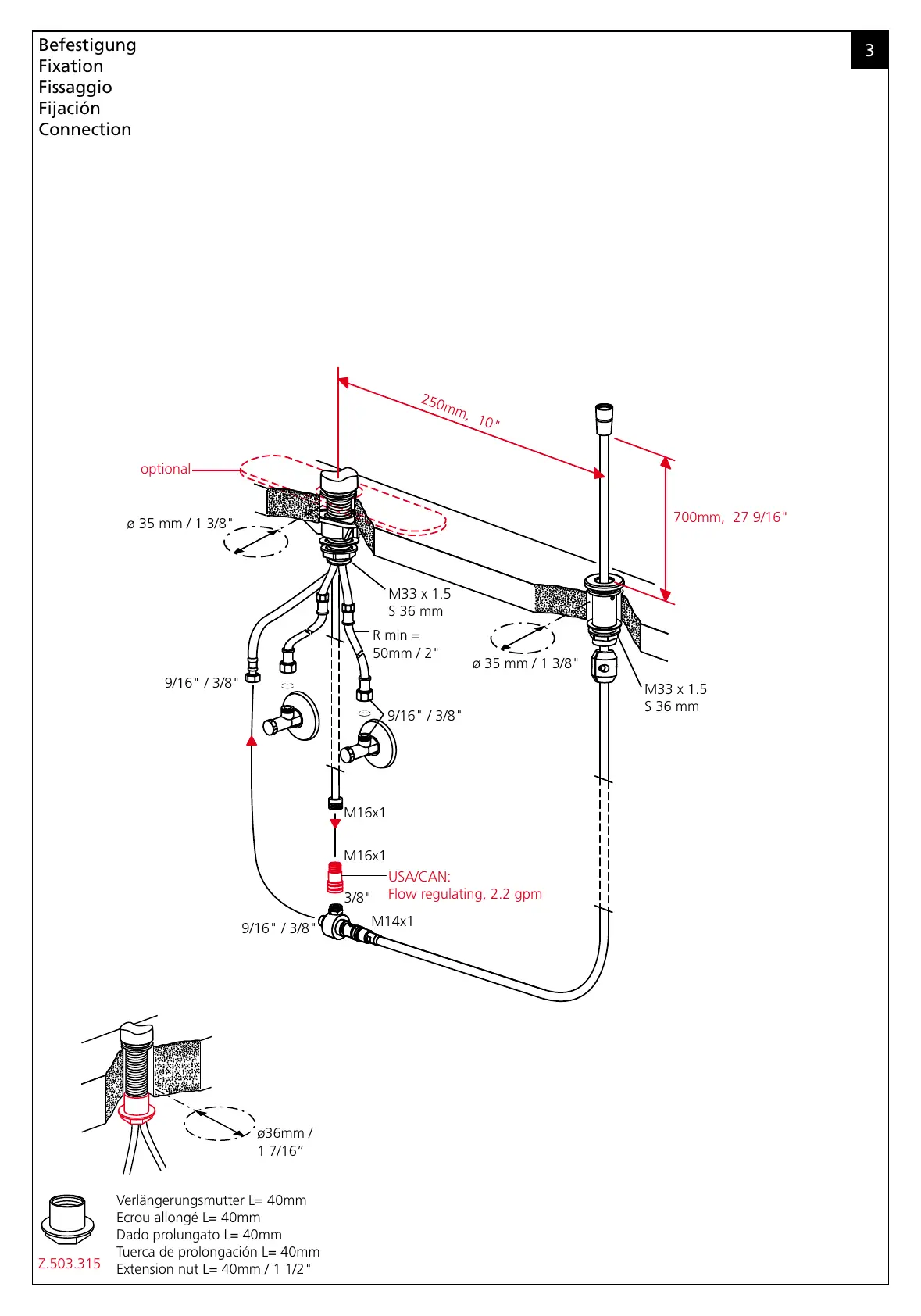

KWC DOMO - Installation and Initial Operation; Connection and Mounting Diagram

3
Befestigung
Fixation
Fissaggio
Fijación
Connection
250mm, 10"
700mm, 27 9/16"
3/8"
M16x1
M16x1
M14x1
9/16" / 3/8"
9/16" / 3/8"
optional
M33 x 1.5
S 36 mm
ø 35 mm / 1 3/8"
M33 x 1.5
S 36 mm
ø 35 mm / 1 3/8"
R min =
50mm / 2"
9/16" / 3/8"
USA/CAN:
Flow regulating, 2.2 gpm
Z.503.315
Verlängerungsmutter L= 40mm
Ecrou allongé L= 40mm
Dado prolungato L= 40mm
Tuerca de prolongación L= 40mm
Extension nut L= 40mm / 1 1/2"
ø36mm /
1 7/16”
