Kwikee 22 Series - Page 2

Identication Information
Electric Steps #888
Page 2

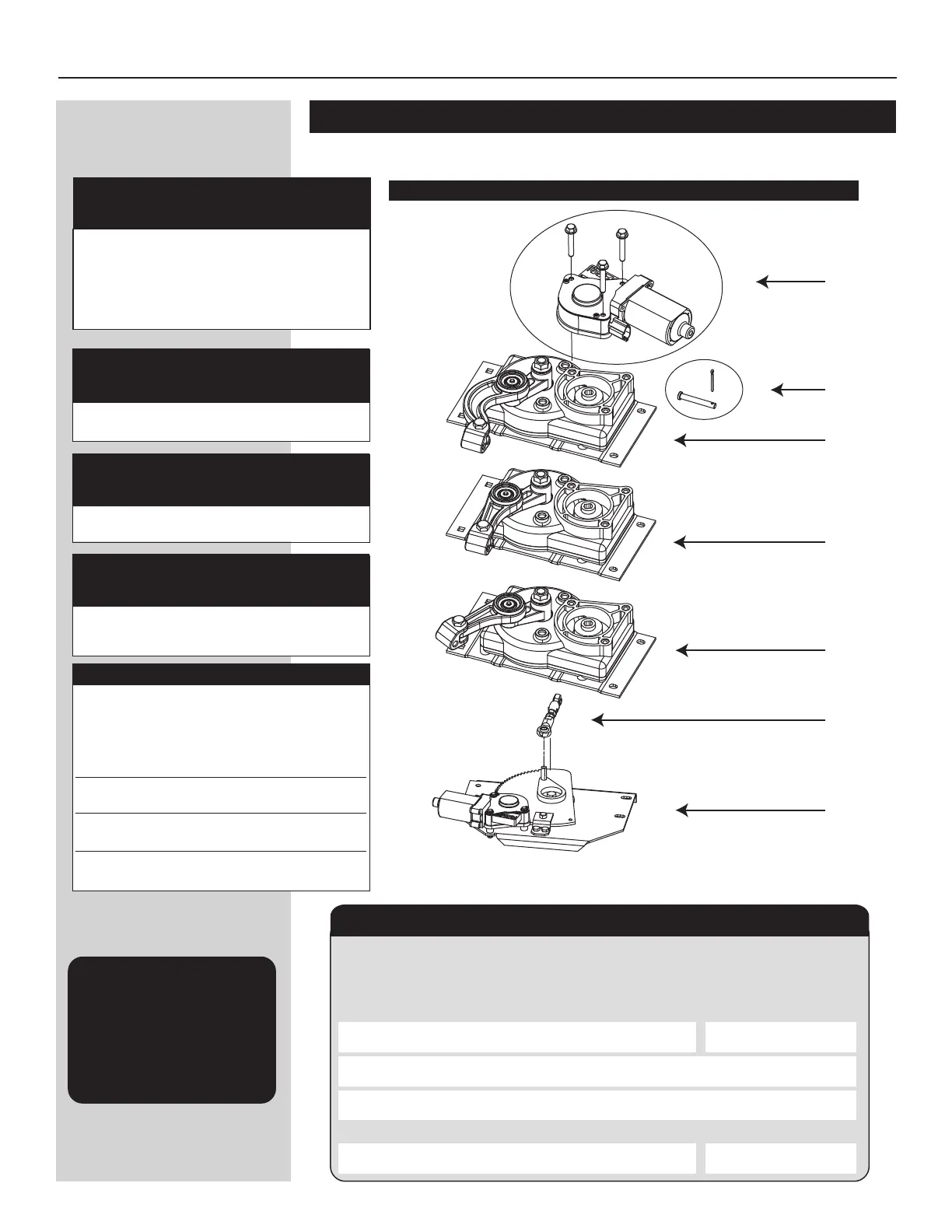

Motor Assembly Drawing and Parts Key Numbers
CHART 1
Replacement Parts Kits for Series Steps
22, 23, 28A*, 30, 32, 33, 34, 35, 36, 38, and 40
Parts Description Replacement
Key # Kit Part #
________________________________________________________________
1 Motor and screws 214 1101428
________________________________________________________________
2 Cotter and Clevis pin 905205000
________________________________________________________________
3 Gear/Linkage 'A' Curved 1101425
________________________________________________________________
Step Frame only 9080**000
**insert 2 digit Step Series number
________________________________________________________________
Step Light 909004000
Replacement Parts Kits for
Series Steps 28, 31, 37, and 39
As shown in CHART 1 except for the following:
Parts Description Replacement
Key # Kit Part #
________________________________________________________________
4 Gear/Linkage 'B' Straight 1101426
Replacement Parts Kits for
Series Steps 26
As shown in CHART 1 except for the following:
Parts Description Replacement
Key # Kit Part #
________________________________________________________________
5 Gear/Linkage 'C' Straight 1101427
Replacement Parts Kits for
Series Steps 24 and 25
As shown in CHART 1 except for the following:
Parts Description Replacement
Key # Kit Part #
________________________________________________________________
6 Link/Assembly 24/25 3380050
________________________________________________________________
7 Motor Table 24/25 3392152
Replacement Parts All Step Series
DOOR SWITCHES
Description Replacement Part #
(Black, Open)
Magnetic, small rectangular 905323000
3/4" core round 905324000
Magnetic, large rectangular 905326000
Magnetic, 3/8" core round 905327000
Plated plunger switch 905328000
ROCKER STYLE POWER SWITCH
Description Replacement Part #
For all fully automatic steps 905305000
SELF-CENTER ROCKER SWTICH
Description Replacement Part #
Steps NOT equipped with control unit 905316000
CONTROL
Description Replacement Part #
Control with step lockout 909510000
Replacement part numbers for steps equipped with older style motor/gear box
are available online at: www.kwikee.com See 'Downloadable Documents'
STEP
IDENTIFICATION
AND
REPLACEMENT
PARTS
INFORMATION
FILL OUT AND SAVE WITH VEHICLE RECORDS
In the event that servicing the step becomes necessary, the information that you supply below will
improve service response time. The Step Series number, Serial number, and Control Unit numbers
are on the identification labels attached to the control unit and the underside of the step, near the
motor. Please take a moment to record this information:
CONTROL UNIT Complete the following only if your step is equipped with Control Unit.
Step Serial #
Year / Make / Model of RV
Date of Purchase
Step Series #
Control Unit Serial # Control Unit #
To determine replacement parts, refer to the chart for your Series Step.
1
2
3
4
5
6
7
