Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]

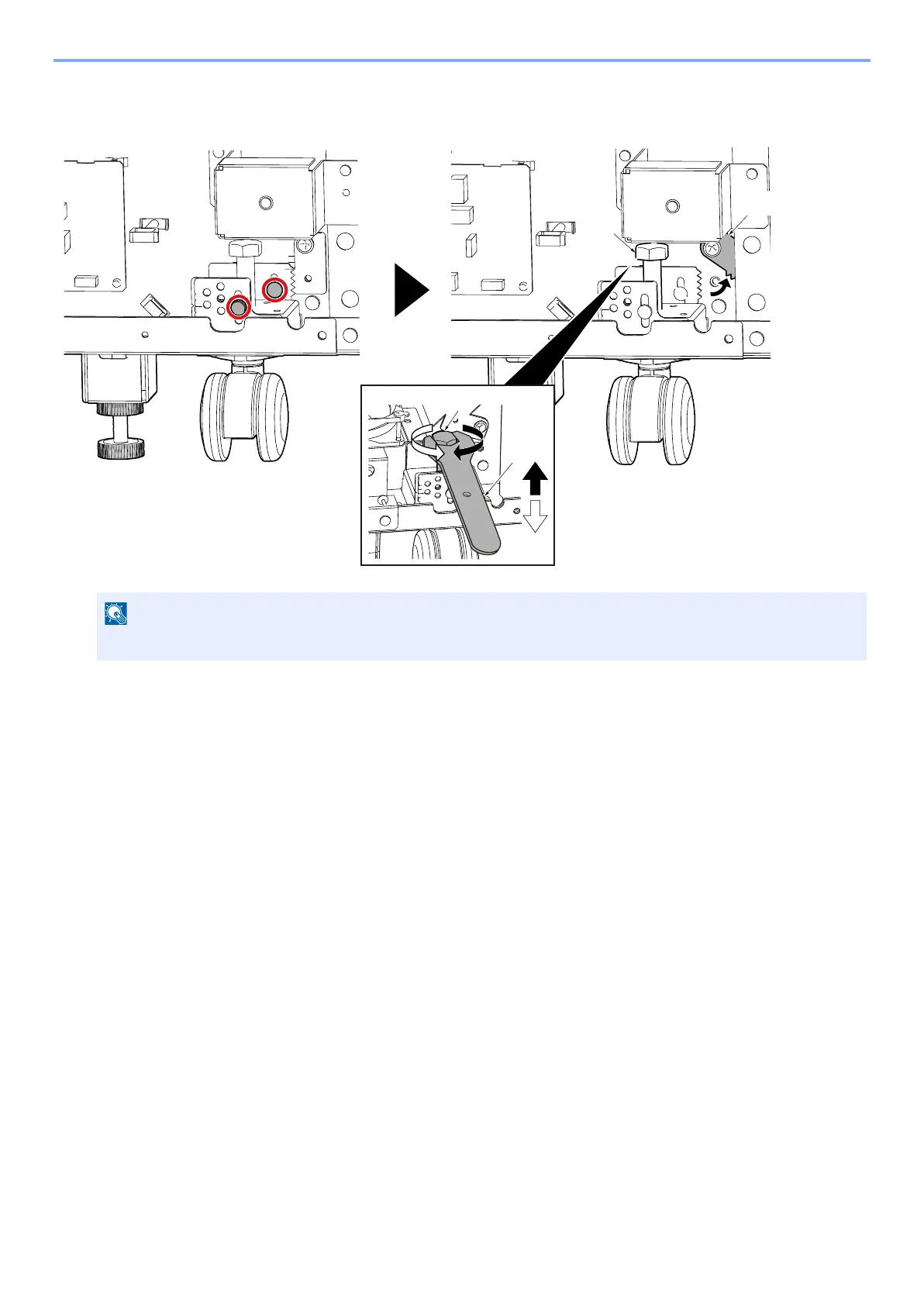

4 Loosen screws (Screw x2). Remove stopper [A] by rotating it. Turning the bolt [C] clockwise with wrench [B]
makes DE unit higher and counterclockwise makes it lower.
NOTE
• height can be adjusted by 2 steps higher and lower in 3.5 mm pitch.
[C]
[C]
[B]
[A]
