FS-9120DN/9520DN
2-1-1
2-1-1 Paper feed section
The paper feed section consists of the primary feed and secondary feed subsections. Primary feed conveys paper from
the upper cassette, lower cassette or MP tray to the left and right registration rollers, at which point secondary feed takes
place and the paper travels to the transfer section in sync with the printing timing.
Each cassette consists of a lift driven by the lift motor and other components. Each cassette can hold up to 500 sheets of
paper. Paper is fed from the cassette by the rotation of the forwarding pulley and paper feed pulley. The separation
pulley prevents multiple sheets from being fed at one time, via the torque limiter.

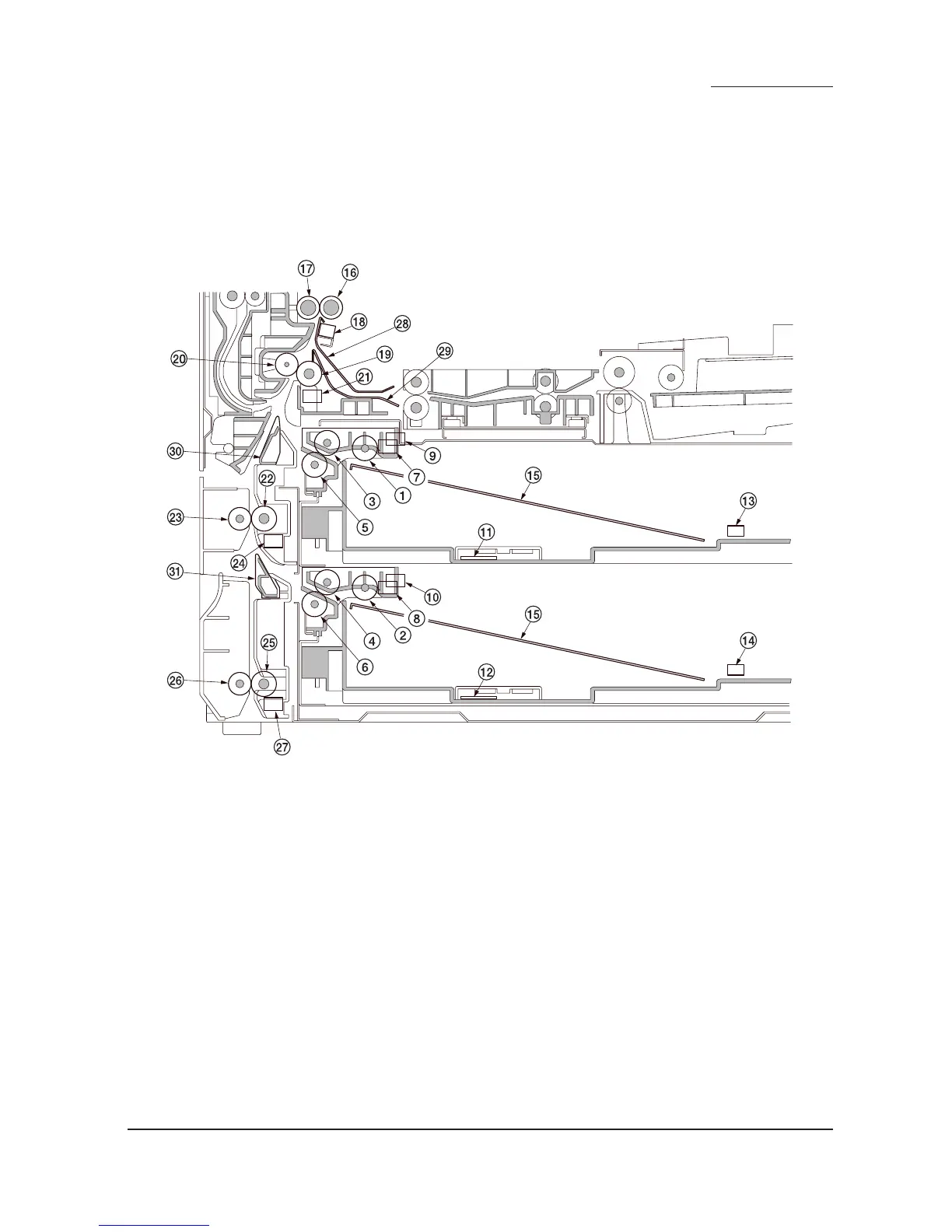

Figure 2-1-1 Paper feed from the upper and lower cassettes
1 Upper forwarding pulley
2 Lower forwarding pulley
3 Upper paper feed pulley
4 Lower paper feed pulley
5 Upper separation pulley
6 Lower separation pulley
7 Upper paper switch (PSW-U)
8 Lower paper switch (PSW-L)
9 Upper lift limit switch (LICSW-U)
0 Lower lift limit switch (LICSW-L)
! Upper paper width switch (PWSW-U)
@ Lower paper width switch (PWSW-L)
# Upper paper length switch (PLSW-U)
$ Lower paper length switch (PLSW-L)
% Cassette lift
^ Right registration roller
& Left registration roller
* Registration switch (RSW)
( Feed roller 1
) Feed pulley
⁄ Feed switch 1 (FSW1)
¤ Feed roller 2
‹ Feed pulley
› Feed switch 2 (FSW2)
fi Feed roller 3
fl Feed pulley
‡ Feed switch 3 (FSW3)
— Front registration guide
· Paper conveying guide
‚ Vertical paper conveying guide 1
ΠVertical paper conveying guide 2
